Summary of Contents for Blaupunkt Q3000

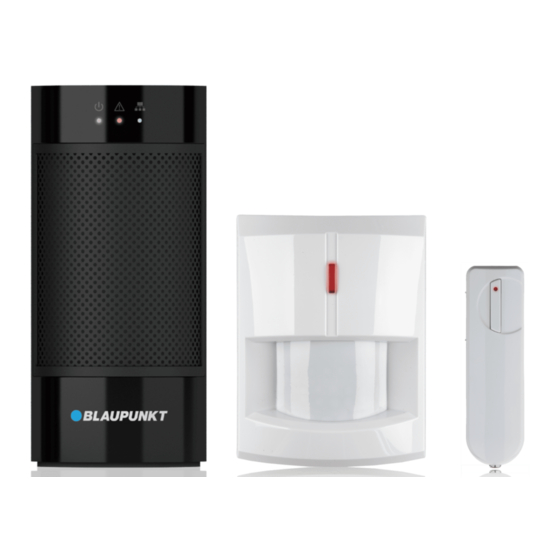

- Page 1 Q3000 Smart Home Alarm Kit Content and Installation Guide...
- Page 2 2. Installation ___________________________________________________________ 4 3. Troubleshooting & Factory Reset ________________________________________ 7 4. Specifications ________________________________________________________ 9 Information and illustrations are subject to change within this document. Blaupunkt reserves the right to alter the specification and product design at anytime without notice.
-
Page 4: Introduction
1. Introduction This document includes information to help you install and maintain your Q3000 alarm system and its accessory devices. For information about registration and system operation using Blaupunkt Home Connect cloud server. Please refer to “Blaupunkt Home Connection User Manual”... - Page 5 IMPORTANT NOTE: The Battery Switch is set to OFF by factory default. Please make sure to turn the switch to ON after connecting AC power to the Control Panel, otherwise the battery will not be charged and the Control Panel will be without back up power when power fails. It takes about 72 hours to fully charge the battery.
- Page 6 Remote Keypad for a secondary system operation platform; Smoke Detector for fire protection; Temperature Sensor for temperature update; and more Power Switch for energy management and Home Automation. For information about more accessory devices, please visit www.blaupunkt.com...
-
Page 7: Installation
Signal Range and Walk Test All accessory devices in the Q3000 alarm kit uses wireless radio protocol to communicate with the Control Panel to save you from the extra labour of wiring the device to panel. All devices in the alarm system have an approximate range of 30 meters in typical domestic environment. - Page 8 Device Location Panning: Door Contact ➢ The Door Contact should be mounted as high as possible. ➢ Do not aim a PIR sensor directly at this door/window. PIR Sensor ➢ Mount the PIR Sensor at 1.9-2m height for best performance. When mounted at 2m height, the PIR Control Panel sensor has a range of 12m.
- Page 9 Mounting Door Contact Pull out the plastic battery insulator on the back to activate battery and Door/ Frame power on Door Contact. Window The Door Contact should be mounted on the door/window frame, while the magnet should be mounted on the door/window aligned with the Rib Mark on the Door Contact.
-
Page 10: Troubleshooting & Factory Reset
Control Panel Control Panel Fault Orange LED indicates fault in system, When the LED light up, please login to your Blaupunkt Home Connection Server account to check fault events. The possible fault events include: Control Panel / Devices low battery: -- Change device batteries or charge Control Panel battery accordingly. - Page 11 Factory Reset The Factory Reset function will clear all device info and returns all system parameter to default value. After resetting you will need to setup the system by following the instruction in server user manual. 1. Power down Control Panel by disconnecting AC Power and switching off battery switch. 2.
-
Page 12: Specifications
4. Specifications All Devices Environmental Condition -10°C to 40°C, relative humidity 85% non-condensing for Control Panel and all devices. Radio Operation Range About 30m in typical domestic installation, range varies depending on building construction, device location, and environment. Control Panel Siren Output 96 dBA sound pressure @ 1m minimum Zones... - Page 13 To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance may void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). Blaupunkt Competence Center Security & Care Azure Security & Care Corporation www.blaupunkt.com 6F., No.1, Lane 250, Sinhu 2nd Rd.,...
