Tylo H1 Manual

Hide thumbs Also See for H1:
Table of Contents

Advertisement

Quick Links

1109
h1
Art. Nr 2900 4139

Advertisement

Table of Contents
loading

Related Manuals for Tylo H1

Summary of Contents for Tylo H1

  • Page 1 1109 Art. Nr 2900 4139...

  • Page 3: Table Of Contents

    Contents Installation instructions Wiring diagram Operating instructions for h1 Explanation of symbols Initial set-up process Start Setting the desired bathing temperature Setting the desired level of humidity (Combi Compact only) Drying mode (Combi Compact only) Setting the desired start time...

  • Page 4: Wiring Diagram

    (figure 2). This seal should be fitted if the h1 is to be used in a steam room or a humid environment. Screw the mounting plate into place at a suitable location, making sure that the electric cables pass through the opening.

  • Page 5: Operating Instructions For H1

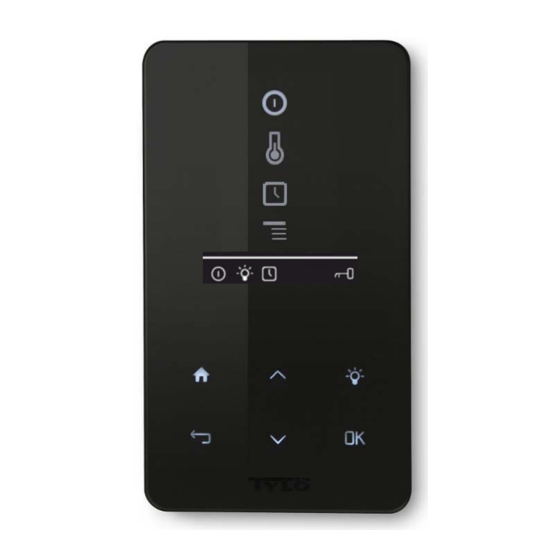

    Home – Returns you to the basic menu (figure 8 or 9) Indicates that the sauna/steam generator is on Indicates that h1 is programmed to start at some later point in time Indicates that the lighting is on Indicates that the panel is locked Humidity (Combi Compact only) –...

  • Page 6: Initial Set-Up Process 14

    Initital set-up process When activating h1 for the very first time, it is necessary to program a number of basic settings: Set the region (Europe, USA, Other). Use the Up and Down arrows and press OK to confirm your selection.

  • Page 7: Setting The Desired Level Of Humidity (Combi Compact Only)

    Setting the desired level of humidity (Combi Compact only) Press the Up or Down arrow to highlight the humidity symbol (16) and press OK. Set the desired level of humidity on the scale that runs from 0–10: 0 = a dry sauna, 10 = maximum humidity.

  • Page 8: Settings Menu

    Under the Settings menu are a number of extra functions. These are designed to make troubleshooting easier and can be used to set certain parameters. It is also possible to use this menu to reset the h1 panel to the factory default setting. There are the following sub- menus: Status- shows current temperature and time Time –...

  • Page 9: Display 17

    Display Sleep – Enter the length of time (in seconds) the control panel remains inactive before the display switches off. Automatic key-lock – Enter whether or not the automatic key-lock is to be activated (current status is displayed) and the length of time before the key-lock is activated.
