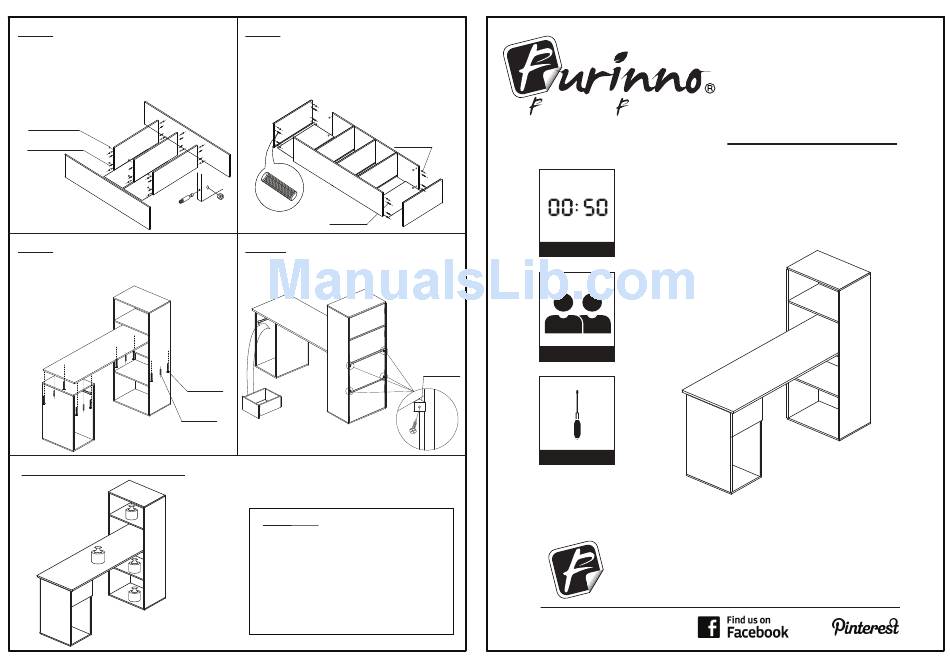

Furinno FNAL-11057 Assembly Instruction

STEP 7
7.1 Attach Tall Cabinet Panel(L),(P),(Q)
using Cam-Lock Screw/Nut(6)and Long
Wood Dowel(4).
7.2 Slide in Back Panel(S),(T)and attach
Panel(M)to the unit.
(6)x 12pcs
L
(4)x 12pcs
P
Q
P
T
S
M
STEP 9
Attach Table Panel(U)to Panel(H),(Q)using
Flat Head Screw(3)and Short Wood Dowel(8).
N
P
M
Q
U
P
H H
(3)x 8pcs
O
(8)x 4pcs
Recommended Maximum Weight
20
50
20
20
*Unit in Pound(lbs)
STEP 8
8.1 Slide in Panel(T)to L/R Panel(L,M)and
attach with Bottom Panel(O)using Cam-Lock
Screw/Nut(6)and Long Wood Dowel(4).
8.2 Repeat Step 8.1 with Panel(R),(N).
O
(6)x 8pcs
T
P
L
Q
P
M
R
N
(4)x 8pcs
STEP 10
Attach drawer and L-Support/Screw(7)to the
completed unit,as shown.
R
S
(7)x 4pcs
T
T
T
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
its Space. its Budget
Approx. 50 minutes
Recomm. 2 Person
Tool Required
Customer Service
Tel/Fax: 281.500.9372
Toll Free: 773.299.8111 (Mon - Fri 9am - 5pm)
Email: support@furinno.com
www.furinno.com
Assembly Instruction
Furinno Boyate Integrated Computer
Desk Bookshelf
FNAL-11057
MODEL :
DIMENSION : 47.2"(W) x 47.2"(H) x 20.1"(D)
FNAL1105720140411
