STEP 5
Attach Upper Shelf Panel(H),(I)using
Screw(6).
(6)x 4pcs
I
H
H
STEP 7
Attach both completed units in Step 6
and Step 4 using Cam-Lock Screw/Nut(3).
Arrow on Cam-Lock
Nut should be
G
pointing towards
H
hole.
(3)x 8pcs
H
G
A
Recommended Maximum Weight
40
*Unit in Pound(lbs)
STEP 6
Attach Upper Panel(G),(K)with completed
unit in Step 5 using Screw(6).
(6)x 16pcs
K
G
I
K
K
H
G
K
H
STEP 8
8.1 Insert Shelf Support(7)to Panel(H)and
attach with Panel(J).
8.2 Cover Stickers(5)on Screw(6).
(7)x 4pcs
H
H
J
A
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
its Space. its Budget
Approx. 30 minutes
Recomm. 2 Person
Tool Required
Customer Service
Tel/Fax: 281.500.9372
Toll Free: 773.299.8111 (Mon - Fri 9am - 5pm)
Email: support@furinno.com
www.furinno.com
Assembly Instruction
Furinno Botaye Computer Desk
w/Built-in Bookshelf
FNAL-11081
MODEL
:
DIMENSION :
19.7"(W) x 40.8"(H) x 9.5"(D)
FNAL1108120140414
Advertisement
Related Manuals for Furinno FNAL-11081
Summary of Contents for Furinno FNAL-11081

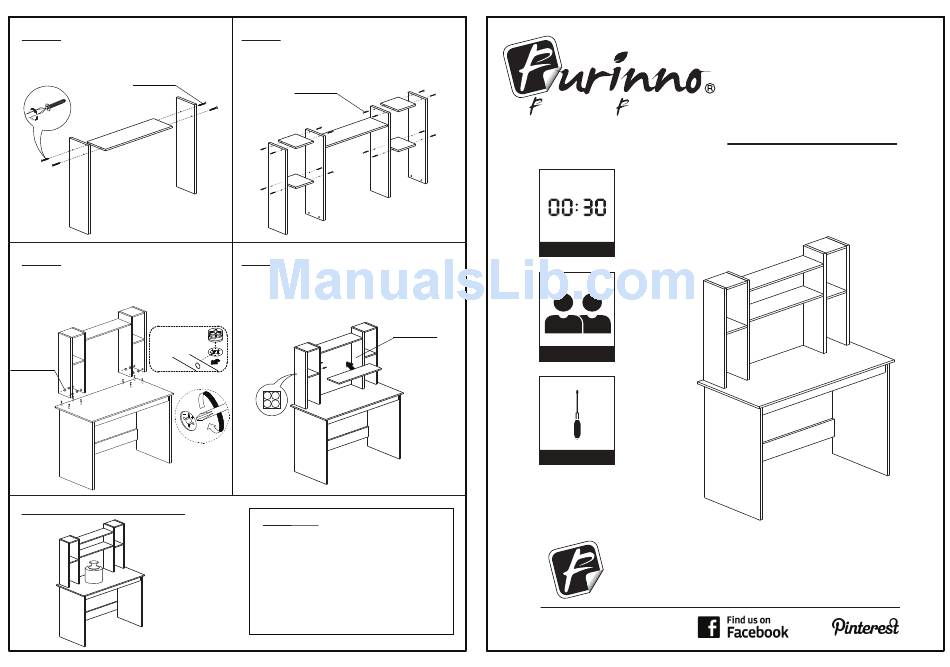

- Page 1 Attach Upper Panel(G),(K)with completed Screw(6). unit in Step 5 using Screw(6). (6)x 4pcs (6)x 16pcs its Space. its Budget Assembly Instruction Furinno Botaye Computer Desk w/Built-in Bookshelf FNAL-11081 MODEL DIMENSION : 19.7”(W) x 40.8”(H) x 9.5”(D) Approx. 30 minutes STEP 7...
