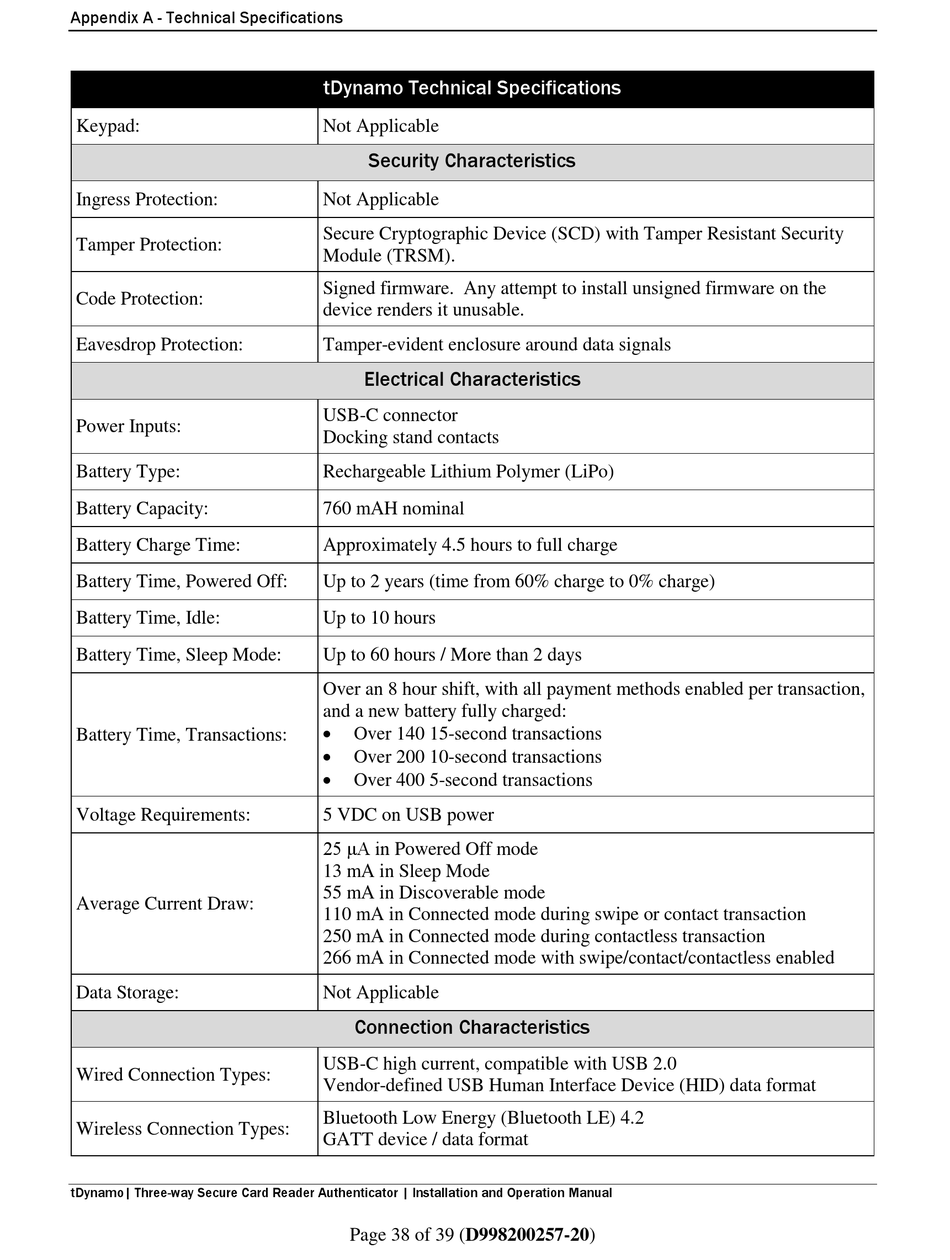

Appendix A - Technical Specifications
Keypad:
Ingress Protection:
Tamper Protection:
Code Protection:
Eavesdrop Protection:
Power Inputs:
Battery Type:
Battery Capacity:
Battery Charge Time:
Battery Time, Powered Off:
Battery Time, Idle:
Battery Time, Sleep Mode:
Battery Time, Transactions:
Voltage Requirements:
Average Current Draw:
Data Storage:
Wired Connection Types:
Wireless Connection Types:
tDynamo| Three-way Secure Card Reader Authenticator | Installation and Operation Manual
tDynamo Technical Specifications
Not Applicable
Security Characteristics
Not Applicable
Secure Cryptographic Device (SCD) with Tamper Resistant Security
Module (TRSM).
Signed firmware. Any attempt to install unsigned firmware on the
device renders it unusable.
Tamper-evident enclosure around data signals
Electrical Characteristics
USB-C connector
Docking stand contacts
Rechargeable Lithium Polymer (LiPo)
760 mAH nominal
Approximately 4.5 hours to full charge
Up to 2 years (time from 60% charge to 0% charge)
Up to 10 hours
Up to 60 hours / More than 2 days
Over an 8 hour shift, with all payment methods enabled per transaction,
and a new battery fully charged:

Over 140 15-second transactions

Over 200 10-second transactions

Over 400 5-second transactions
5 VDC on USB power
25 μA in Powered Off mode
13 mA in Sleep Mode
55 mA in Discoverable mode
110 mA in Connected mode during swipe or contact transaction
250 mA in Connected mode during contactless transaction
266 mA in Connected mode with swipe/contact/contactless enabled
Not Applicable
Connection Characteristics
USB-C high current, compatible with USB 2.0
Vendor-defined USB Human Interface Device (HID) data format
Bluetooth Low Energy (Bluetooth LE) 4.2
GATT device / data format
