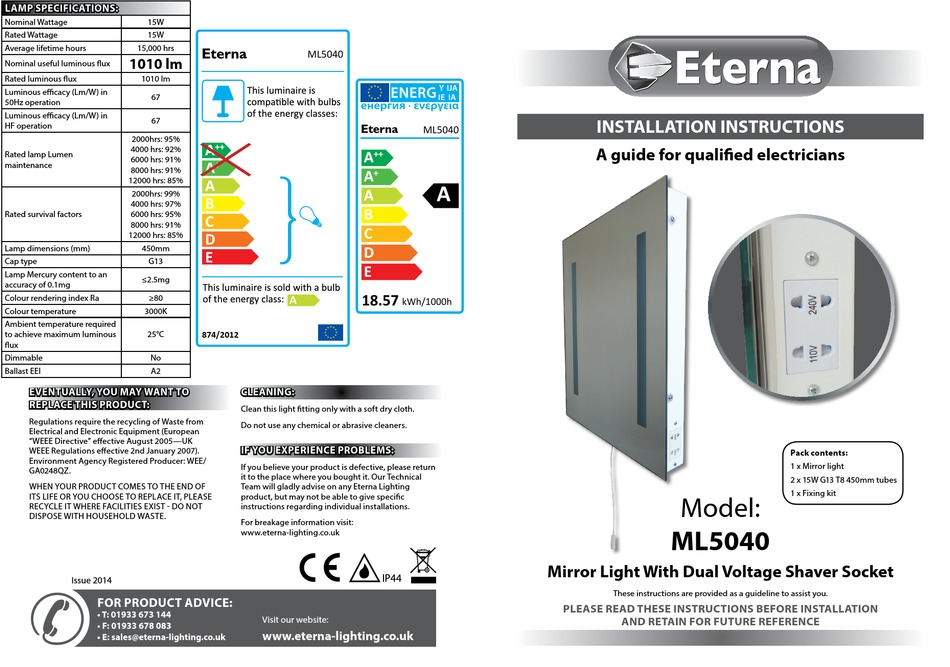

Eterna ML5040 Installation Instructions

LAMP SPECIFICATIONS:
Nominal Wattage 15W
Rated Wattage 15W
Average lifetime hours 15,000 hrs
1010 lm
Nominal useful luminous flux
Rated luminous flux 1010 lm
Luminous efficacy (Lm/W) in
67
50Hz operation
Luminous efficacy (Lm/W) in
67
HF operation
2000hrs: 95%
4000 hrs: 92%
Rated lamp Lumen
6000 hrs: 91%
maintenance
8000 hrs: 91%
12000 hrs: 85%
2000hrs: 99%
4000 hrs: 97%
Rated survival factors 6000 hrs: 95%
8000 hrs: 91%
12000 hrs: 85%
Lamp dimensions (mm) 450mm
Cap type G13
Lamp Mercury content to an
≤2.5mg
accuracy of 0.1mg
Colour rendering index Ra ≥80
Colour temperature 3000K
Ambient temperature required
to achieve maximum luminous 25°C
flux
Dimmable No
Ballast EEI A2
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
"WEEE Directive" effective August 2005—UK
WEEE Regulations effective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF
ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE
RECYCLE IT WHERE FACILITIES EXIST - DO NOT
DISPOSE WITH HOUSEHOLD WASTE.
Issue 2014
FOR PRODUCT ADVICE:
• T: 01933 673 144
• F: 01933 678 083
• E: sales@eterna-lighting.co.uk
MODELNO. ML5040
XXX
18.57
A
874/2012
CLEANING:
Clean this light fitting only with a soft dry cloth.
Do not use any chemical or abrasive cleaners.
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return
it to the place where you bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, but may not be able to give specific
instructions regarding individual installations.
For breakage information visit:
www.eterna-lighting.co.uk
Visit our website:
www.eterna-lighting.co.uk
ML5040
MODELNO.
A
++
A
kWh/1000h

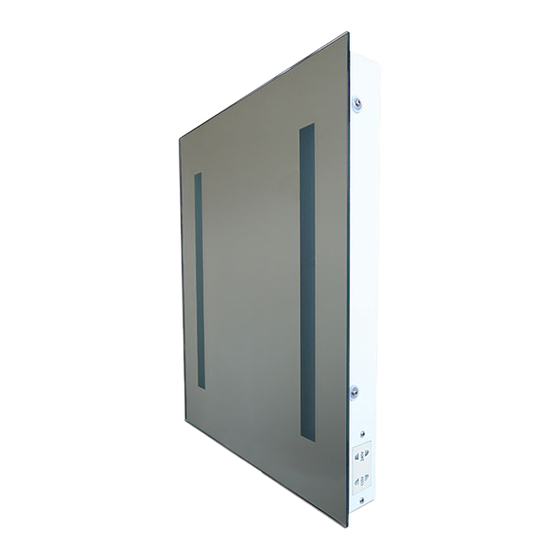

Mirror Light With Dual Voltage Shaver Socket
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
INSTALLATION INSTRUCTIONS
A guide for qualified electricians
Model:
ML5040
These instructions are provided as a guideline to assist you.
AND RETAIN FOR FUTURE REFERENCE
Pack contents:
1 x Mirror light
2 x 15W G13 T8 450mm tubes
1 x Fixing kit
