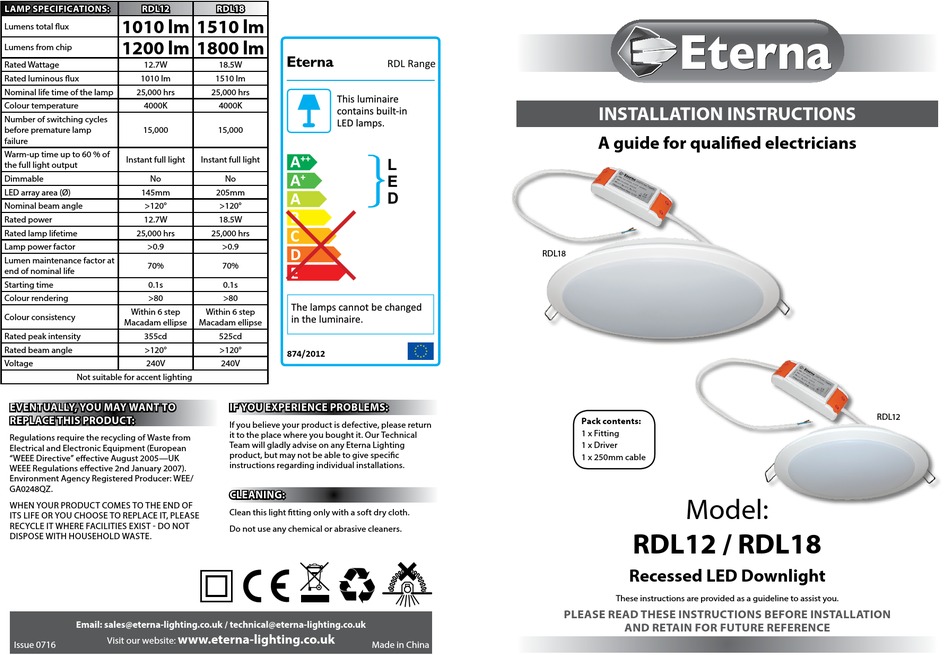

Eterna RDL12 Installation Instructions

LAMP SPECIFICATIONS: RDL12
1010 lm 1510 lm
Lumens total flux
1200 lm 1800 lm
Lumens from chip
Rated Wattage 12.7W
Rated luminous flux 1010 lm
Nominal life time of the lamp 25,000 hrs
Colour temperature 4000K
Number of switching cycles
before premature lamp 15,000
failure
Warm-up time up to 60 % of
Instant full light
the full light output
Dimmable No
LED array area (Ø) 145mm
Nominal beam angle >120°
Rated power 12.7W
Rated lamp lifetime 25,000 hrs
Lamp power factor >0.9
Lumen maintenance factor at
70%
end of nominal life
Starting time 0.1s
Colour rendering >80
Within 6 step
Colour consistency
Macadam ellipse
Rated peak intensity 355cd
Rated beam angle >120°
Voltage 240V
Not suitable for accent lighting
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
"WEEE Directive" effective August 2005—UK
WEEE Regulations effective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF
ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE
RECYCLE IT WHERE FACILITIES EXIST - DO NOT
DISPOSE WITH HOUSEHOLD WASTE.
Email: sales@eterna-lighting.co.uk / technical@eterna-lighting.co.uk
www.eterna-lighting.co.uk
Visit our website:
Issue 0716
RDL18
18.5W
1510 lm
25,000 hrs
4000K
15,000
Instant full light
No
205mm
>120°
18.5W
25,000 hrs
>0.9
70%
0.1s
>80
Within 6 step
Macadam ellipse
525cd
>120°
874/2012
240V
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return
it to the place where you bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, but may not be able to give specific
instructions regarding individual installations.
CLEANING:
Clean this light fitting only with a soft dry cloth.
Do not use any chemical or abrasive cleaners.
Made in China
MODELNO.
RDL Range
RDL18
INSTALLATION INSTRUCTIONS
A guide for qualified electricians
Pack contents:
1 x Fitting
1 x Driver
1 x 250mm cable
Model:
RDL12 / RDL18

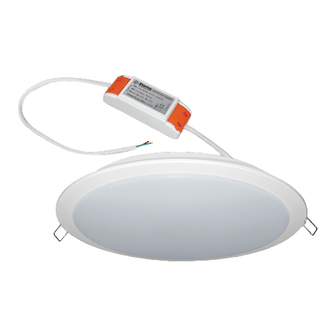

Recessed LED Downlight
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
AND RETAIN FOR FUTURE REFERENCE
RDL12
