Eterna EXITBOXM Series Safety And Installation Manual

Cleaning:
>
Clean this light fitting only with a soft dry cloth
>
Do not use any chemical or abrasive cleaners.
Lamp replacement:
>
Switch off the electricity at the mains.
>
Remove the diffuser.
>
Twist and withdraw the tube.
>
Insert new tube.
>
Restore the power and perform operation check.
>
Replace diffuser.
Replacement lamp type:
Wattage: 8 W
Type: T5 fluorescent tube
Battery replacement:
If after routine operation check, the lamp does not
remain lit for the three hour period, a new battery
pack may be required.
1) Switch off the electricity at the mains.
2) Allow batteries to fully discharge then reconnect
to supply and allow to charge for 24 hours.
Eventually, you may want to replace this light fitting:
When your light fitting and or battery pack come to the end of their life or you choose to
update or upgrade the fitting by replacing it, please do not dispose of it with your normal
household waste, please recycle where facilities exist. When you need to dispose of this
fitting, check with your retailer or local authority for suitable options. New regulations will
encourage the recycling of Waste from Electrical and Electronic Equipment ( European
"WEEE Directive" effective August 2005 ).
If you experience problems:
If your light is defective or develops a fault, please return it to the place where you bought it. You can call our
Helpline for advice. The Helpline will gladly give advice on any aspect of any Eterna Lighting product but may
not be able to give specific instructions regarding individual installations.
If in doubt, consult a qualified electrician.
Help line:
Tel: 01933 673 144 Fax: 01933 678 083
For answers to frequently asked questions ( FAQs ) and other information visit our web-site
www.eterna-lighting.co.uk
3) Test again for 3 hours, if light does not remain lit
change the battery pack as follows:
4) To replace the battery pack, it is necessary to
disconnect the fitting from the mains supply and
remove the fitting from it's installation—see
installation instructions inside.
5) Remove the diffuser.
6) Unplug the battery lead from the circuit board.
7) Remove the two screws that secure the battery
pack in place from the rear of the fitting and lift
the battery pack away from the case.
8) Write current date on the new battery pack.
9) Secure the new battery pack in place.
10) Plug battery pack into circuit board.
11) Re-fit the exit light back into position—see
installation instructions inside.
12) Replace diffuser and end panel.
13) Restore power and allow to charge for 24 hours.
14) Perform full operation check and update test
record.
Replacement battery type:
2.4V Ni-Cad
7030-0621
Email: sales@eterna-lighting.co.uk

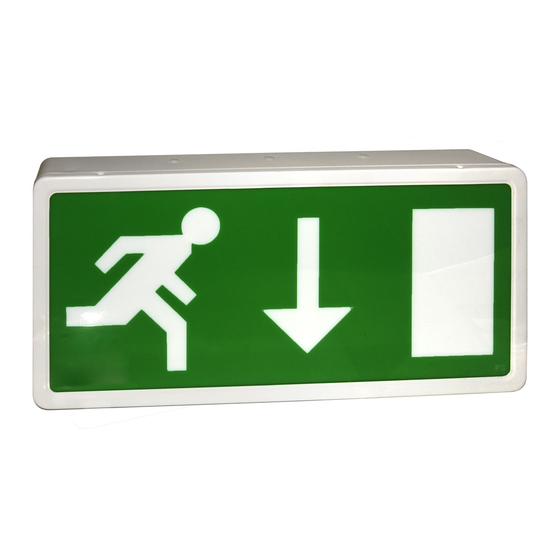

Maintained emergency
exit light 8W
convertible to non-maintained by removing link
Model(s)
EXITBOXM ( EXITBOX 318M )
Specification:
Power
Continuous illumination
Battery
Recharge time
Over-discharge protection
PLEASE READ THESE INSTRUCTIONS BEFORE
INSTALLING YOUR NEW FITTING
- -
PLEASE RETAIN FOR FUTURE REFERENCE
8W
>3 hours
2.4V 4.5Ah
~20 hours
Yes
