Eterna MSCSLEDCR Installation Instructions

MICROWAVE SENSOR SPECIFICATIONS:
PRODUCT MICROWAVE
TYPE MOTION SENSOR
Operating Voltage 220-240VAC 50/60Hz
HF System 5.8GHz CW radar
Transmission Power <0.2mW
Detection Angle 30-150 Degree
Power Consumption <0.5W
Detection Range Max. 10m adjustable
Time Setting 5s-15m
Mounting Indoors, ceiling and wall
Light Control 2-50lux, disable
Working Temp -20 to +60 degree
RED DIRECTIVE
Eterna Lighting Ltd
Microwave Occupancy Sensor
Full declaration available at www.eterna-lighting.co.uk
LAMP REPLACEMENT:
The light source is designed to last the lifetime of the
luminaire.
The light source contained in this luminaire
shall only be replaced by the manufacturer,
service agent or a similar qualified person.
CAUTION, RISK OF ELECTRIC SHOCK.
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
"WEEE Directive" effective August 2005—UK WEEE
Regulations effective 2nd January 2007). Environment
Agency Registered Producer: WEE/GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF
ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE
RECYCLE IT WHERE FACILITIES EXIST - DO NOT
DISPOSE WITH HOUSEHOLD WASTE.
CLEANING:
Clean this fitting only with a soft dry cloth.
Do not use any chemical or abrasive cleaners.
Email: sales@eterna-lighting.co.uk / technical@eterna-lighting.co.uk
www.eterna-lighting.co.uk
Visit our website:
Issue 0517
LED LAMP SPECIFICATIONS:
1250 lm
Luminaire lumens (with diffuser):
1350 lm
Warm White, Cool White, Day-
light White
1300 lm
1700 lm
Lumens from chip (array): Warm
1850 lm
White, Cool White, Daylight
White
1750 lm
1200 lm
Useful lumens (array): Warm
1300 lm
White, Cool White, Daylight
White
1250 lm
Rated Wattage 17W
Rated luminous flux 1200/1300/1250 lm
Nominal life time of the lamp 35,000 hrs
Colour temperature 3100/4200/6400K
Number of switching cycles
15,000
before premature lamp failure
Warm-up time up to 60% of the
Instant full light
full light output
Dimmable No
Nominal beam angle 120°
Rated power 17W
Rated lamp lifetime 35,000 hrs
Lamp power factor >0.88
Lumen maintenance factor at
>0.7
end of nominal life
Starting time <0.1s
Colour rendering >80 Ra
Within 6 step
Colour consistency
Macadam ellipse
Rated peak intensity 520cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Not suitable for accent lighting
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please
return it to the place where you bought it. Our
Technical Team will gladly advise on any Eterna
Lighting product, but may not be able to give specific
instructions regarding individual installations.
Made in China

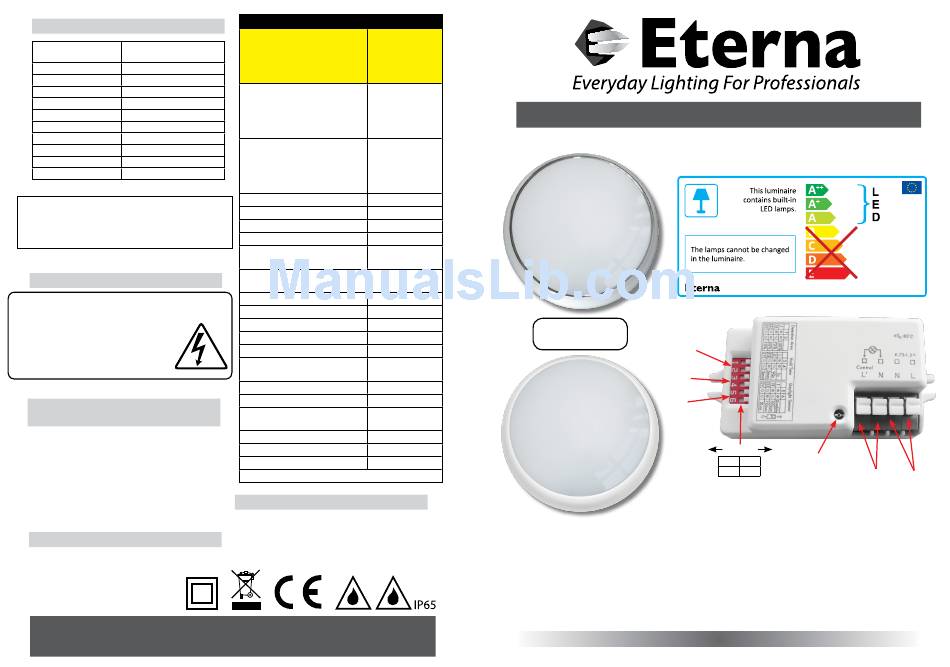

INSTALLATION INSTRUCTIONS
A guide for qualified electricians
Polished Chrome Effect
Pack contents:
1 x LED ceiling fitting
1-2 Detection
Area
3-4 Hold
Time
5-6 Daylight
Threshold
White
Model:
MSCSLEDCR / MSCSLEDWH

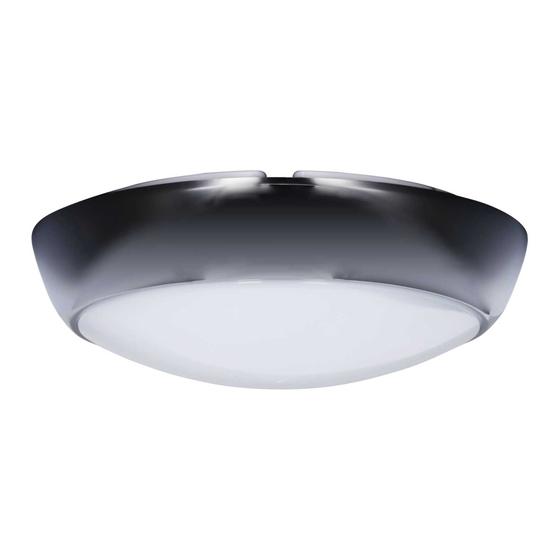

LED Colour Temperature Selectable Ceiling/Wall
Fitting With Microwave Sensor
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
AND RETAIN FOR FUTURE REFERENCE
MSCSLEDCR/WH
MODELNO. 874/2012
Microwave
Sensor
Off / On
Daylight
OFF ON
Sensor


220-240V
Out Control
Power
Supply
