Eterna TAB10PIRWH Installation Instructions

LAMP SPECIFICATIONS:
Lumens total flux
Rated Wattage
Nominal life time of the lamp
Colour temperature
Number of switching cycles
before premature lamp
failure
Warm-up time up to 60 % of
the full light output
Dimmable
LED array dimensions (L/H)
Nominal beam angle
Rated power
Rated lamp lifetime
Lamp power factor
Lumen maintenance factor at
end of nominal life
Starting time
Colour rendering
Colour consistency
Rated peak intensity
Rated beam angle
Voltage
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
"WEEE Directive" effective August 2005—UK
WEEE Regulations effective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF
ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE
RECYCLE IT WHERE FACILITIES EXIST - DO NOT
DISPOSE WITH HOUSEHOLD WASTE.
Email: sales@eterna-lighting.co.uk / technical@eterna-lighting.co.uk
Visit our website:
Issue 0717
PG 6
10W 20W 30W
750 lm 1500 lm 2400 lm
10W 20W 30W
30,000 hrs 30,000 hrs 30,000 hrs
4000K 4000K 4000K
15,000 15,000 15,000
Instant full light Instant full light Instant full light
No No No
40 x 15mm 70 x 15mm 60 x 25mm
120° 120° 120°
10W 20W 30W
30,000 hrs 30,000 hrs 30,000 hrs
>0.5 >0.5 >0.9
70% 70% 70%
<0.5s <0.5s 0.5s
>80 >80 >80
Within 6 step Within 6 step Within 6 step
Macadam ellipse Macadam ellipse Macadam ellipse
231.45cd 450cd 720cd
120° 120° 120°
240V 240V 240V
Not suitable for accent lighting
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return
it to the place where you bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, but may not be able to give specific
instructions regarding individual installations.
1m
www.eterna-lighting.co.uk
10W
Pack contents:
1 x LED floodlight with
PIR complete with 3 core
1.0mm x 0.8m rubber
2
cable and quick fix
mounting bracket
TAB10PIRWH / TAB20PIRWH / TAB30PIRWH
TAB10PIRBK / TAB20PIRBK / TAB30PIRBK

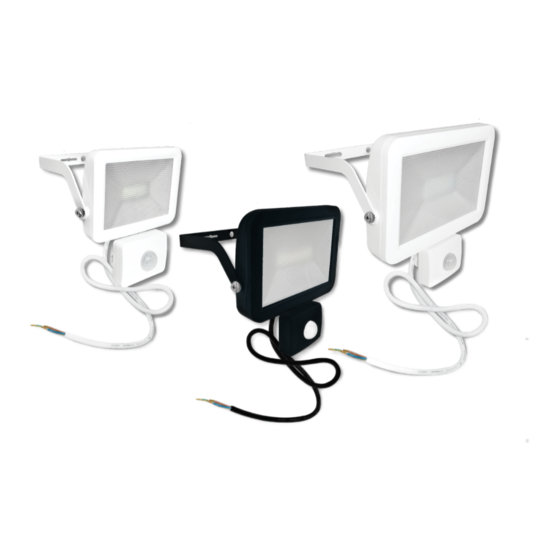

10W / 20W / 30W Tablet LED Floodlights With 120° PIR
Made in China
INSTALLATION INSTRUCTIONS
A guide for qualified electricians
20W
Model:
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
AND RETAIN FOR FUTURE REFERENCE
30W
PG 1
