Eterna TUS6NL Installation Instructions

Eterna TUS6NL Installation Instructions

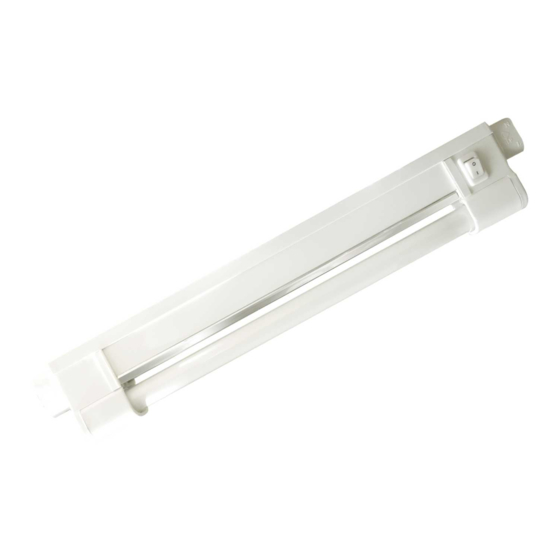

Ultraslim link triphosphor fitting

Advertisement

Quick Links

TUS6NL
LAMP SPECIFICATIONS:
N64/1
Nominal Wattage
6W
Rated Wattage
6W
Average lifetime hours
10,000 hrs
378 lm
Nominal useful luminous flux
Rated luminous flux
378 lm
Luminous efficacy (Lm/W) in
63
50Hz operation
2000hrs: 95%
Rated lamp Lumen
4000 hrs: 92%
maintenance
8000 hrs: 90%
2000hrs: 99%
Rated survival factors
4000 hrs: 97%
8000 hrs: 90%
Lamp dimensions (mm)
220mm
Cap type
T4
Lamp Mercury content to an
<2mg
accuracy of 0.1mg
Colour rendering index Ra
83.2
Colour temperature
3400K
Ambient temperature required
to achieve maximum luminous
25°C
flux
Dimmable
No
Ballast EEI
A2
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
"WEEE Directive" effective August 2005—UK
WEEE Regulations effective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF
ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE
RECYCLE IT WHERE FACILITIES EXIST - DO NOT
DISPOSE WITH HOUSEHOLD WASTE.
Issue 2015
FOR PRODUCT ADVICE:
• T: 01933 673 144
• F: 01933 678 083
• E: sales@eterna-lighting.co.uk
TUS10NL
TUS16NL
TUS20NL
N64/3
N64/5
N64/7
10W
16W
20W
10W
16W
20W
10,000 hrs
10,000 hrs
10,000 hrs
630 lm
1090 lm 1500 lm
630 lm
1090 lm
1500 lm
63
67
75
2000hrs: 95%
2000hrs: 95%
2000hrs: 95%
4000 hrs: 92%
4000 hrs: 92%
4000 hrs: 92%
8000 hrs: 90%
8000 hrs: 90%
8000 hrs: 90%
2000hrs: 99%
2000hrs: 99%
2000hrs: 99%
4000 hrs: 97%
4000 hrs: 97%
4000 hrs: 97%
8000 hrs: 90%
8000 hrs: 90%
8000 hrs: 90%
341mm
468mm
567mm
T4
T4
T4
<2mg
<2.5mg
<2.5mg
82.9
81.8
82.5
3400K
3400K
3400K
25°C
25°C
25°C
No
No
No
A2
A2
A2
CLEANING:
Clean this light fitting only with a soft dry cloth.
Do not use any chemical or abrasive cleaners.
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return
it to the place where you bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, but may not be able to give specific
instructions regarding individual installations.
For breakage information visit:
www.eterna-lighting.co.uk
Made in China
Visit our website:
www.eterna-lighting.co.uk
INSTALLATION INSTRUCTIONS
A guide for qualified electricians
Model:
TUS6NL / TUS10NL / TUS16NL / TUS20NL
Ultraslim Link Triphosphor Fitting
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
AND RETAIN FOR FUTURE REFERENCE
Pack contents:
1 x Ultraslim fluorescent fitting
1 x Triphosphor fluorescent tube
1 x End socket cover
1 x Link&Light 2M mains lead
2 x "F" clip
2 x "U" clip
1 x Fixing pack
