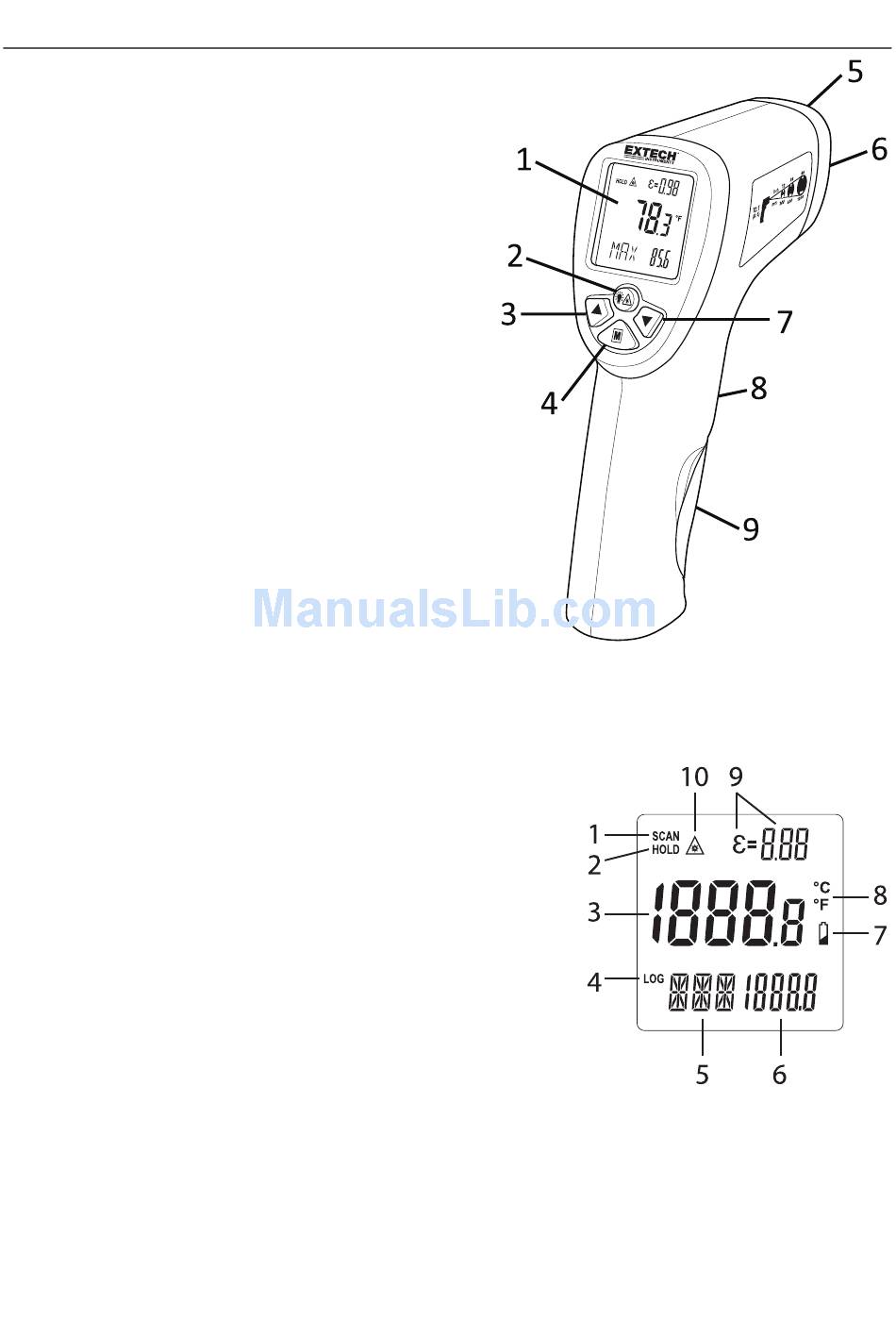

Meter Description
1. Backlit multifunction LCD
2. Laser/Backlight/Log button
3. Up arrow button
4. Secondary display mode button
5. Laser pointer lens
6. IR thermometer lens
7. Down arrow button
8. Trigger (pull and hold to scan surfaces)
9. Battery compartment (9V)
Display Description
1. Measurement Scan mode. The icon flashes while the trigger is pulled. The displayed reading
represents the temperature of the scanned surface
2. Data hold mode. Reading is held after trigger is released
3. Primary display. Surface temperature reading
4. Datalogger mode
5. Secondary display mode icons (EMS, MAX, MIN, DIF,
AVG, HAL, LAL)
6. Secondary Display value
7. Battery status icon. Flashes when battery voltage is
critically low.
8. Temperature units (selectable)
9. Emissivity. Selectable from 0.10~1.00
10. Laser pointer icon. Appears when laser is enabled
3
IR270‐en‐GB_V1.0 12/17
