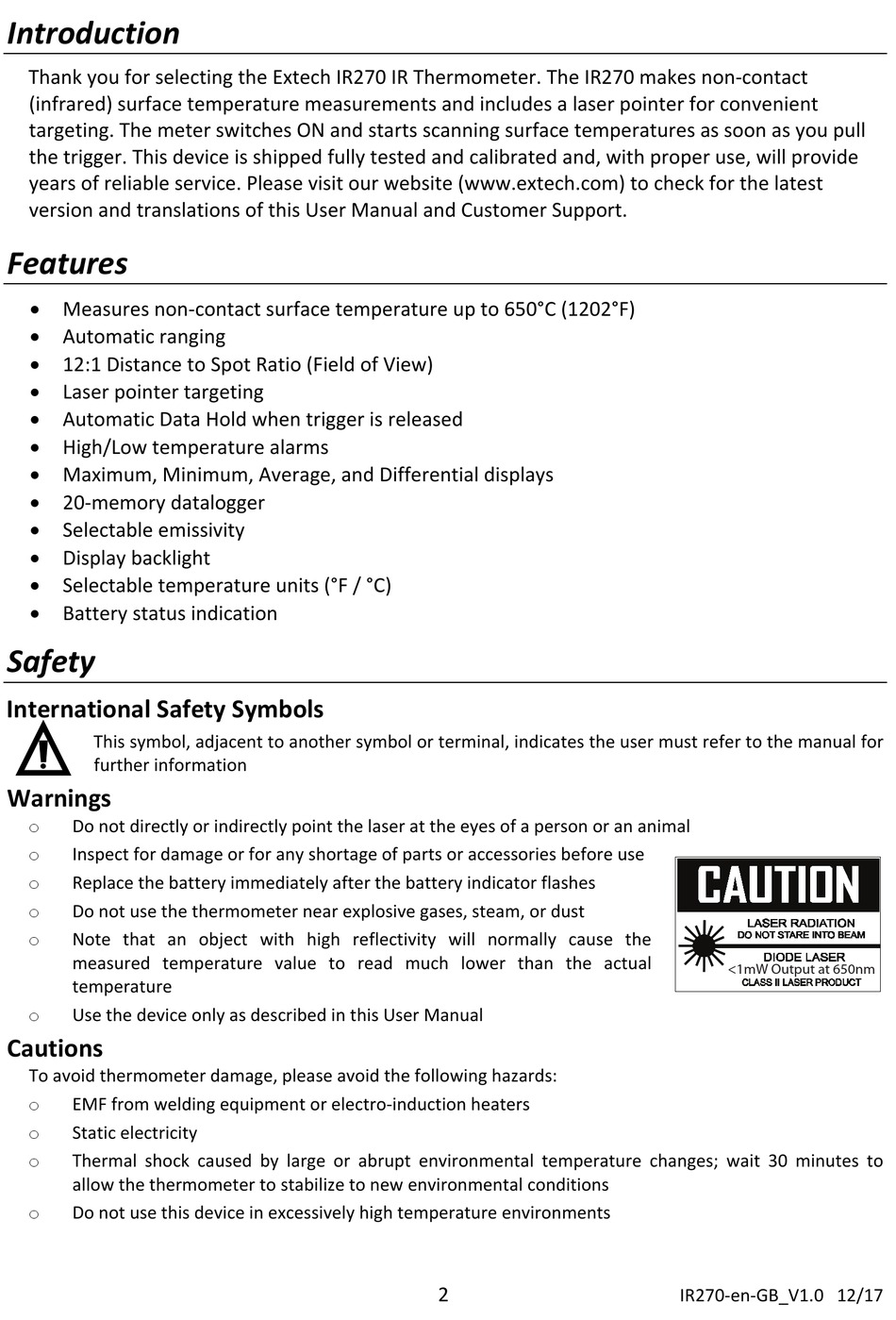

Introduction
Thank you for selecting the Extech IR270 IR Thermometer. The IR270 makes non‐contact
(infrared) surface temperature measurements and includes a laser pointer for convenient
targeting. The meter switches ON and starts scanning surface temperatures as soon as you pull
the trigger. This device is shipped fully tested and calibrated and, with proper use, will provide
years of reliable service. Please visit our website (www.extech.com) to check for the latest
version and translations of this User Manual and Customer Support.
Features

Measures non‐contact surface temperature up to 650°C (1202°F)

Automatic ranging

12:1 Distance to Spot Ratio (Field of View)

Laser pointer targeting

Automatic Data Hold when trigger is released

High/Low temperature alarms

Maximum, Minimum, Average, and Differential displays

20‐memory datalogger

Selectable emissivity

Display backlight

Selectable temperature units (°F / °C)

Battery status indication
Safety
International Safety Symbols
This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for
further information
Warnings
o
Do not directly or indirectly point the laser at the eyes of a person or an animal
o
Inspect for damage or for any shortage of parts or accessories before use
o
Replace the battery immediately after the battery indicator flashes
o
Do not use the thermometer near explosive gases, steam, or dust
o
Note that an object with high reflectivity will normally cause the
measured temperature value to read much lower than the actual
temperature
o
Use the device only as described in this User Manual
Cautions
To avoid thermometer damage, please avoid the following hazards:
o
EMF from welding equipment or electro‐induction heaters
o
Static electricity
o
Thermal shock caused by large or abrupt environmental temperature changes; wait 30 minutes to
allow the thermometer to stabilize to new environmental conditions
o
Do not use this device in excessively high temperature environments
2
IR270‐en‐GB_V1.0 12/17
<1mW Output at 650nm
