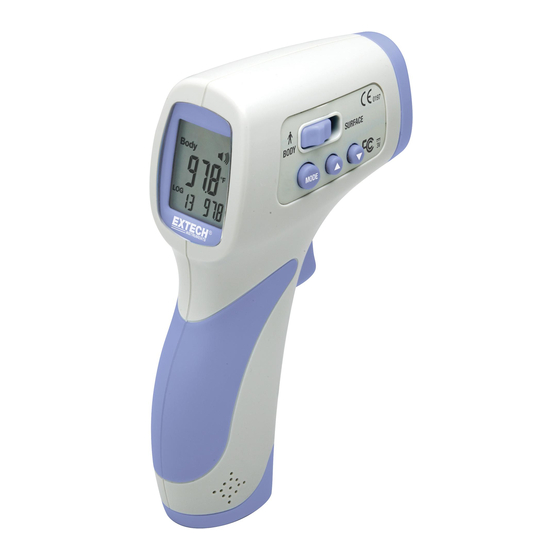

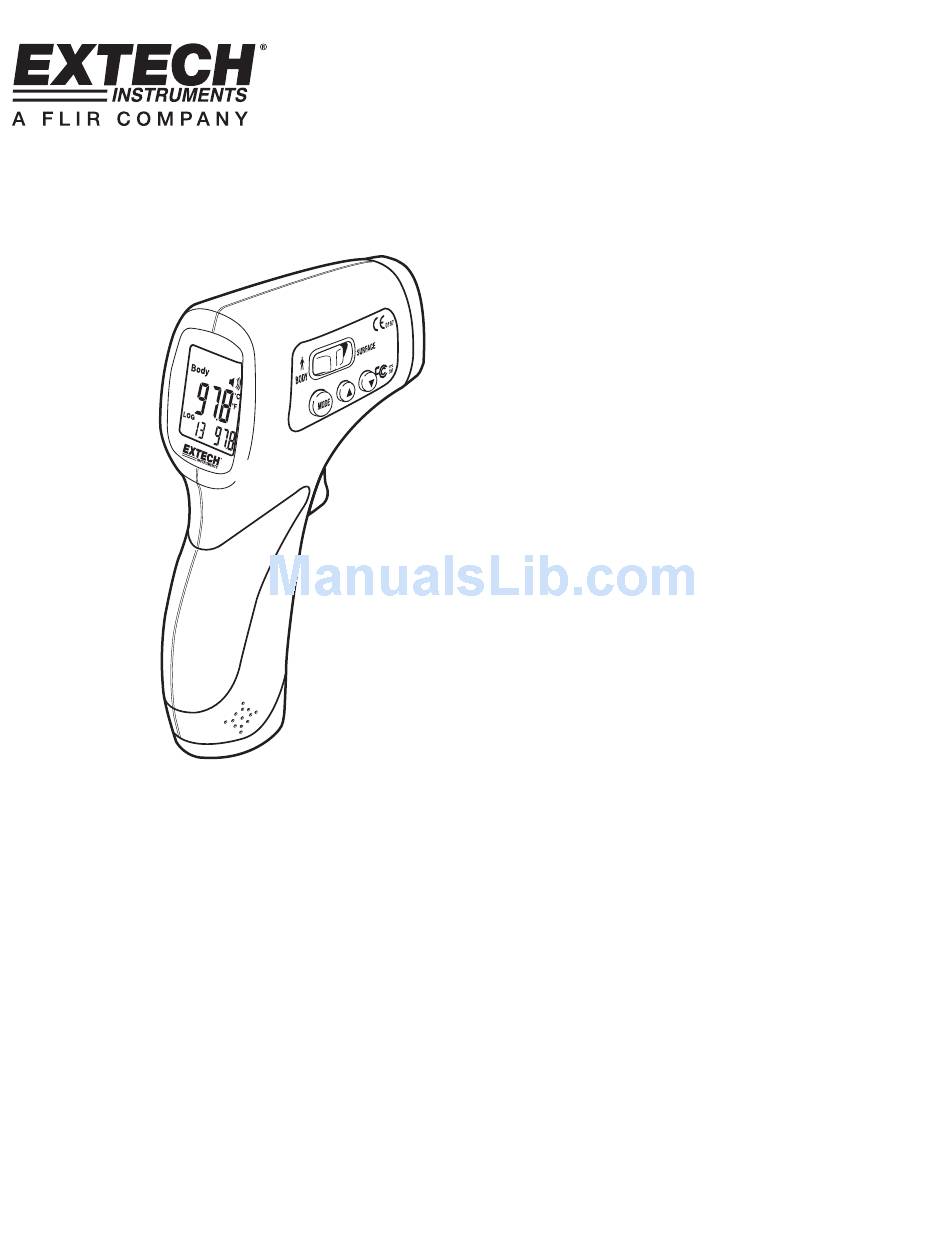

- Page 1 User’s Manual Non-contact Forehead IR Thermometer Model IR200...
- Page 2 Warranty EXTECH INSTRUMENTS CORPORATION (a FLIR company) warrants this instrument to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies on sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department at (781) 890-7440 ext.
- Page 3 IR sensor Body – Surface switch ▼ button ▲ button MODE button Measurement trigger LCD display Battery compartment DISPLAY Surface mode Body mode Temperature display Memory location Alarm active Temperature units Low battery icon Memory temperature display IR200 V1.0 5/09...
-
Page 4: Operating Instructions
Repeat and adjust the correction value as needed until the measurement on the IR200 matches the known temperature. Press the MODE button a fourth time to set the alarm buzzer status. Press the ▲ or ▼... - Page 5 When the low battery symbol appears on the display, replace the meter’s battery. The battery compartment is located on the bottom of the handle. Open the compartment by removing one screw and sliding the cover off. Replace the (2) “AA” batteries and close the battery compartment cover. IR200 V1.0 5/09...
-
Page 6: Specifications
Extech offers repair and calibration services for the products we sell. Extech also provides NIST certification for most products. Call the Customer Service Department for information on calibration services available for this product. Extech recommends that annual calibrations be performed to verify meter performance and accuracy. IR200 V1.0 5/09... - Page 7 For the latest version of this User’s Guide, Software updates, and other up-to-the-minute product information, visit our website: www.extech.com Extech Instruments Corporation, 285 Bear Hill Rd., Waltham, MA 02451 Copyright © 2009 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form.
- Page 8 IR200 V1.0 5/09...
