INSTALLATION

Fitting casing components

11.5 Control voltage connection

X4 Control voltage (control outputs)
KOKP Collector circuit pump and N, PE
MKP Mixer circuit pump and N, PE
Pump Heating circuit 2 and N, PE
M(A) Mixer open
M(Z) Mixer close
HKP Heating circuit pump and N, PE
HS 2 Heat generator 2 and N, PE
ZKP DHW circulation pump and N, PE
Ext. ST
X4 Control voltage (control inputs)
L, N, PE Power supply
EVU Enable signal
Material losses
!
f Only connect energy efficient circulation pumps ap- f
proved by us.
If energy efficient circulation pumps are used that have
not been approved by us, use a relay with a breaking ca-
pacity of at least 10 A/250 V AC or our WPM-RBS relay set.

11.6 Low voltage connection

X2 Low voltage
T (buffer) / T (HR) Buffer cylinder sensor / heating return sensor
T (buffer) / T (HR) Buffer cylinder sensor / heating return sensor
T (cool) / TDHW Flow sensor for cooling / lower DHW sensor for
solar connection
T (COLL) Collector sensor for solar connection
0 - 10 V PWM output
T(DHW) DHW cylinder sensor and earth (X26)
T(2.WE) HS 2 temperature sensor and earth (X26)
T(A) Outside temperature sensor and earth (X26)
T(MK) Mixer circuit temperature sensor and earth (X26)
Rem.Contr. 1 connection for FE 7
Rem.Contr. 3 connection for FE 7
H BUS High
L BUS low
⊥
BUS earth ⊥
+ BUS " + "
14 | WPL 10
12. Fitting casing components

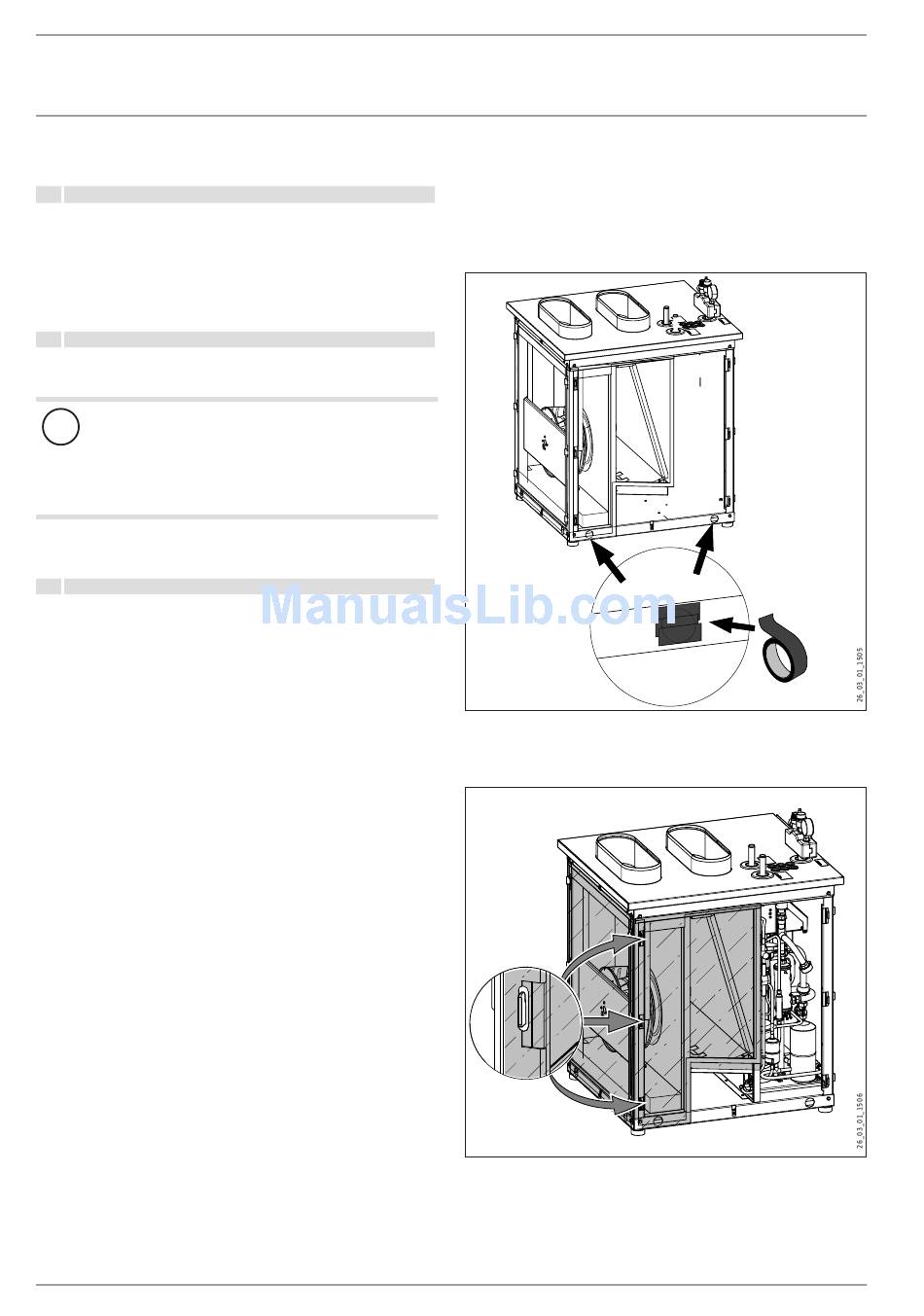

Sealing the appliance
Before fitting the casing parts, seal the appliance by affixing plas-
tic sheets. The plastic sheets are supplied with the casing parts.
f Use fabric tape to affix the sheets over the holes at the bot- f
tom of the frame on the r.h. and l.h. sides. The fabric tape is
supplied with the "air hose" accessories.
f Hang the side sheets with the pre-cut holes onto the hooks f
on the appliance.
