Dynojet POWER COMMANDER V Installation Instruction page 5

FIG.G
FIG.H
Stk connector
FIG.J
25-004 www.powercommander.com
PCV connector
PCV connector
TPS
Posi tap

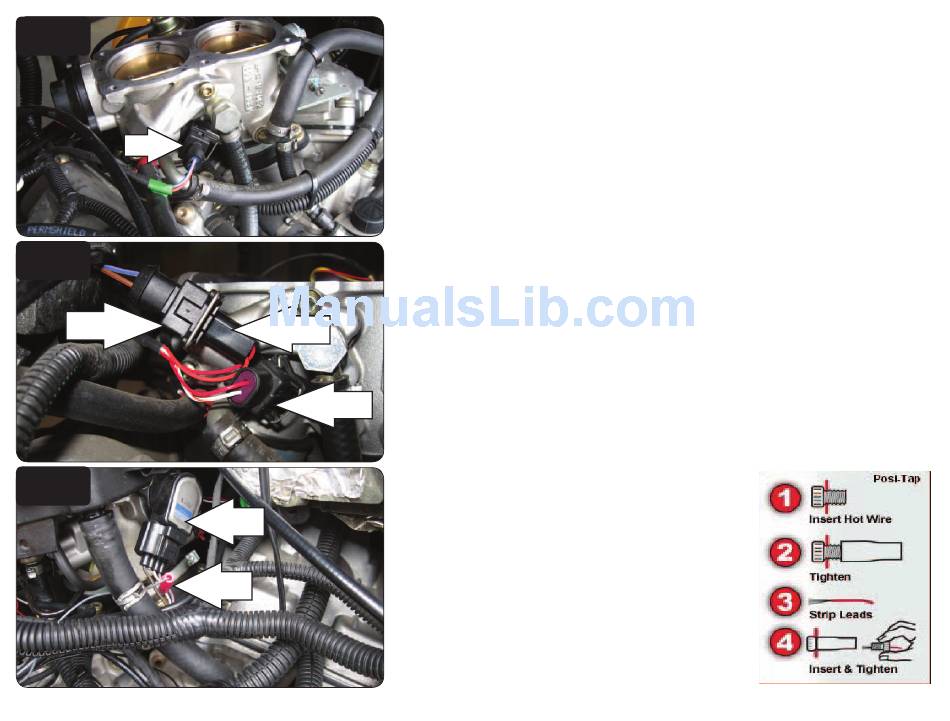

10 Unplug the stock wiring harness from the front injector on the right side of the
throttle bodies (Fig. G).
To release the connector squeeze the spring clip into the connector.
11 Plug the ORANGE colored wires from the PCV in-line of the stock wiring
harness and rear injector (Fig. H).
12 Attach the GREY wire of the PCV to the WHT/
BRN wire of the stock Throttle Position Sensor
using the supplied posi-tap (Fig. J).
The TPS is located on the left side of the throttle
bodies.
09-11 CanAm Spyder PCV - 5
