Dynojet POWER COMMANDER V Installation Instruction page 3

FIG.A
FIG.B
FIG.C
25-004 www.powercommander.com
1
2
Ground wire
3
4
5

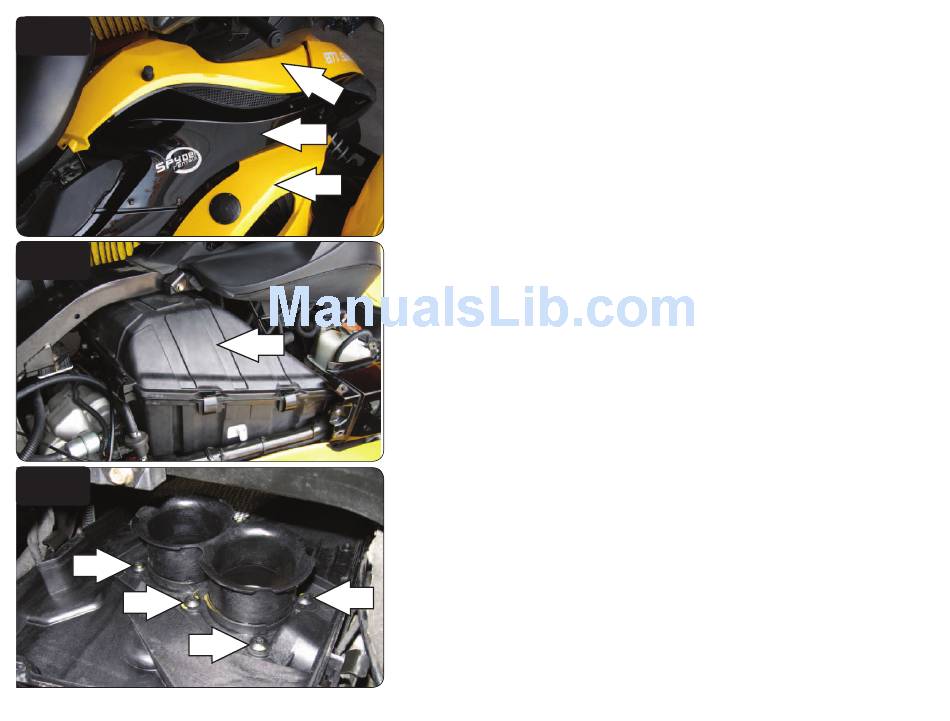

Remove the cosmetic covers on both the right and left sides (Fig. A).
Remove the air box cover by releasing the clips around the edge of the air box
(Fig. B).
To remove the air box base, remove the 6 bolts around the velocity stacks
(Fig. C).
Only 4 bolts are visible in Figure C .
Cut the 3 zip ties on the left side of the air box that secure the wiring harness.
Pull the air box base out the right side. This allows access to the injector
connectors.
09-11 CanAm Spyder PCV - 3
