Summary of Contents for Robe PATT 2017

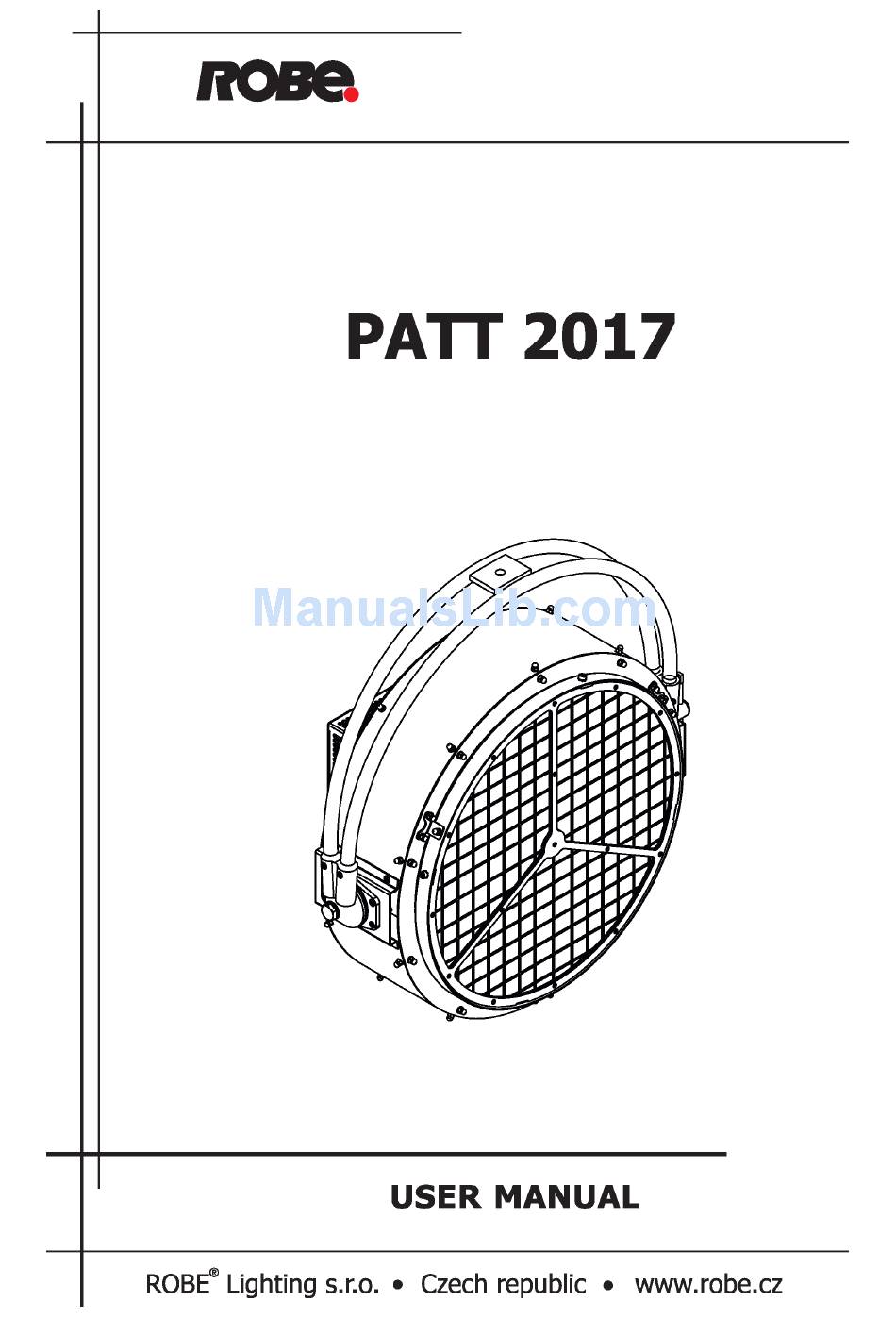

  • Page 1 Version 1.5...
  • Page 2 Table of contents 1. Safety instructions ......................3 2. Description of the fixture ....................4 3. Installation........................5 3.1 Mounting the PATT 2017 ................... 5 3.2 Connecting the PATT 2017 with the PATT Driver ............5 4. Technical specifications ....................6...
  • Page 3: Safety Instructions

    The light source contains blue LEDs. When choosing the installation spot, please make sure that the PATT 2017 are not exposed to extreme heat, moisture or dust. Operate the PATT 2017 only after having familiarized with its functions. Do not permit operation by persons not qualified for operating the PATT 2017.
  • Page 4: Description Of The Fixture

    2. Description of the fixture 1 - Mounting yoke 2 - Parabolic aluminium reflector 3 - Fan 4 - Control Input (4-pin XLR) 5 - Control box 6 - Tilt lock Pixel positions:...
  • Page 5 Note: the spigot has to be inserted into the floor stand and always secured. For overhead installation the PATT 2017 has to be always secured to the truss by means of a safety wire (that can hold at least 10 times the weight of the fixture) which is fastened to the truss and around mounting yoke of the PATT 2017.
  • Page 6: Technical Specifications

    PATT Driver, the ferrite RRC 17-11-28-M-K5B (Robe P/N 13051799) should be installed on the 4-pin XLR cable closely to the PATT 2017 as shown on the picture bellow. If you use the original Robe 4-pin XLR cable, this ferrite is part of the cable and you do not need to install another ferrite on the cable.
  • Page 7: Optional Accessories

    Dimensions (mm) Wiring of control input: 1 - 0V 2 - Signal - 3- Signal + 4- +48V Optional accessories (P/N 10980374) Tripod for PATT 2013/2017, pixelPATT (P/N 1098 0259) Floor Stand for PATT 2013, picklePATT (P/N 1098 0260) Spigot for PATT 2013/2017/picklePATT, pixelPATT (P/N 13052797) Data cable 4 pin XLR 10m, ferrite, EU (P/N 13052798) Data cable 4 pin XLR 5m, ferrite, EU (P/N 13052799) Data cable 4 pin XLR 10m, US...
  • Page 8 Beam distribution Copyright © 2017-2018 Robe Lighting - All rights reserved Specifications are subject to change without notice. April 19, 2018 Made in ROBE Lighting s.r.o., Palackého 416, 757 01 Valašské Meziříčí, Czech Republic...
