Hearth & Home MEZZO36 Installation Instructions

MODELS: MEZZO36, MEZZO36ST, CRAVE4836, CRAVE4836ST
MEZZO36-B, MEZZO36ST-B, CRAVE4836-B, CRAVE4836ST-B
Leave this manual with party responsible for use and
operation.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation.
CAUTION: Logs are fragile, handle with care.
Kit Components:
• Burner Port Fixture
• Ceramic Logs (6)
• Shoulder Screws (11)
• Self-tapping Screws (6)
INSTALLATION
1. Remove decorative front. Remove fi xed glass assem-
bly by unlatching the two top spring latches. Allow the
fi xed glass assembly to tilt away from the fi replace and
lift the fi xed glass assembly up and out of the opening.
2. Remove any existing media from appliance.
3. Lift burner rails out of appliance.
For Natural Gas appliances, the air shutter should be ad-
justed for optimal fl ame appearance. If LOGS-36 is being
installed on a Propane appliance, proceed to step 8.
NG Appliances Only:
4. Remove the media tray. It is attached to the interior
fi rebox bottom with eight screws.
5. Remove the two screws that attach the pilot to the
burner.
6. Remove the four screws securing the burner to the fi re-
box sides and disengage burner from orifi ce. Remove
burner.
7. Adjust shutter setting on NG burner to 1/4 in. Reinstall
burner, pilot and media tray. For more information, see
the appliance installation manual.
NG and Propane Appliances:
8. Install eleven shoulder screws into pilot holes in media
tray. Locations are indicated in Figure 1.
Hearth & Home Technologies • LOGS-36 Installation Instructions • 2312-948 Rev. C • 5/16
LOGS-36
Installation Instructions
2 2
1 1

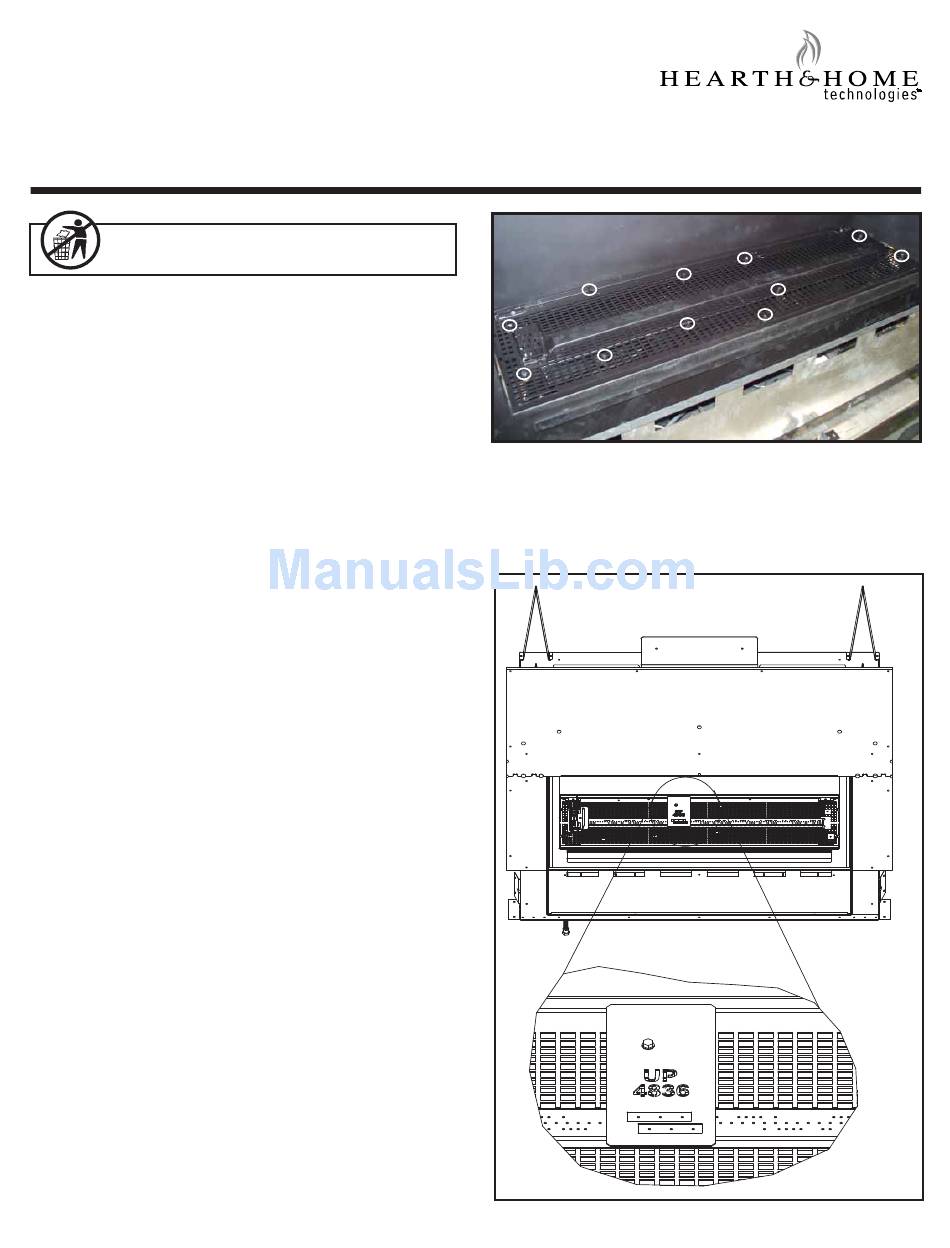

Figure 1.
9. There are 6 burner port holes that must be plugged in
order to prevent sooting. Place burner port fi xture over
shoulder screw #6 as shown in Figure 2. Ensure the
"UP" marking is in the correct orientation.
Figure 2.
9 9
6 6
4 4
7 7
5 5
3 3
11 11
10 10
8 8
1
