baxter EASYSPRAY Quick Reference Instruction

EASYSPRAY Quick Reference Guide (for open wound surgery)

Instructions for Circulating Nurse | EasySpray Pressure Regulator

1 2
Insert 9V battery into the EASYSPRAY Connect EASYSPRAY device to IV pole
pressure regulator device. or cart rail using the clamps on the back
of the device.

Instructions for Scrub Nurse | Spray Set

1 2
Prepare TISSEEL Fibrin Sealant according Firmly attach the spray head to the
to the instructions in the package insert. nozzle of the syringes.

Instructions for Surgeon

1 2
Confirm (verbally) the actual pressure Spray from a distance of 10 – 15 cm for
with OR personel. optimum results.
3 4
Use suitable connection tube to connect Connect Spray Set filters to EASYSPRAY
the EASYSPRAY device to medical air device. Connect the blue filter (pressure
(ranging 3.5 – 7 bar / 50 – 100 psi). line) to the blue female luer connector and
the clear filter (sensor line) to the male luer
connector.
3 4
Fasten the pull strap to the double Fit the connection tube of the spray set to
syringe system to assure the spray head the luer-lock connector on the underside of
is tightly secured. the spray head.
3
To activate the flow of gas occlude the
opening in the clip center with thumb.
To begin application, gently depress the
syringe plunger.
5
Turn the on/off switch on the front side
of the EASYSPRAY to the ON (I) position.
5
Attach the clip (on the end of the sensor
line) by sliding it into the grooves located
on the top of the syringe plunger.
The use of TISSEEL Fibrin Sealant is restricted to experienced surgeons who have been trained in the use of TISSEEL.
In order to ensure optimal safe use of TISSEEL by spray application, apply a minimum spray distance of 10 cm and a maximum spray
pressure of 2.0 bar (28.5 psi) to minimize the potential risk of air or gas embolism, tissue rupture, or air or gas entrapment with
compression.
The EASYSPRAY device will continue to emit gas for a brief period after the thumb is removed from the clip/plunger.
This delay helps to avoid clogging of the spray head.
For full prescribing information about Tisseel, contact your local sales representative
Caution: Any application of pressurized gas may be associated with a potential risk of air or gas embolism, tissue rupture or air or gas entrapment with
compression, which may be life threatening. Be sure to take appropriate measures to address these risks by observing the recommended minimum
spraying distance and the maximum pressure provided in the appropriate spray set instructions for use.
6

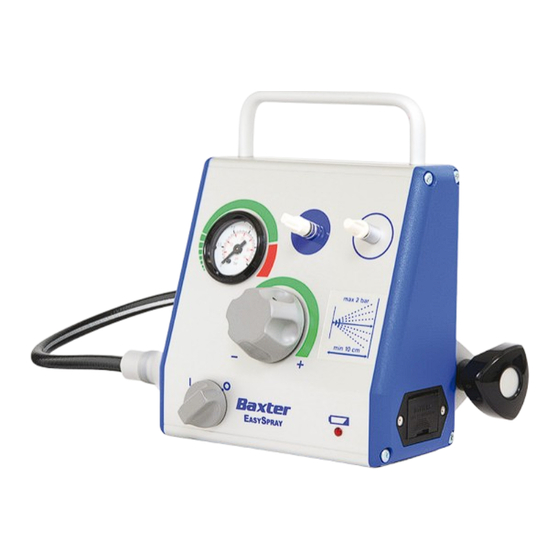

Check the gauge on the EASYSPRAY
device for the appropriate pressure
range of 1.5-2.0 bars (21.5-28.5 psi).
Adjust pressure setting by turning the
pressure control knob.
6
Pass the assembled applicator to the
surgeon for spray application. Pass the
end of the connection tube with the
sterile filters to the circulating nurse.
