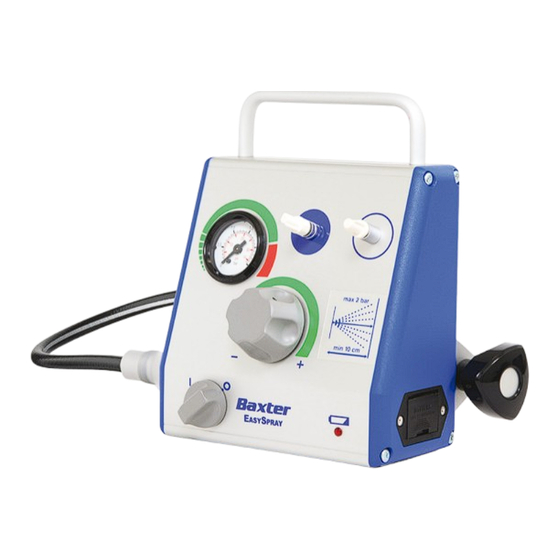

EASYSPRAY PRESSURE REGULATOR QUICK REFERENCE GUIDE
Instructions for Circulating Nurse | EASYSPRAY Device
1
2
Insert 9V battery into the EASYSPRAY
Connect EASYSPRAY device to IV pole or
pressure regulator device.
cart rail using the clamps on the back of
the device.
Instructions for Scrub Nurse | Spray Set for TISSEEL [Fibrin Sealant]
1
2
For Topical Use Only
Prepare TISSEEL [Fibrin Sealant] according
Firmly attach the spray head to the
to the instructions in the package insert.
nozzle of the syringes by aligning the
blue dot on the spray head to the blue
dot on the syringes.
Instructions for Surgeon
1
2
A spraying distance of 10 –15 cm is
To activate the flow of gas, occlude the
recommended. Note that the spraying
opening in the clip center with thumb.
distance should not be less than 10 cm
To begin application, gently depress the
(3.9") and the maximum pressure should
TISSEEL syringe plunger.
not exceed 2 bars (29.5psi).
3
Connect the adapter attached to the
black tubing, located at the side of the
EASYSPRAY device, to an appropriate gas
source. Pressurized gas supply must be
set between 3.5 and 7 bar (51-100 psi).
3
For Topical Use Only
For Topical Use Only
Fasten the pull strap to the double
syringe system to assure the spray head
is tightly secured.
4
5
Connect Spray Set filters to EASYSPRAY
Turn the on/off switch on the front side
device. Connect the blue filter to the blue
of the EASYSPRAY device to the ON posi-
female Luer connector and the clear filter
tion. The low-battery indicator light will
to the male Luer connector.
only illuminate when the battery is weak
and when the gas flow is activated. If
the battery is completely dead, the low-
battery indicator will not illuminate.
4
5
For Topical Use Only
Fit the connection tube of the spray set to
Attach the clip (on the end of the sensor
the Luer-lock connector on the underside of
line) by sliding it into the grooves located
the spray head.
on the top of the syringe plunger.
TIPS
The EASYSPRAY device will continue to emit gas for a brief period after the thumb is removed from the clip/plunger.
This delay helps to avoid clogging of the spray head.
Selected Important Risk Information
Air or gas embolism has occurred when fibrin sealant was administered using pressurized gas. This can occur
if a spray device is used at higher than recommended pressures and in closer than recommended proximity to the tissue surface.
Please see Indications and Detailed Important Risk Information for TISSEEL [Fibrin Sealant] on the reverse side.
Rx Only: For safe and proper use of these devices, please refer to the appropriate full device Instructions for Use included.
Do Not connect to an oxygen source.
Do Not use rechargable batteries.
For Tech Support Call 1-888-229-0001,option 4
6
Check the gauge on the EASYSPRAY
device for the appropriate pressure
range of 1.5-2.0 bars (21.8-29 psi).
Adjust pressure setting by turning the
black pressure control knob.
6
For Topical Use Only
For Topical Use Only
Pass the assembled TISSEEL syringe to
the surgeon for spray application.
Pass the end of the connection tube with
the sterile filters to the circulating nurse.
