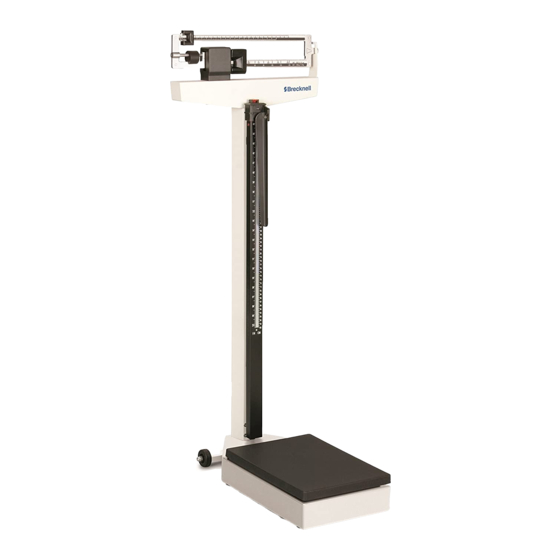

The Health Scale HS-200M is designed to both weigh the body and measure the height
and meets the OIML International Recommendation R76. The scale has the advantage
of a large weighing range, accuracy and high sensitivity. It is ideal for school nurse's
offices or for doctor's screening rooms where height and patient weight measuring is
necessary. It is also can be used for other weighing needs.
Specification:
1. Maximum capacity: 160kg/350lb, 180kg/400lb, 200kg/450lb；
2. Graduation: 100g/0.25lb
3. Height Range: 60-210cm
4. Minimum value of height per division: 5mm
5. Platform size: 375 cm x 275 cm
6. Overall dimension (L x W x H) 530mm x 275mm x 1485mm
Installation Instruction:

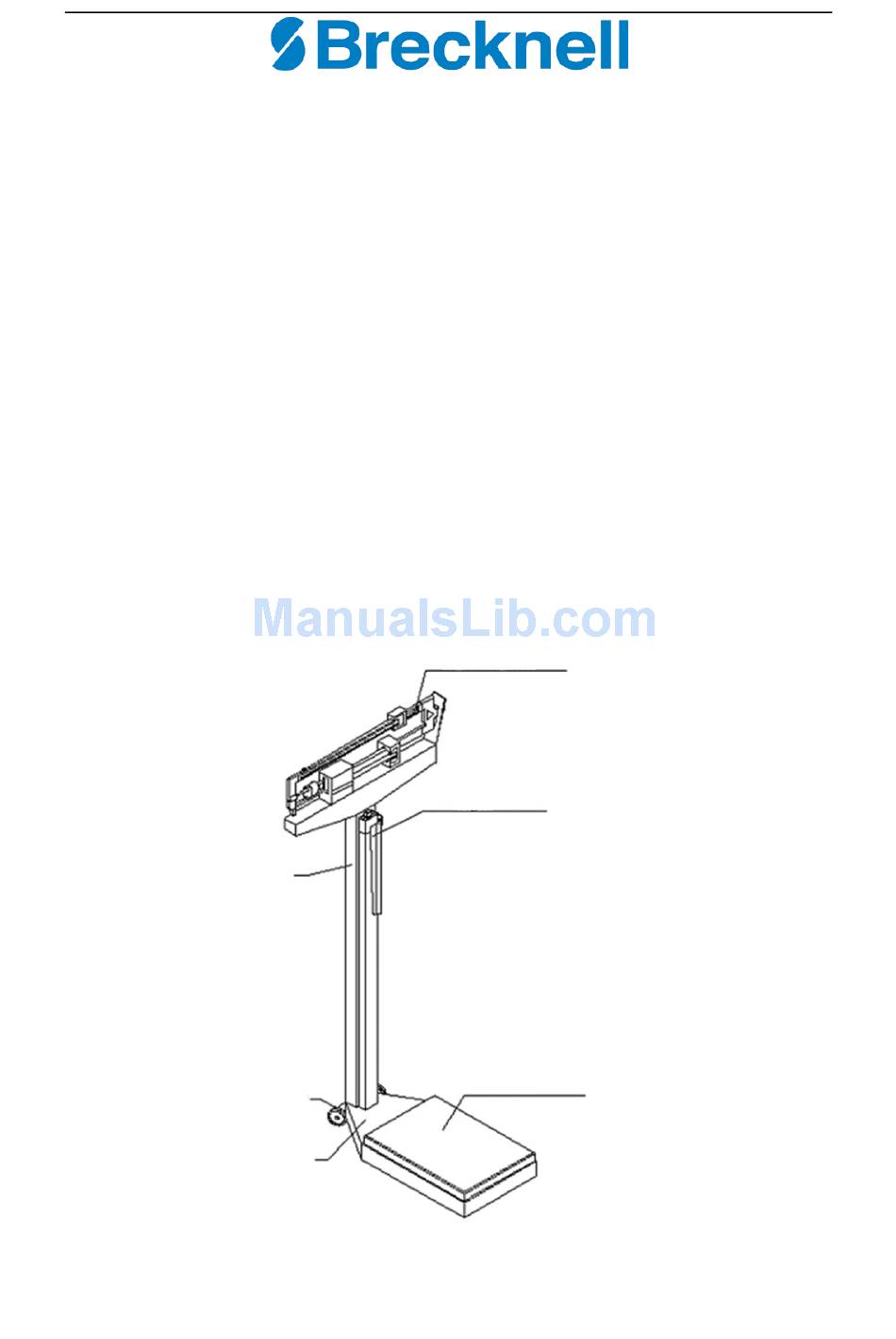

Moving Wheel
HS-200M HEALTH SCALE
Pillar
Frame
Weighing Ruler
Height Rod
Platform
1
Advertisement
Related Manuals for Brecknell HS-200M
Summary of Contents for Brecknell HS-200M
- Page 1 HS-200M HEALTH SCALE The Health Scale HS-200M is designed to both weigh the body and measure the height and meets the OIML International Recommendation R76. The scale has the advantage of a large weighing range, accuracy and high sensitivity. It is ideal for school nurse’s offices or for doctor’s screening rooms where height and patient weight measuring is...
- Page 2 Pillar Installation (Fig.2): Accessory poise weight Measuring rule Main poise weight Zero balance weight Eye loop Pillar head Zero adjusting screw Force lever Steelyard rod Pole Pillar Bolt Platform Frame Insert the pillar upright to the bracket on frame Use the screws and washer to fix the pillar in a vertical position...
- Page 3 Connect the steelyard rod to long lever (Fig.3): Zoom Disassemble the wires Connect the steelyard to the long lever Steelyard rod hook Wrench Fig 3.1 Lay the pillar on a table (Fig.3) Disassemble the wires on the levers. Insert the wrench into the small hole in front of the steelyard rod, and pull the hook of the steelyard rod with the hook of wrench (Fig.
-
Page 4: Height Rod Installation
Height Rod Installation: III. Height rod Height rod Wrench Pillar Platform Moving wheel Wrench Frame Fig 4.1: Back side hole of the height rod Fig 4: Height rod installation Height rod Height rod Wrench Pillar Pillar Flat Frame Platform Fig 4.3 Fig 4.2 Insert the back side holes of the height rod into the two bolts on the front side of pillar;... - Page 5 Moving Wheel Installation (Fig.5): Platform Moving wheel Frame Fig. 5.1 Fig. 5 Turn the wheels so that the holes are facing the rear of the scale, place the screws in the holes. (Fig.5-1) Use the screws and washers to fix the wheel to the platform, adjust the angle iron to a level position and then tighten the screws.
- Page 6 UK and Europe Brecknell Brecknell 1000 Armstrong Drive Foundry Lane Fairmont MN 56031 Smethwick Toll Free: 800-637-0529 West Midlands, B66 2LP. Tel: 507-238-8702 Tel: +44 (0) 845 246 6717 Fax: 507-238-8271 Fax: +44 (0) 845 246 6718 Email:sales@brecknellscales.com Email: sales@brecknellscales.co.uk www.
- Page 7 BALANCE MÉDICALE HS-200M La balance médicale HS-200M est conçue pour peser le corps et mesurer la taille. Elle est conforme à la norme R76 de l'OIML (Organisation internationale de métrologie légale). La balance a pour avantages une grande plage de poids, une grande précision et une haute sensibilité.
- Page 8 Installation du pilier (figure 2) : Poids du fléau auxiliaire Règle de mesure Poids du fléau principal Poids de la mise à zéro Oeillet Tête du pilier Vis d'ajustement à zéro Levier de force Barre du peson Mât Pilier Boulon Plateforme Cadre Insérer le pilier en position debout dans le support du cadre.
- Page 9 Connecter la barre du peson au long levier (figure 3) : Zoom Désassembler les fils Connecter le peson au long levier Crochet de la barre du peson Clé Figure 3.2 Figure 3.3 Figure 3.1 Allonger le pilier sur une table (figure 3). Désassembler les fils se trouvant sur les leviers.
- Page 10 Installation de la tige de grandeur : Tige de grandeur Tige de grandeur Clé Pilier Plateforme Roulettes Clé Cadre Figure 4.1 : Trou arrière de la tige Figure 4 : Installation de la tige de de grandeur grandeur Tige de grandeur Tige de grandeur Clé...
- Page 11 VII. Installation des roulettes (figure 5) : Plateforme Roulettes Cadre Figure 5 Figure 5.1 Positionner les roulettes de telle sorte que les trous soient orientés vers l'arrière de la balance, puis placer les vis dans les trous (figure 5.1). Fixer les roulettes à la plateforme à l'aide des vis et des rondelles, ajuster le fer d'angle pour que la position soit à...
- Page 12 É.-U. R.-U. et Europe Brecknell Brecknell 1000 Armstrong Drive Foundry Lane Fairmont MN 56031 Smethwick Numéro sans frais : 800-637-0529 West Midlands, B66 2LP. Tél. : 507-238-8702 Tél. : +44 (0) 845 246 6717 Téléc : 507-238-8271 Téléc : +44 (0) 845 246 6718 Courriel : sales@brecknellscales.com...
