Summary of Contents for Brecknell PS25
-
Page 1: User Instructions

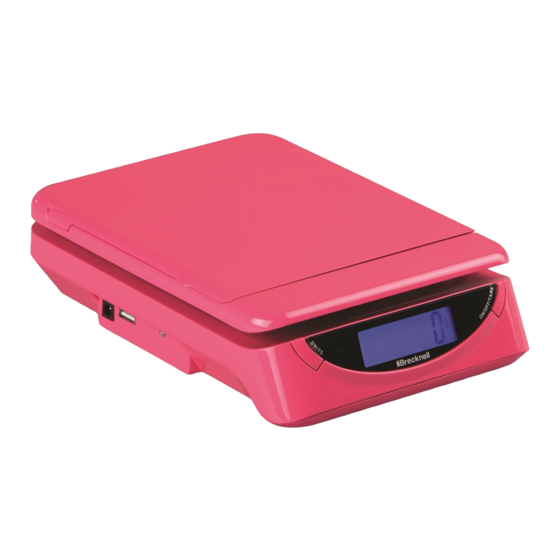

PS25 Digital Postal Scale User Instructions AWT 35-501193 Issue AB... - Page 2 Brecknell is a trademark of the Illinois Tool Works group of companies whose ultimate parent company is Illinois Tool Works Inc (“Illinois Tool Works”). Copyright © 2013 Illinois Tool Works. All rights reserved. No part of this publication may be reproduced by making a facsimile copy, by the making of a copy in three dimensions of a two-dimensional...
-
Page 3: Table Of Contents
Example Screens of 2lb to 25lb:5.0oz Range ............. 8 Tare Function ........................8 Overload Display ........................ 9 Backlight LCD Display ....................... 9 Connection with a PC ......................9 Install / Update the USB Driver ................... 9 PS25 Postal Scale User Instructions... - Page 4 PS25 Postal Scale User Instructions...
-
Page 5: Chapter 1 General Information And Warnings
Batteries enclosed (if any) must not be recharged or reactivated by any means. Do not disassemble, dismantle, thrown into a fire or short-circuited batteries. This product is for Professional use only. PS25 Postal Scale User Instructions... -
Page 6: Low Battery Warning, Battery Disposal And Replacement
1.4 Low Battery Warning, Battery Disposal and Replacement 1.4.1 Low Battery Warning The PS25 is able to sense if the batteries installed have enough voltage to provide an accurate measurement. When the battery voltage drops to or below 3.8, Lo will flash on the display Figure 1.1 Low Battery Indication... -
Page 7: Specifications
Unit switch: lb:oz / kg/ gram, toggle the key to select ON/OFF switch: power on/off and tare function Back light LCD display A flap on the scale is used to support large envelopes that will stand on end and holding long tubes. PS25 Postal Scale User Instructions... -
Page 8: Chapter 2 Operation
The scale defaults to the last used unit of measure (lb:oz, kg or g). If another unit of measure is preferred, press the [UNIT] key to select lb:oz, kg or grams.. Figure 2.1 Unit of Measure: lb:oz mode Figure 2.2 Unit of Measure: kg PS25 Postal Scale User Instructions... -
Page 9: Example Screens Of 0 - 2Lb Range
After the scale is turned on and a weight unit is selected, place objects on the platform for weight measurement. Figure 2.4 Example of lb:oz Display Figure 2.5 Example of kg Display Figure 2.6 Example of g Display PS25 Postal Scale User Instructions... -
Page 10: Example Screens Of 2Lb To 25Lb:5.0Oz Range
Place objects to be weighed into the tray. Once the tray is no longer needed, press the [ON/OFF/TARE] key again to reset the scale zero. PS25 Postal Scale User Instructions... -
Page 11: Overload Display
LCD display will show "-- -- ".: 2.5 Backlight LCD Display When the PS25 is turned on, the backlight will turn on simultaneously for approximately 10 seconds. The backlight will turn off if there is no change in the display and turn back on when weight is placed on the weigh platform. - Page 12 PS25 Postal Scale User Instructions...
- Page 14 Brecknell USA 1000 Armstrong Dr. Fairmont MN 56031 Tel:507-238-8702 Fax:507-238-8271 Email: sales@brecknellscales.com http://www.brecknellscales.com Brecknell UK Foundry Lane, Smethwick, West Midlands, England B66 2LP Tel:+44 (0) 8452 46 6717 Fax:+44 (0) 8452 46 6718 Email: sales@brecknellscales.co.uk http://www.brecknellscales.com...
