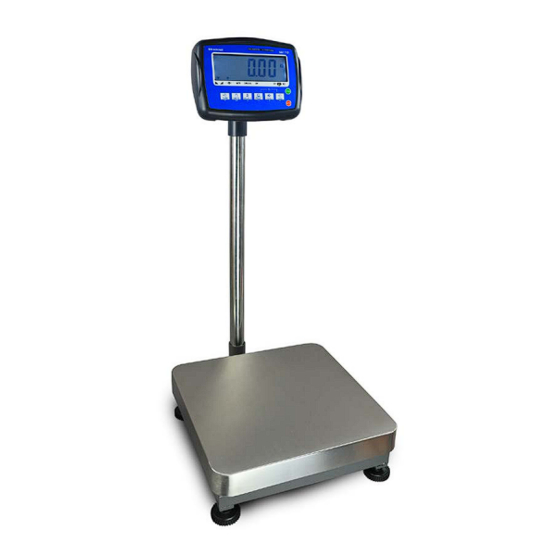

Brecknell SBI 110 User Manual

Indicator, bench scale
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Indicator SBI 110
Bench Scale 3900LP
AWT35-501860
Issue AB
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBI 110 and is the answer not in the manual?

Questions and answers

Related Manuals for Brecknell SBI 110

Summary of Contents for Brecknell SBI 110

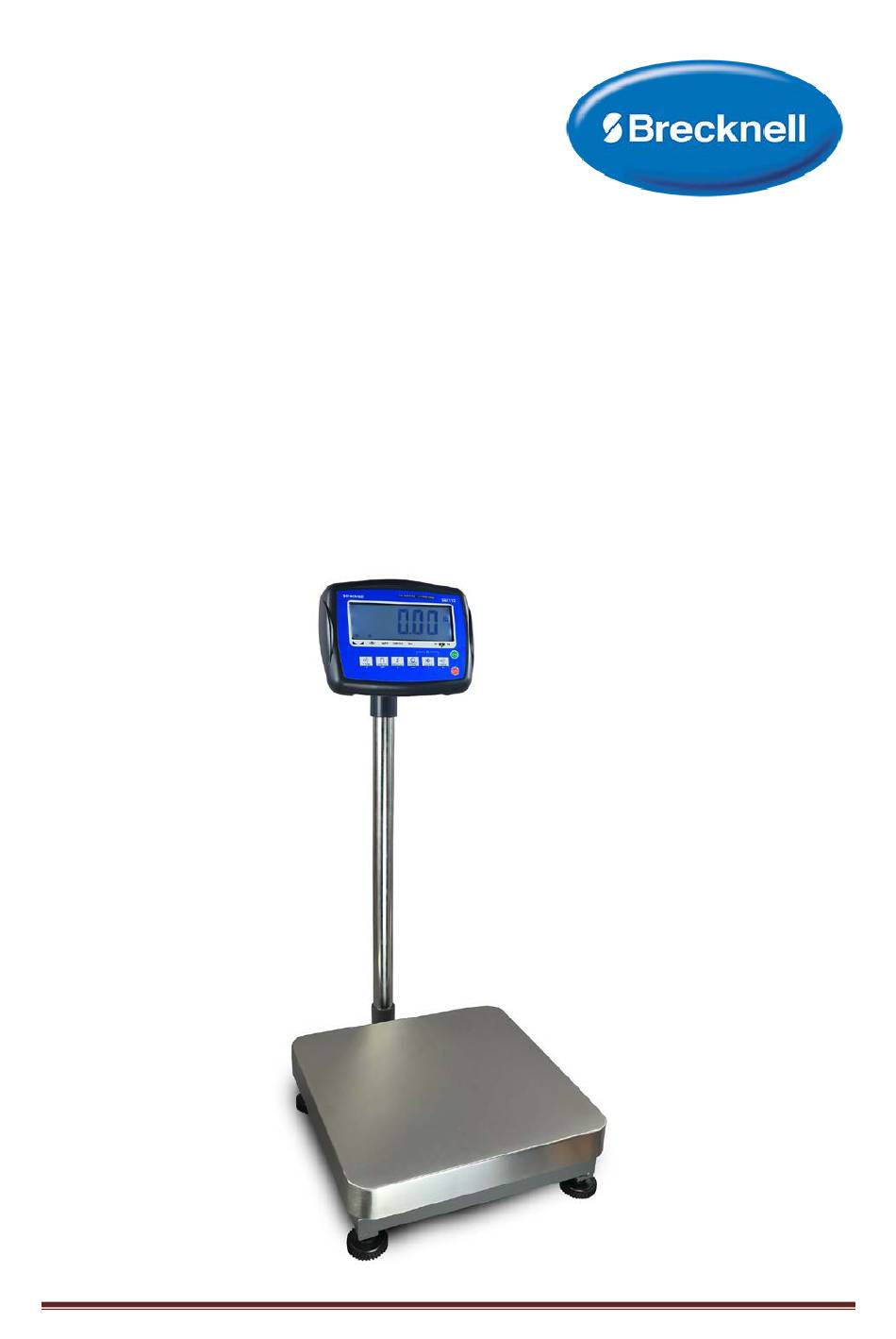

  • Page 1 User Manual Indicator SBI 110 Bench Scale 3900LP AWT35-501860 Issue AB Page 1...
  • Page 2 Avery Weigh-Tronix is a trademark of the Illinois Tool Works group of companies whose ultimate parent company is Illinois Tool Works Inc (“Illinois Tool Works”). Copyright © 2019 Illinois Tool Works. All rights reserved. No part of this publication may be reproduced, stored in an electronic retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written consent of the copyright owner, or as permitted by law or under license.

  • Page 3: Table Of Contents

    Table of Contents 1. General information and Warnings page 6 FCC Declaration of Compliance - Déclaration de conformité..……...…………..…... Training - Formation……………………..………………………………...……………... Battery Safe Disposal - Élimination sécurisée des batteries……...………………….. Routine Maintenance - Entretien de routine……………………………………..…….. Cleaning the Machine - Nettoyage de la machine………………………….…………. Sharp Objects - Objets tranchants………………………….………………...……..
  • Page 4 Hold Mode for Animal Weighing………………………………………..……..……… 4. Menus page 15 User Menu……………………..……………………………...……….………….……..…. User Menu Levels………………….………………...……….……………………..… User Functions Descriptions [UF].………………….……….…………………..…… Supervisor Menu..………………………….……………..………………….……..……. Supervisor Menu Levels……..……….………………………………………..……... Supervisor Functions Descriptions [LF].…………..….……………………..….…... Quick Calibration Menu……..………………………..……………………….……..……. Quick Calibration Menu Levels…...…………….……………………...……..……… Quick Calibration Functions Descriptions [ECF]…..…………………………..…… 5. Scale Configuration [LF 2] page 19 6.
  • Page 5 Manual revision history Current Issue Date Created Details of Changes Draft Jan. 2019 Please be aware this product contains a lead acid battery which MUST be removed and disposed of safely prior to any disposal of the scale. AWT35-501860 Issue AB Page 5...

  • Page 6: General Information And Warnings

    1. General Information and Warnings 1.1. FCC Declarations of Compliance - FCC Déclaration de conformité United States This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 7: Training - Formation

    1.2. Training - Formation Do not attempt to operate or complete any procedure on a machine unless you have received the appropriate training or read the instruction books. Ne pas tenter d’utiliser la machine ou lui appliquer une quelconque procédure sans avoir reçu une formation adaptée ou lu les manuels d’instruction.

  • Page 8: Introduction

    2. Introduction The SBI110 is a general purpose indicator ideal for connecting to most bench and floor scales. This indicator can easily be desk or pole mounted and comes with an AC power adaptor along with a rechargeable lead acid battery to allow the scale to be used in applications where power outlets are limited.

  • Page 9: Scale Installation

    2.2.2 Scale Installation 1. Attach the support column to the bracket at the back of the scale base using the three mounting screws. Use a 3mm hex (Allen) key to tighten the screws. See Figure 3. Fig. 3 Insert column into bracket and secure with three screws 2.

  • Page 10: Battery Operation

    2.3. Battery Operation The SBI110 can be operated from a 6V 4Ahrs battery located inside the indicator or plugged into an acceptable power outlet. Battery life is approximately 107 hours with the backlight off. When the battery needs charging this symbol, , appears in the upper left corner of the weight display.

  • Page 11: Operation Keys

    2.5.2. Operation Keys Keys are shown below along with their functions. Some keys have secondary functions. Press and hold the OFF key to turn off the scale. “oFF” will be displayed for 2 seconds. Press the ON key to turn on the scale. The scale will run through a display test before displaying 0.000.

  • Page 12: Scale Operation

    3. Scale Operation This section covers the scale operations of simple weighing, counting and hold. The steps for various kinds of weighing are explained in the following pages. A warm-up time of 15 minutes is required to stabilize the measured values. 3.1.

  • Page 13: Sampling Parts Prior To Counting

    3.3.1. Sampling Parts Prior to Counting Follow these steps to count items using the sampling method. 1. Power up and if necessary Zero the scale by pressing the ZERO key. If the weight change is within the Zero window area the display will show 0.000. Decimal positions available may vary. 2.

  • Page 14: Setting The Checkweighing Limits

    3.4.1. Setting the Checkweighing Limits When the scale is ON, press PRINT and TARE keys together; UF-1 will be displayed. Press TARE (►) key; UF-2 will be displayed. iii. Press PRINT(↵) key; Enter or edit the LO limit value by pressing ZERO(◄) and/or TARE (►) keys to move the flashing digit left or right and press the SELECT (▲) key to increase the numeric value;...

  • Page 15: Menus

    4. Menus There are three menus that allow to configure, enable or execute specific functions or options. pages • User Menu UF – 1 ~ 11 • Supervisor Menu LF 1 ~ 8 • Quick Calibration Menu ECF – 1 ~ 3 4.1.

  • Page 16: User Functions Descriptions [Uf]

    UF-2 Checkweighing: the acceptable weight is any weight which falls between the upper and lower limits. Enter this option to set the items relating to checkweighing: • LOW / HIGH limits. Valid beeper modes: o 000; o 001; o 002. See chapter 3.4.

  • Page 17: Supervisor Menu

    4.2.1. Supervisor Menu Levels [LF] Navigate the options by pressing ZERO (◄), TARE (►) and increase a numeric value by SELECT (▲) key. Press UNITS ( ) to exit the option or the menu and PRINT (↵) key to confirm. 4.2.2.

  • Page 18: Quick Calibration Menu

    LF 7 Gravitational value: use this item to key in a G constant value: 9.78031 < G < 9.83217 If the scale has been calibrated at a different location and it is not possible to re-calibrate with known test weights, the scale can be adjusted using this gravity factor. •...

  • Page 19: Scale Configuration [Lf 2]

    5. Scale Configuration [LF 2] Enter the function LF 2 to set the units, counting mode, calibration units, decimal position of the separator and division size. Navigate the options by pressing ZERO (◄), TARE (►) and increase a numeric value by SELECT (▲) key.

  • Page 20: Calibration

    6. Calibration It is recommended to perform only the very first calibration following the function LF 1 in the Supervisor Menu (page 18). To prevent any unintentionally amendment of the scale configuration, all the next Calibration should be performed entering the Quick Calibration Menu (page 19). 6.1.

  • Page 21: Stamped Calibration

    are recorded, this indicates a possible mechanical problem or possible load cell failure which linearity calibration may not be able to correct. LF-2 CALIBRATION SETTINGS • Default setting for calibrating in lb with counting function active is [110102] • Default setting for Legal-for-Trade calibrating in lb is [110002]. Counting function must be turned off for Legal-for-Trade use.

  • Page 22: Rs232 Communications [Uf-6]

    For legal for trade applications the indicator has to be properly configured entering the functions available in the Supervisor Menu before setting the Calibration Switch at OFF and sealing the indicator. 8. Replacement Parts Description SBI 110 indicator 816965007363 Replacement battery : DJW6-4.0 (6V 4.0AH) sealed lead acid battery RS232 kit AWT15-501905...
  • Page 23 Brecknell USA Brecknell UK 1000 Armstrong Dr. Foundry lane, Fairmont MN 56031 Smethwick, West Midlands Toll free:800-637-0529 England, B66 2LP Tel:507-238-8702 Tel:+ 44 (0) 8452 466717 Fax:507-238-8271 Fax:+44 (0) 8452 466718 Email:sales@brecknellscales.com Email:sales@brecknellscales.co.uk http://brecknellscales.com http://brecknellscales.com AWT35-501860 Issue AB Page 23...
