Model CA-1000 / 2000
SAFETY :
The instrument complies with class II, CAT II 1000V of
the EN61010-1, and EN61010-2-032 standards.
Pollution degree 2 in accordance with IEC 664
indoor use.
The product complies with the requirements of the
following European community Directives : 89 /336 /
EEC (Electromagnetic Compatibility) and 73 / 23 / EEC
(Low Voltage) as ammended by 93 / 68 / EEC
(CE marking).
ACCURACY
Current Clamp Accuracy +
TOTAL
DMM Accuracy
ACCURACY
®
An ISO 9001:2008 Company
Navin.com/D.drive/sandeep gupta/New catlog Dec 2011/CA 1000 & CA 2000.cdr
®
AC/DC CURRENT CLAMP ADAPTOR
ELECTRICAL SPECIFICATIONS : CA-1000 / CA-2000
Accuracy is ± (% of reading + number of digits) at 23°C ± 5°C, 70% R.H. Maximum.
CURRENT CLAMP ACCURACY :
DC CURRENT
Range
0 ~ 400 A
400 A ~ 800
800 A ~ 1000 A
1000 A ~ 2000 A*
Overload Protection : 1200A for 60 sec.
*2000A in model CA 2000
G-17, Bharat Industrial Estate, T. J. Road, Sewree (W), Mumbai - 400 015. INDIA.
Sales Direct.: 022 -2 4156638,
Email : kusam_meco@vsnl.net,
FEATURES :
Basic Accuracy : 1.5%rdg + 2A

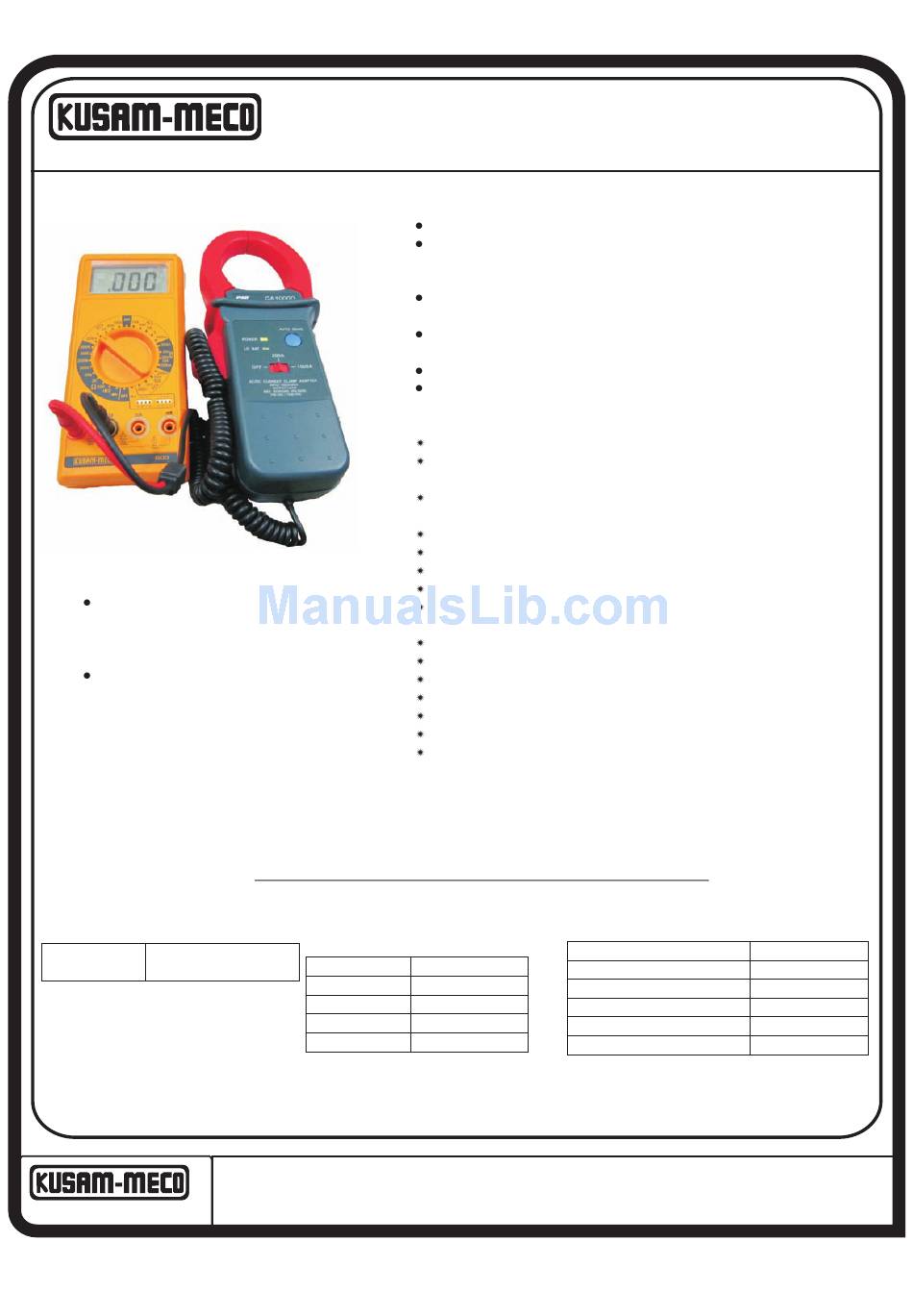

CA1000/CA2000 Current Clamp is a transducer which will allow your multimeter to measure
electrical Current upto 500/1000/2000 amperes AC or DC, with a Frequency response
upto 400Hz.
The clamp is built with a design of finger guard which ensures user operating the clamp
under a safety situation, with a rugged case that is shock resistant and fire-retardant.
When measuring current with this clamp, there is no need to break a circuit or to affect
the isolation.
It can be used for waveform analysis by connecting it to an oscilloscope.
Auto Zero function
GENERAL SPECIFICATIONS :
Jaw Opening Size : 57mm conductor, 70 x 18 mm bus bars
Measuring Range : 0 to 1000A AC or DC max. (Model CA 1000)
0 to 1500A AC or 0 to 2000A DC max. (Model CA 2000)
Output : 0 to 1V rms or DC with > 1 Meg Ohms input impedance (Model CA 1000)
0 to 1.5V rms or 0 to 2V DC with > 1 Meg Ohms input impedance (Model CA 2000)
Transfer Rate : 1mV / 1A
System Accuracy : Current clamp accuracy + DMM accuracy
Operating Temperature : 0°C ~ 50°C; at < 70% R.H.
Storage Temperature : -20°C to 60°C; < 80% R.H.
Temperature Coefficient : 0.1 x (specified accuracy) / 1°C
(0°C to 18°C, 28°C to 50°C)
Altitude : 6561.7 feet (2000M)
Output : Coil cable with straight banana plug.
Max. wire length : 3.5 meter when fully stretched.
Low battery indicator : Red LED lighting.
Power Supply : 9V DC battery
Dimension : 100(W) x 224(L) x 40(H) mm
Weight : Approx. 490 gms. (Including battery)
ACCESSORIES :
Carrying Case, Battery installed & User's manual.
Accuracy
± (1.5% rdg + 2 A)
A ± (2.5% rdg + 2 A)
± (3.5% rdg + 3 A)
± (3.5% rdg + 3 A)
maximum.
All Specifications are subject to change without prior notice
Tel. : 022-241224540, 24181649,
5 FUNCTIONS RANGES
AC CURRENT (Average Sensing)
RANGE
0 - 400 A / 50 Hz - 60 Hz
0 - 400 A / 61 Hz - 400 Hz
400 A - 1000 A / 50 Hz - 60 Hz
400 A - 1000 A / 61 Hz - 400 Hz
1000 A - 1500 A*
Overload Protection : 1200A for 60 sec. maximum.
*1500A in model CA 2000
Fax : 022 - 24149659
Website : www.kusamelectrical.com
ACCURACY
± (1.5% rdg + 2 A)
± (3.5% rdg + 2 A)
± (2.0% rdg + 3 A)
± (3.5% rdg + 3 A)
± (3.5% rdg + 3 A)
