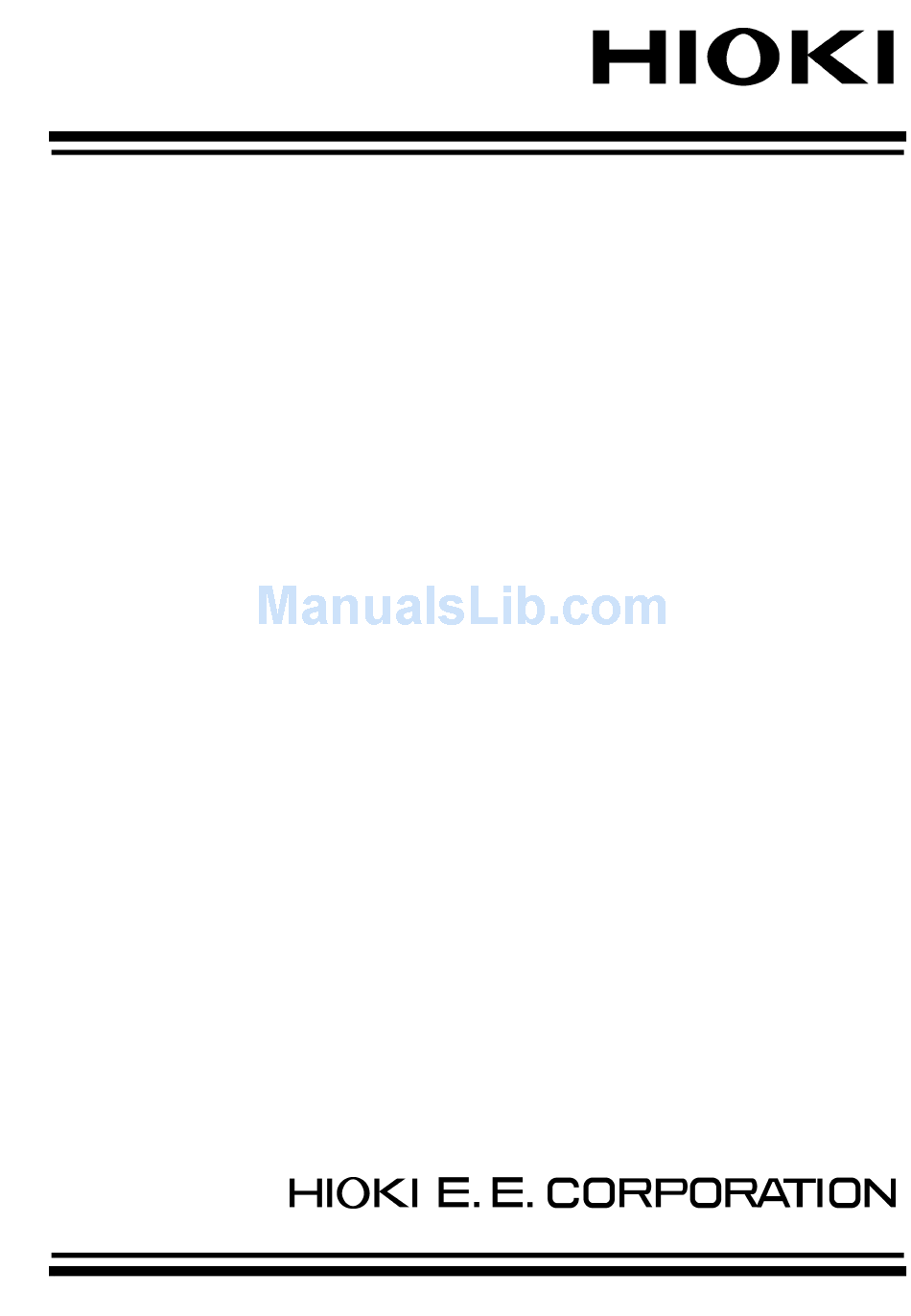

INSTRUCTION MANUAL
3661-20
OPTICAL POWER METER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3661-20 and is the answer not in the manual?

Questions and answers

Related Manuals for Hioki 3661-20

Summary of Contents for Hioki 3661-20

  • Page 1 INSTRUCTION MANUAL 3661-20 OPTICAL POWER METER...

  • Page 3: Table Of Contents

    Contents C o n t e n t s Introduction ............. 1 Inspection ............... 2 Safety Notes ............3 Usage Notes ............6 Chapter 1 Overview Product Overview ......... 11 Features ..........12 Parts Names and Functions ....13 Chapter 2 Measurement Preparations Connecting Connectors ......
  • Page 4 Contents Chapter 5 Using the Supplied Software35 Installation ..........35 5.1.1 Installing Driver ........36 5.1.2 Installing Application Software ..46 Connecting the Meter to a PC ....49 Transferring Measurement Data ...52 Erasing Measurement Data ....54 Programming Measurement Wavelengths . 55 Chapter 6 Specifications Measurement Specifications ....59 General Specifications ......62 Chapter 7 Maintenance and Service...

  • Page 5: Introduction

    Introduction Thank you for purchasing the HIOKI “3661-20 OPTICAL POWER METER”. To obtain maximum performance from the product, please read this manual first, and keep it handy for future refer- ence. • Windows is a registered trademark of Microsoft Corporation.

  • Page 6: Inspection

    Using the product in such conditions could cause an electric shock, so contact your dealer or Hioki representative for repair. • Before using the product the first time, verify that it operates normally to ensure that the no dam- age occurred during storage or shipping.

  • Page 7: Safety Notes

    Safety Notes This product is designed to conform to IEC 61010 Safety Standards, and has been thor- oughly tested for safety prior to shipment. However, mishandling during use could result in injury or death, as well as damage to the product. Be certain that you understand the instructions and precautions in the man- ual before use.
  • Page 8 The following symbols in this manual indicate the relative importance of cautions and warnings. Indicates that incorrect operation presents an ex- treme hazard that could result in serious injury or death to the user. Indicates that incorrect operation presents a sig- nificant hazard that could result in serious injury or death to the user.
  • Page 9 Measurement categories (Overvoltage catego- ries) To ensure safe operation of measurement instru- ments, IEC 61010 establishes safety standards for various electrical environments, categorized as CAT I to CAT IV, and called measurement catego- ries. These are defined as follows. Secondary electrical circuits connected to an CAT I AC electrical outlet through a transformer or similar device.
  • Page 10 The measurement categories comply with the Over- voltage Categories of the IEC60664 Standards.

  • Page 11: Usage Notes

    Usage Notes Follow these precautions to ensure safe operation and to obtain the full benefits of the various func- tions. • When cleaning the connector of a optical fiber cable, never look directly into the end of the optical fiber cable or observe it through a magnifying glass if the cable is connected to an operating optical output device as this can lead to eye damage or...
  • Page 12 • Do not store or use the product where it could be exposed to direct sunlight, high temperature or humidity, or condensation. Under such condi- tions, the product may be damaged and insula- tion may deteriorate so that it no longer meets specifications.
  • Page 13 Handling Optical Fiber Cable Follow the precautions below to prevent damage to the optical fiber cables. • Do not insert at an angle. • Do not bend the cable at the neck of the con- nector. • Do not bend or twist. •...
  • Page 14 Never use abrasives or solvent cleaners. • Hioki shall not be held liable for any problems with a computer system that arises from the use of this CD-R, or for any problem related to the...

  • Page 15: Chapter 1 Overview

    1.1 Product Overview Chapter 1 Overview 1.1 Product Overview The 3661-20 OPTICAL POWER METER is an optical power measuring instrument for optical fiber cables. The meter has two measurement modes: optical-power measurement mode and optical-loss measurement mode. In optical-loss measurement mode, the meter calculates optical loss by using the measurement and the reference value stored in the memory.

  • Page 16: Features

    1.2 Features 1.2 Features Two Measurement Modes (Optical power measurement mode) Measures the optical power of the cable con- nected to the meter. (Optical loss measurement mode) Stores a reference measurement in advance, then takes a measurement and calculates optical loss from the measurement and the reference.

  • Page 17: Parts Names And Functions

    1.3 Parts Names and Functions 1.3 Parts Names and Functions Front Connector adapter Detector Control keys Attach the connector adapter to the detector. Connector Choose the FC or SC type according to the Adapter type of cable connector to be connected (a second adapter is optional).
  • Page 18 1.3 Parts Names and Functions Control Keys Turns the power of the meter on and off. Power ON: Hold down the key for approxi- mately two seconds to turn the power on. If it is depressed for approximately five seconds, (Power switch) the auto power save function is disabled.
  • Page 19 1.3 Parts Names and Functions Display (LCD) Auto power save indicator Optical power/loss Battery indicator Measurement wavelength Reference Memory data Memory address Display the measurement mode. Optical Power/ POWER : Optical power measurement mode Loss LOSS : Optical loss measurement mode Lights when the auto power save function is enabled.
  • Page 20 1.3 Parts Names and Functions Rear Setscrew Setscrew to fasten the battery cover Battery cover Cover for the battery 7.1 "Battery Replacement" (63 page) Upper Lower USB connection terminal Terminal to connect a USB cable.

  • Page 21: Chapter 2 Measurement Preparations

    2.1 Connecting Connectors Measurement Chapter 2 Preparations 2.1 Connecting Connectors When cleaning the connector of a optical fiber cable, never look directly into the end of the optical fiber cable or observe it through a magnifying glass if the cable is connected to an operating optical output device as this can lead to eye damage or visual impediment.

  • Page 22: Connecting Fc-Type Connector

    1. Insert the end face (ferrule) of the optical fiber cable into the connector adapter on the meter. Make sure that the protrusion on the cable's optical connector fits into the slot on the connector adapter. 2. Rotate the knurled nut (connecting nut) to tighten. Optical fiber cable 3661-20...

  • Page 23: Connecting Sc-Type Connector

    Fit the protrusion on the cable's optical connector into the slot on the connector adapter. Push the connector in until it clicks. Optical fiber cable 3661-20 The 9735, 9736, and 9737 (optional) are optical fiber cables with ordinary optical connectors, not a master connector.

  • Page 24: Turning On/Off Power

    2.2 Turning ON/OFF Power 2.2 Turning ON/OFF Power Power ON Hold down the key for approximately two seconds. The LCD screen lights and the power is turned on. If the battery indicator ( in top right corner) is on when the power is turned on, the battery is running low.

  • Page 25: Measurement Wavelength Programming

    2.3 Measurement Wavelength Programming 2.3 Measurement Wavelength Programming Wavelengths to be used for measurement are pro- grammed in the meter before measuring. • Measurement wavelengths are programmed using the supplied software. Programming measurement wavelengths → 5.5 "Programming Measurement Wavelengths" (55 page) •...
  • Page 26 2.3 Measurement Wavelength Programming...

  • Page 27: Chapter 3 Measurement

    3.1 Optical Power Measurement Chapter 3 Measurement Performing optical power measurement and opti- cal power loss measurement using a optical fiber cable. 3.1 Optical Power Measurement Perform optical power measurement using a opti- cal fiber cable. 1. Press the DISPLAY POWER/LOSS key to select optical power measurement mode.
  • Page 28 2. Pressing the (Wavelength select) key repeatedly loads displays each programmed wavelength. 3. Connect the cable to be measured to the meter. 2.1 "Connecting Connectors" (17 page) 3661-20 Cable to be measured 4. The optical power measurement appears on the LCD.

  • Page 29: Optical Loss Measurement

    Store a measurement to be used as a reference for optical loss measurement. 1. Connect the light source and the meter using the reference cable (a optical fiber cable used as a reference). 2.1 "Connecting Connectors" (17 page) Reference cable Light Source 3661-20...
  • Page 30 3.2 Optical Loss Measurement 2. Press DISPLAY POWER/LOSS key to select optical power measurement mode. "POWER" appears in the top left corner of the screen. • For proper measurements, the measurement wavelength has to match that of the light source. •...
  • Page 31 3.2 Optical Loss Measurement 4. Hold down the SET REF key for approximately three seconds. "REF.DATA" starts blinking and the measured optical power is stored as a reference value. The measurement mode changes from optical power to optical loss and the measurement reading becomes approximately 0.00 dB.

  • Page 32: Optical Loss Measurement

    3.2 Optical Loss Measurement 3.2.2 Optical Loss Measurement 1. Press the DISPLAY POWER/LOSS key to select optical loss measurement mode. "LOSS" appears in the top left corner of the screen. • For proper measurements, the measurement wavelength has to match that of the light source. •...
  • Page 33 Connect the other end via the fiber optical adapter to the reference cable connected to the light source. Cable to be measured Reference cable Fiber optical adapter Light source 3661-20 4. The optical loss of the cable to be measured appears on the LCD.
  • Page 34 3.2 Optical Loss Measurement...

  • Page 35: Chapter 4 Saving/Deleting Measurement Data (Memory Function)

    4.1 Storing Measurement Data Saving/Deleting Measurement Data Chapter 4 (Memory Function) • The optical power measurements/optical loss measurements are stored in the memory. • Up to 1000 measurements (addresses 000 to 999) per measuring wavelength are stored. • Data can be transferred to a PC using the bun- dled application software.
  • Page 36 4.1 Storing Measurement Data 2. Press the DISPLAY MEMORY/REF key to display data in the memory. ("MEM.ADDRESS" and "MEM.DATA" appears on the LCD.) 3. Press the ADDRESS key to set the address of the memory to be stored. : Moves to lower numbers. : Moves to higher numbers.

  • Page 37: Viewing Stored Measurement Data

    4.2 Viewing Stored Measurement Data 4.2 Viewing Stored Measurement Data View measurement data stored for a wavelength. λ 1. Press the (Wavelength select) key to select the measurement wavelength of which you wish to view the data. 2. Press the DISPLAY MEMORY/REF key to display data in the memory.

  • Page 38: Deleting All Measurement Data

    4.3 Deleting All Measurement Data 4.3 Deleting All Measurement Data • Deletes all the measurements stored for a mea- surement wavelength. (All Delete) • A complete deletion of the measurement data can be also performed using the bundled data transter software. 5.4 "Erasing Measurement Data"...

  • Page 39: Installation

    USB Ver.1.1 or later (Only one meter can be connected to a PC at a time.) Contents of CD-R English Installation setup file for English OS Japanese Installation setup file for Japanese OS hi3661.inf Driver installation file hiusb36.sys Device driver for the 3661-20’s USB...

  • Page 40: Installing Driver

    5.1 Installation 5.1.1 Installing Driver 1. Turn on the meter. 2. Connect the meter to the PC using the supplied USB cable. • Only one meter can be connected to a PC at a time. • Do not connect or disconnect the USB cable while the meter is in operation.
  • Page 41 5.1 Installation The driver installation procedure is explained for each OS as below. WindowsXP 1. Insert the bundled CD-R Hioki 3661 USB Utility into the CD-ROM drive. 2. The "Found New Hardware Wizard" dialog box appears. Check "Install the software automatically" and...
  • Page 42 5.1 Installation 3. Click the [Continue Anyway] button. After the button is clicked, Windows starts to copy the files. When the software is scanned by the OS, a warning saying that this software has not been certified by Microsoft is appear. Ignore the warning and continue the installation.
  • Page 43 1. The "Found New Hardware Wizard" dialog box appears. Click the [NEXT] button. 2. Insert the bundled CD-R Hioki 3661 USB Utility into the CD-ROM drive. 3. Check "Search for a suitable driver for my device" and click the [Next] button.
  • Page 44 5.1 Installation 4. Check "CD-ROM drive" (leave all other boxes blank). Click the [Next] button. 5. Click the [Next] button.
  • Page 45 5.1 Installation 6. Click the [Finish] button. 7. When the "Found New Hardware Wizard" dialog box has disappeared, remove the CD-R from the CD-ROM drive.
  • Page 46 5.1 Installation WindowsMe 1. Insert the bundled CD-R Hioki 3661 USB Utility into the CD-ROM drive. 2. The "Add New Hardware Wizard" dialog box appears. Check "Automatic search for a better driver" and click the [Next] button. 3. Click the [Finish] button.
  • Page 47 1. The "Add New Hardware Wizard" dialog box appears. Click the [Next] button. 2. Check "Search for the best driver for your device" and click the [Next] button. 3. Insert the bundled CD-R Hioki 3661 USB Utility into the CD-ROM drive.
  • Page 48 5.1 Installation 4. Check "CD-ROM drive" (leave all other boxes blank). Click the [Next] button. 5. Click the [Next] button. After the button is clicked, Windows starts to copy the files.
  • Page 49 5.1 Installation 6. After a short time, the screen below appears; click the [Finish] button. 7. When the "Add New Hardware Wizard" dialog box has disappeared, remove the CD-R from the CD-ROM drive.

  • Page 50: Installing Application Software

    5.1.2 Installing Application Software Installing 1. Close all currently active applications on the 2. Insert the CD-R Hioki 3661 USB Utility supplied with the instrument into the CD-ROM drive. 3. Open the folder [English] included on the CD- R, then execute Setup.exe.
  • Page 51 5.1 Installation To set up the installing destination: Select [Custom] and click [Next]. Click [Change] in the "Custom Setup" window, then specify the installing destination folder. To install by default: Select [Complete] and click [Next]. 6. Click [Install].
  • Page 52 5.1 Installation 7. When installation ends, click [Finish] in the checking window. Installation is now complete. Select [Program] - [HIOKI] - [Hioki 3661 USB Utility] from the [Start] menu of Windows to acti- vate the application. Uninstallation 1. Select [Setup] -...

  • Page 53: Connecting The Meter To A Pc

    PC with the USB cable. When the APS function is on, if there is no communication for approximately ten minutes the power of the meter is automatically turned off. 3. Start the Hioki 3661 USB Utility.
  • Page 54 5.2 Connecting the Meter to a PC 4. The list of measurement wavelengths and measured values is displayed.
  • Page 55 PC. Avoid connecting and dis- connecting the meter from the PC unnecessarily, as this could reduce battery charge capacity. • When conforming the connection of the 3661 with the PC, select [Communication]-[Check connection] on the Hioki 3661 USB Utility menu bar.

  • Page 56: Transferring Measurement Data

    PC in CSV format. 1. Connect the meter to the PC using the supplied USB cable. 2. Start the Hioki 3661 USB Utility. 5.2 "Connecting the Meter to a PC" (49 page) 3. Transfer measurement data from the meter's memory.
  • Page 57 4. Decide the destination to save the data, and click [Save]. A comment can be attached to the file. Example of Transferred Data (Excel display) 5. Exit the Hioki 3661 USB Utility. 6. Disconnect the USB cable from the meter and the PC.

  • Page 58: Erasing Measurement Data

    (Erase All). 1. Connect the meter to the PC using the supplied USB cable. 2. Start the Hioki 3661 USB Utility. 5.2 "Connecting the Meter to a PC" (49 page) 3. Select [Communication]-[Erase] on the Hioki 3661 USB Utility menu bar, or left click (Erase) on the tool bar.

  • Page 59: Programming Measurement Wavelengths

    1. Connect the meter to the PC using the supplied USB cable. 2. Start the Hioki 3661 USB Utility. 5.2 "Connecting the Meter to a PC" (49 page) 3. Select [Communication]-[Edit] on the Hioki 3661 USB Utility menu bar, or left click (Edit) on the tool bar to display the Wavelength Settings screen.
  • Page 60 5.5 Programming Measurement Wavelengths Screen Description Delete Deletes selected wavelength data from the "Wavelength list". Adds the wavelength specified by "Wavelength [nm]" "Wavelength list". Asterisks (*) indicate added wave- lengths. If a wavelength cannot be added, delete an existing wave- length first (a maximum of eight wavelengths can be programmed).
  • Page 61 5.3 "Transferring Measurement Data" (52 page) 7. Left click [Close] to close the Wavelength Set- tings screen. 8. Exit the Hioki 3661 USB Utility. 9. Disconnect the USB cable from the meter and the PC.
  • Page 62 5.5 Programming Measurement Wavelengths...

  • Page 63: Chapter 6 Specifications

    Measuring range -60 dBm to +9 dBm, auto-ranging ± ± Measuring 0.22 dB ( 5% ) accuracy (Conditions for guarantee) Wavelength: Hioki's standard wavelength for 1310 nm or 1550 nm Power: -10 dBm, continuous wave (CW) Optical fiber: Single mode fiber, FC master connector, PC polishing...
  • Page 64 6.1 Measurement Specifications ± Operating ± 5°C (73 41°F), 80%RH or less temperature and humidity for guar- anteed accuracy Period of guaran- 1 year teed accuracy Resolution Optical power measurement: 0.01 dBm Optical loss measurement : 0.01 dB Maximum rating +10 dBm Detector type InGaAs...
  • Page 65 Programming measurement wavelengths (using the bundled application software) *: Hioki's Standard Wavelength The term "Hioki's standard wavelength" is used to avoid ambiguity in the conditions for the measurement accuracy guarantee. The calibration wavelength is a value inherent to a light source for adjustment and calibration.

  • Page 66: General Specifications

    6.2 General Specifications 6.2 General Specifications Rated power DC1.5 V X 4 supply LR6 alkaline battery 1.5 V X 4 Maximum rated 0.5 VA power Operating time Continuous measurement: Approx. 40 hours (Ambient temperature of 23°C (73°F)) Size Approx. 85W X 192H X 35D mm (3.35"W X 7.56"H X 1.38"D) (excluding projections) Weight Approx.

  • Page 67: Chapter 7 Maintenance And Service

    7.1 Battery Replacement Maintenance and Chapter 7 Service Never modify the instrument. Only Hioki service engineers should disassemble or repair the instru- ment. Failure to observe these precautions may result in fire, electric shock, or injury. 7.1 Battery Replacement • To avoid a shock hazard, disconnect the USB cable before replacing the batteries.
  • Page 68 7.1 Battery Replacement • The “ ” indicator appears when battery voltage becomes low. Replace the batteries as soon as possible. • Use the specified battery (LR6 alkaline battery) only. Other batteries, (manganese batteries, for example) run out more quickly than alkaline bat- teries.

  • Page 69: Attaching/Detaching Connector Adapter

    7.2 Attaching/Detaching Connector Adapter 7.2 Attaching/Detaching Connector Adapter The mating portions of the detector and the con- nector adapter are machined to a high degree of precision. Make sure that those portions are free of dust or other foreign substances before con- necting them.

  • Page 70: Attaching The Strap

    Attach both ends of the strap securely to the instrument. If insecurely attached, the instrument may fall and be damaged when carrying. Attaching the strap 3661-20 Insert each end of the strap through an installation slot on the instrument.

  • Page 71: Cleaning

    7.4 Cleaning 7.4 Cleaning 7.4.1 Cleaning the Product To clean the product, wipe it gently with a soft cloth moistened with water or mild detergent. Never use solvents such as benzene, alcohol, acetone, ether, ketones, thinners or gasoline, as they can deform and discolor the case.

  • Page 72: Cleaning Cable Connector

    7.4 Cleaning 7.4.3 Cleaning Cable Connector Use the 9738 OPTICAL CONNECTOR CLEANER to clean the connector of the optical fiber cable. When cleaning the connector of a optical fiber cable, never look directly into the end of the optical fiber cable or observe it through a magnifying glass if the cable is connected to an operating optical output device as this can lead to eye damage or visual impediment.
  • Page 73 7.4 Cleaning 1. Squeeze the lever of the 9738 OPTICAL CONNECTOR CLEANER and the shutter opens, revealing the cleaning cloth. 2. While squeezing the lever, gently press the end of the optical connector against the cleaning surfaces (cleaners held in the slot shown) at a right angle.

  • Page 74: Error Indication

    The calibration value may be cor- rupted. All the keys except for the key are disabled and you cannot perform measurement. (Data transfer by USB communications is not avail- able either.) The meter may be malfunctioning. Contact your vender or nearest Hioki office.

  • Page 75: System Reset

    7.6 System Reset 7.6 System Reset Turn on the power while holding down the ADDRESS . The screen shown below is displayed. After the system reset has been completed, the optical power measurement mode screen appears. Blinking Details of System Reset System reset initializes the following (returns them to default setting).

  • Page 76: Service

    • When sending the product for repair, remove the batteries and pack carefully to prevent damage in transit. Include cushioning material so the instrument cannot move within the package. Be sure to include details of the problem. Hioki can- not be responsible for damage that occurs during shipment.

  • Page 77: Chapter 8 Appendix

    8.1 Explanations Chapter 8 Appendix 8.1 Explanations Optical Power Measurement Assuming the energy of the input light to be mea- sured is "E" [mW], the measurement "P" is obtained as below. E [mW] P [dBm] ＝ 10log 1 [mW] P: Measurement [dBm] E: Energy of input light [mW] Optical Loss Measurement Loss of optical energy "Ploss"...

  • Page 78: Options

    8.2 Options 8.2 Options 9730 CARRYING CASE The carrying case houses the 3661-20 OPTICAL POWER METER, 3662/3663 LASER LIGHT SOURCE, connector adapters, reference cable, and 9738 OPTICAL CONNECTOR CLEANER. 9731 FC CONNECTOR ADAPTER FC connector adapter for the 3661-20 OPTICAL...
  • Page 79 SC-to-SC reference cable (Length: 2 m) 9737 SC-FC OPTICAL FIBER CABLE SC-to-FC reference cable (Length: 2 m) Hioki's optional optical fiber cables (9735, 9736 and 9737) are optical fiber cables with an ordinary optical connector. (They are not equipped with a master optical connector.)
  • Page 80 8.2 Options 9738 OPTICAL CONNECTOR CLEANER Cleaner for optical fiber cable connector 9739 SPARE CLEANER Refill for the 9738 OPTICAL CONNECTOR CLEANER (6-rolls)
