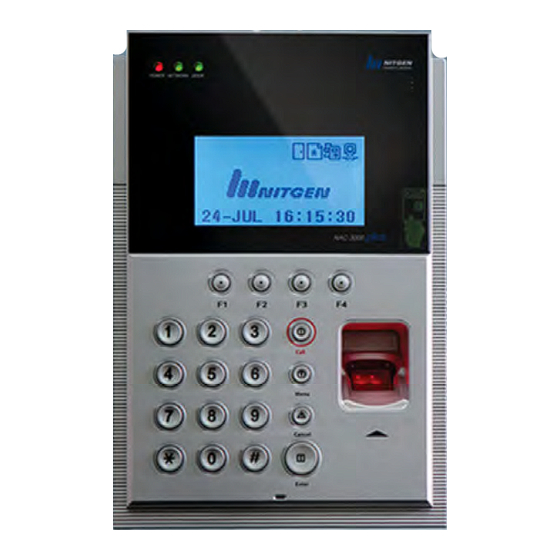

Nitgen NAC-3000 + Installation Manual

Fingerprint access controller
Hide thumbs Also See for NAC-3000 +:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for Nitgen NAC-3000 +

Summary of Contents for Nitgen NAC-3000 +

  • Page 2 Features and specifications are subject to change without notice. No part of this guide may be copied or reproduced for any purpose without the prior written authorization from NITGEN. NITGEN holds the copyright on the brands NITGEN and NITGEN logo. To Contact Us Tel. +82-80-060-1600 (Toll Free) Fax.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. BEFORE INSTALLATION ................ 4 ...................... 4 1.1 T O INSTALL ..................4 1.2 P RODUCT PACKAGE 2. INSTALLATION ENVIRONMENT............. 6 3. SYSTEM CONFIGURATION ..............7 ....................7 3.1 N ETWORK MODE ..................8 3.2 S TANDALONE MODE 4.

  • Page 4: Before Installation

    1. Before Installation 1.1 To install Please follow the installation guide because the performance can be decreased if the product is installed incorrectly. 1.2 Product package Product Pictures Terminal Access Controller Adapter Supplying power for the terminal Power cord Bracket Fastening terminal - 4 -...
  • Page 5 Bolt Fastening terminal Fastening bracket Housing Connecting door cable Receptacle Housing & Connecting Receptacle & interphone cable Cable S/W CD - 5 -...

  • Page 6: Installation Environment

    2. Installation Environment Please keep in mind the following conditions when you install the product. You might need to obtain the user's consent if necessary. ① This product is originally designed to install indoors. If you have to install it outdoors, however, do not expose the terminal to direct sunlight, snow or rain.

  • Page 7: System Configuration

    3. System Configuration 3.1 Network mode Terminals are connected by network and it can be remote control. Server PC Client PC Network (TCP/IP) Terminal Locking External Interphone Door Open S/W Device Speaker - 7 -...

  • Page 8: Standalone Mode

    3.2 Standalone mode One terminal is used independently. All settings such as user registration, deletion, and access control are performed in the terminal alone. Locking Device Interphone Door Open S/W - 8 -...

  • Page 9: Installation

    4. Installation ☞ The overall installation procedure is as follows: ① Fasten the bracket ② Attach other devices except terminal(locking device, interphone, etc.) ③ Connect the external cables ④ Fasten the terminal 4.1 Fastening the auxiliary plate ① Decide where you want to install the product with the bracket and make 2 holes (Φ30) for cable insertion to the wall as shown in the shaded area in [Figure 1].

  • Page 10: Attaching Other Devices Except Terminal

    4.2 Attaching other devices except terminal ☞ You can attach the following devices. Refer to the specifications of each device for more information on installation. ① interphone ② Locking device ③ Door Open button ④ External Speaker (Main b/d V4.24 or later) ■...
  • Page 11 ④ ⓒ Power cable ( in Figure 2) ⑤ ⓔ External Speaker Cable ( in Figure 2) ⑥ ⓕ WIEGAND & RS232 Cable ( in Figure 2) [Figure 2] Main Board V4.24 When installing the Main Board V3.04 (Figure 2-1), Please refer to the [Appendix 1 Connecting the External Cable in Main Board V3.04] [Figure 2-1] Main Board V3.04...
  • Page 12 4.3.1 Connecting the interphone cable (J6) Schematic Housing Receptacle Cable PIN NO. Feature 51021-0200/ 50058-8000/ UL Cable, INTER_1 5264-02 5263PBT 24 ~ 28AWG INTER_2 ☞ When connecting the cable to the connector, please pay attention to the terminal numbers. Interphone Interphone Door Open S/W Contact_A Common...
  • Page 13 4.3.2 Connecting the door control cable (J5) ■ Specifications of the cable and material Housing Receptacle Cable 5264-06 5263PBT UL Cable, 24~28AWG ☞ Connection Note ① Pay attention to terminal numbers when connecting the cable to the connector. ② Contact output is used when installing on the auto door. So make sure to set the terminal [JP3] as OPEN.
  • Page 14 ■ How to connect cables by types of locking devices EM Lock Deadbolt Strike Contact_A Power(Fail Secure) Common Contact_B Power(Fail Safe) Door Monitor Door Monitoring Signal Door Open Door Open Button Deadbolt/Strike/Electronic Magnetic-Lock Fail Feature Fail Door Door Secure Safe Type Monitoring Open Type...
  • Page 15 Auto Door Feature Normal Normal Door Door Open Close Monitoring Open Open button Open Door Open button button Monitor Door Monitoring (12/24V) CONTACT_B Contact COMMON Contact Contact CONTACT_A Contact *The teminal [JP3]=>Open 4.3.3 Connecting the network cable (J14) ① If there's no connector for the network cable, connect as follows (pay attention to PIN numbers): Schematic Housing...
  • Page 16 4.3.4 Connecting the power cable (J16) Connect the DC cable of the adaptor to the connector [J16]. 'NOTICE : When you connect extend cable, make sure the polarity(+, -) are correct' 4.3.5 External Speaker Cable (J4) Schematic Housing Receptacle Cable PIN No Feature UL Cable,...

  • Page 17: Fastening The Terminal

    4.4 Fastening the terminal ①As shown in [Figure 3], insert the grooves of the terminal into two hooks of the fastened bracket. [Figure 3] ② As shown in [Figure 4], use 2 bolts to fasten the terminal to the bracket. [Figure - 17 -...

  • Page 18: Check After Installation

    For more information, please refer to "NAC-3000 Terminal User Manual" and "NAC-3000 Software User Manual". ① When power is supplied, the initial screen with NITGEN logo will appear. ② Press the menu button to choose System Option > Terminal Mode and check if the terminal is in SO mode.

  • Page 19: Appendixⅰ

    Appendix Ⅰ Connecting the External Cable in Main Board V3.04 ☞ You should connect the following external cables. But you don't have to install the interphone and network cables if the customer doesn't request them. ① ⓐ Interphone cable ( in Figure A) ②...
  • Page 20 1.1 Connecting the interphone cable (J6) Schematic Housing Receptacle Cable PIN NO. Feature 51021-0200/ 50058-8000/ UL Cable, INTER_1 5264-02 5263PBT 24 ~ 28AWG INTER_2 ☞ When connecting the cable to the connector, please pay attention to the terminal numbers. Interphone Interphone Door Open S/W Contact_A Common...
  • Page 21 1.2 Connecting the door control cable (J5) ■ Specifications of the cable and material Housing Receptacle Cable 5264-06 5263PBT UL Cable, 24~28AWG ☞ Connection Note ① Pay attention to terminal numbers when connecting the cable to the connector. ② Contact output is used when installing on the auto door. So make sure to set the terminal [JP3] as OPEN.
  • Page 22 Deadbolt/Strike/Electronic Magnetic-Lock Fail Feature Fail Door Door Secure Safe Type Monitoring Open Type Open button Open Door Open button button Monitor Door Monitoring (12/24V) VCC(12/2 CONTACT_B COMMON (COM) VCC(12/2 CONTACT_A *The teminal [JP3]=>Close *Pay attention to connecting [Door Monitoring] Signal, Main b/d V3.04 have to connected No.3 and 5 Auto Door Feature...
  • Page 23 1.3 Connecting the network cable (J14) ①If there's no connector for the network cable, connect as follows (pay attention to PIN numbers) Schematic Housing Cable PIN No Feature RJ45, 8PIN ②After you finish the above connection, use the [Network Connection Cable] to connect to the connector [J14] (ⓓ...

  • Page 24: How To Install External Case

    Appendix II How to install External case 1. Parts List ① Externternal case ② Auxiliary case ③10 Torx bolts ④ 4 Phllips bolts - 24 -...

  • Page 25: Installation

    2. Installation ① Screw 2 Phillips bolts in tightly to fasten the Auxiliary case on the wall as shown in [Figure2] [Figure1] [Figure2] ② As shown in [Figure4], use 4 Torx bolts to fasten the bracket into the auxiliary case [Figure3] [Figure4] - 25 -...
  • Page 26 ③ Align the Terminal with the bracket and fasten it with 2 Torx bolts as shown in [Figure6] [Figure5] [Figure6] ④ If you want to connect the cables such as power, network in the side of External case, then make a hole as shown [Figure 7] ⑤...

  • Page 27: Appendix Iii

    Appendix III To prevent the Static It is specified from August, 2007 ① As shown [Figure1], the NAC-3000 is originally designed to be grounded the coiled temper switch to the bracket, therefore please pay attention to do not separate the cables or break out the temper swich. [Figure1] ②...
