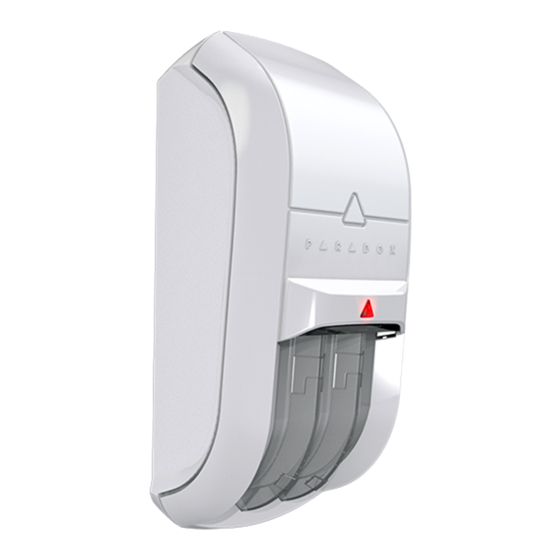

Paradox NV75M Installation Manual

NV75M/MX
Installation Manual V1.0
16 Meter Indoor Dual
Mironel Optics with Anti-Mask
and Pet Immunity Dual Detector
General Description
The NV75M/MX is an indoor industry-leading detector
providing superior 16 meter detection with rock solid stability
thanks to the revolutionary dual Mironel Mirror/Fresnel PIR
optics. Combined with Paradox true Pet Immunity and best-
in-the industry active Anti-Mask technology (EN Grade 3).
The NV75M/MX provides an unmatched high security
solution for any indoor installation.

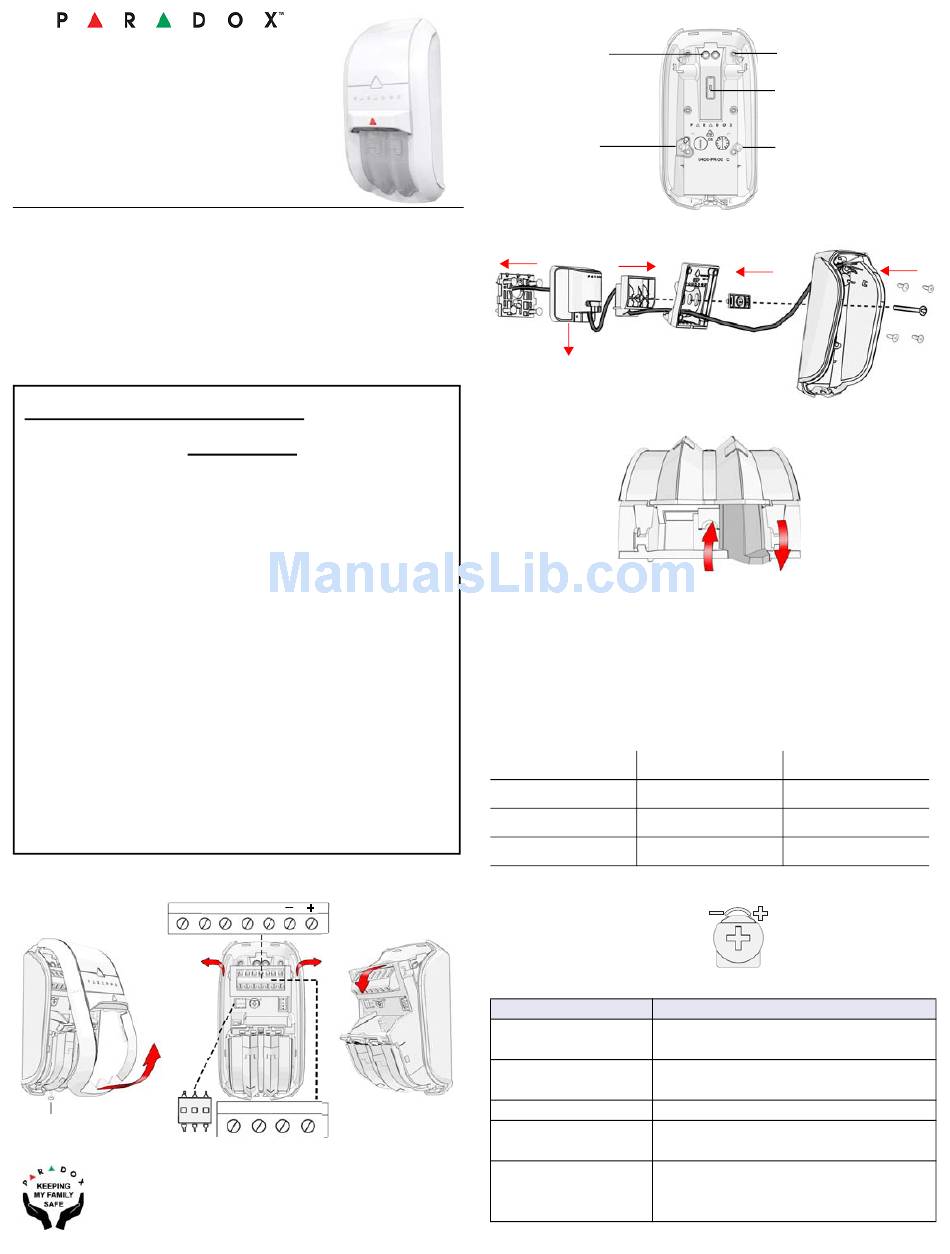

Installing the NV75M/MX (Fig. 1)
Please Read
Installation Height:
Pet Immune ON - 2.0m/6.6ft to 2.4m/7.8ft
Pet Immune OFF - 2.0m/6.6ft to 2.8m/9ft (lever down)*
*For installations higher than 2.6m, when needed, tilt
the detector down a few degrees for best detection
results; use of a bracket is recommended.
Power Up (30 sec.):
Powering up the detector takes about 30 seconds,
indicated with green/red flashing; indicates PIR
stabilizing.
Anti-Mask Calibration:
Once detector is stabilized, as mentioned above, open
and close the tamper to initiate. Anti-Mask calibration
may take up to 60 seconds. Keep away from the
detector, at least 2 meters / 6 feet during calibration,
indicated by flashing green/red LED. Once completed,
the detector is ready.
Step 1
COM
NV75M
1 2 3
Cover Tamper
(Table 1)
paradox.com
Step 2 Step 3
+
ALM COM TMP AM
YEL BLK
GRN RED
NV75MX
Wall Mount
Wiring Entry x2
Tamper Screw
Wall/Corner
Bracket Mount
1 3
2
Creep Zone/Pet Selection
UP - Pet
Remove detector assembly as described in Fig. 1. When
selector is UP, Pet Mode; when DOWN, Creep Zone is
active and there is no Pet Immunity. Above 2.4m Pet
Immune should be OFF (lever down Pet OFF, see
installation height note*.
Dip Switch Settings
DIP SWITCH
1. LED
2. EDGE
3. PET IMMUNE
Sensitivity Settings
LED Display
Feature
Tamper open Green: ON for 0.3 seconds every 30
seconds
PIR sensitivity level Green: Flashes 1-5 times according
setting to the selected level
Alarm detection Red: ON for 3 seconds
Booting/Tamper Green/Red alternating flashes
close for 45 seconds
Anti-mask detection Flashes orange rapidly (pre-alarm
state) and then constant orange
when in alarm.
Wall Mount x6
Bracket Adjustment
Screw Opening
Corner Mount
x4
4
DOWN - Creep
Table 1
OFF ON (DEFAULT)
OFF ON
DUAL SINGLE
OFF ON
11m*
9m 13m
7m 16m
LED Status Indicator
NV75M-EI00 04/2016
5
