AMX MSA-MMK/2-10 Quick Start Manual

MSA-MMK/2 Multi Mount Kits
The MSA-MMK/2-xx Multi Mount Kits are designed to mount Modero S Series Wall
Mount Touch Panels and AMX RoomBook Scheduling Panels to any smooth surface
without drilling or cutting, enhancing the beauty and functionality of glass, marble and
stone architecture with the sleek style of an AMX control interface (FIG. 1).
Modero S Series
Touch Panel
MSA-MMK
Multi Mount Kit
Mounting surface
FIG. 1 MSA-MMK MULTI MOUNT KIT (EXAMPLE INSTALLATION)
Models Available/Panel Compatibility
There are several versions of the Multi Mount Kits available to accommodate both
Modero S Series and AMX RoomBook Scheduling Touch Panels:
MODELS AVAILABLE/PANEL COMPATIBILITY:
Multi Mount Kit For use with:
MSA-MMK-10
• MSD-1001-L (FG2265-01): 10.1" Modero S Series Landscape Wall
Mount Touch Panel
(FG2265-11)
• MSD-1001-L2 (FG2265-31): 10.1" Modero S Series Landscape Wall
MSA-MMK2-10
Mount Touch Panel
• RMBK-1001 (FG2265-40): 10.1" AMX RoomBook Scheduling Touch
(FG2265-21)
Panel
MSA-MMK-07 • MSD-1001-L (FG2265-01): 10.1" Modero S Series Landscape Wall
Mount Touch Panel
(FG2265-12)
• MSD-701-L2 (FG2265-32): 7" Modero S Series Landscape Wall Mount
MSA-MMK2-07
Touch Panel
(FG2265-22)
• RMBK-701 (FG2265-37): 7" AMX RoomBook Scheduling Touch Panel
MSA-MMK-43
• MSD-431-L (FG2265-03): 4.3" Modero S Series Landscape Wall Mount
Touch Panel
(FG2265-13)
"MMK2" Multi Mount Kits
The MSA-MMK2-10 and MSA-MMK2-07 Multi Mount Kits are intended for use with
second-generation "-L2" Modero S Series (Landscape/Wall Mount), as well as all AMX
RoomBook Scheduling touch panels.
Note that the installation procedure for the second-generation MMK2 versions of the
kits is essentially the same as the first-generation MMK kits, with only a minor change
to the top hook design.
Product Specif ications
PRODUCT SPECIF ICATIONS
Dimensions • MSA-MMK/2-10: 6.84" x 10.04" x 0.95" (17.37cm x 25.51cm x 2.40cm)
(HWD): • MSA-MMK/2-07: 4.88" x 7.38" x 0.91" (12.39cm x 18.75cm x 2.25cm)
• MSA-MMK-43: 3.42" x 5.04" x 1.04" (8.68cm x 12.81cm x 2.64cm)
Weight: • MSA-MMK/2-10: 0.25 lbs (113.40 g)
• MSA-MMK/2-07: 0.10 lbs (45.36 g)
• MSA-MMK-43: 0.03 lbs (22.68 g)
Included MSA-MMK/2-10:
Accessories:
• Back Box (60-2265-11)
• Modero S Multi Mount Cable Cover (2) (60-2265-32)
• Ethernet Cable, Clear, with 8-pin Flat Connector (ECA2265-02)
• UTP CAT.5E Black Snap-In Coupler (64-5968-01)
• Tape, Double-Sided (66-2265-25)
• HPG-10 HydraPort .75-Inch Grommet (FG570-10)
MSA-MMK/2-07:
• Back Box (60-2265-12)
• Modero S Multi Mount Cable Cover (2) (60-2265-32)
• Ethernet Cable, Clear, with 8-pin Flat Connector (ECA2265-02)
• UTP CAT.5E Black Snap-In Coupler (64-5968-01)
• Tape, Double-Sided (66-2265-25)
• HPG-10 HydraPort .75-Inch Grommet (FG570-10)
MSA-MMK/2-xx
Modero S Series Touch Panels & AMX RoomBook Scheduling Panels
PRODUCT SPECIF ICATIONS (CONT.)
Included
Accessories:
Dimensions
MSA-MMK/2-10

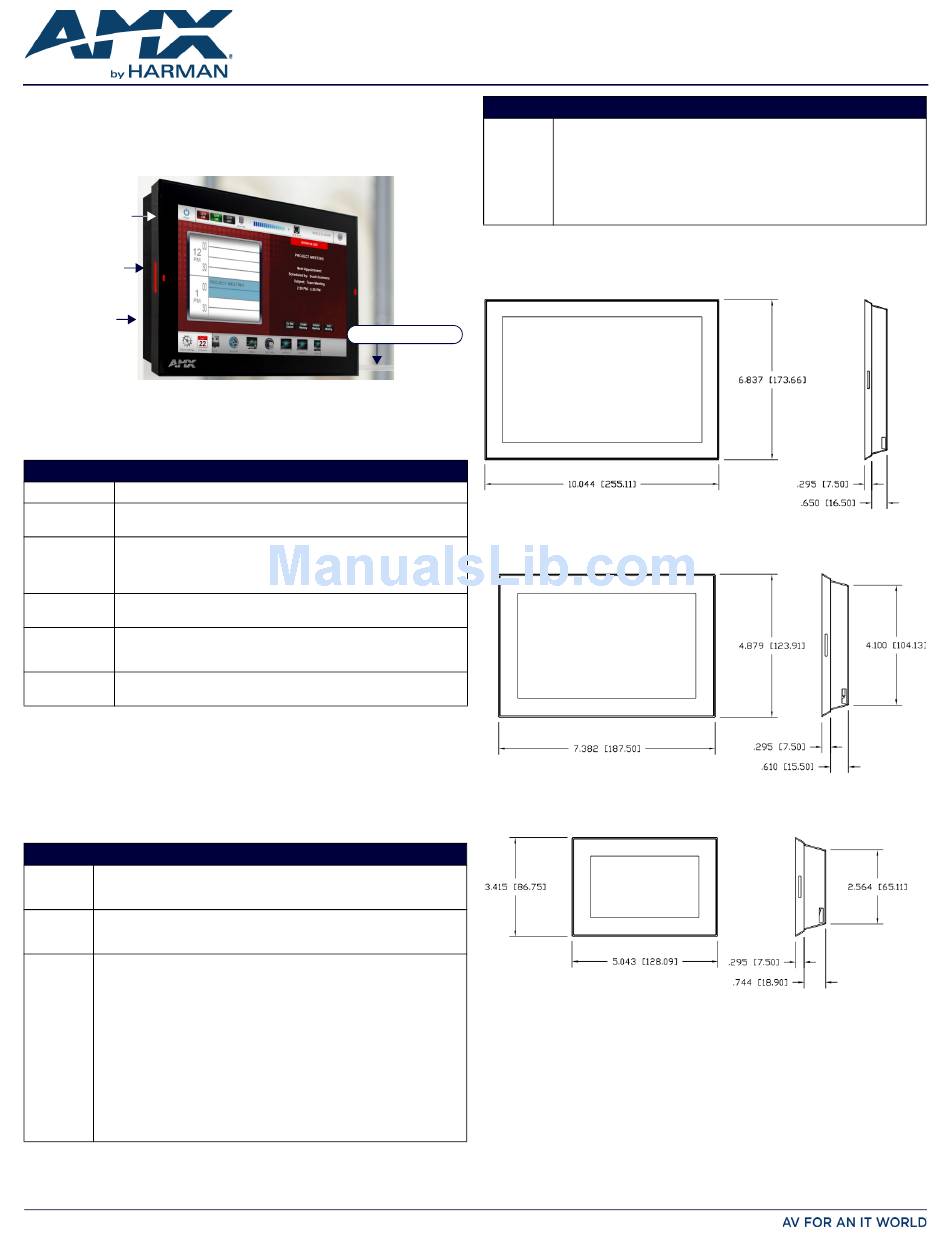

FIG. 2 provides the dimensions of the MSA-MMK-10 and MSA-MMK2-10:
Clear Ethernet cable
FIG. 2
MSA-MMK/2-07
FIG. 3 provides the dimensions of the MSA-MMK-07 and MSA-MMK2-07:
FIG. 3
MSA-MMK-43
FIG. 4 provides the dimensions of the MSA-MMK-43:
FIG. 4
Surface Preparation
Since the Multi Mount Kits are designed to be installed onto smooth surfaces, special
considerations must be made to prepare the surface. Before installation, place the back
of the Back Box to the surface and verify the final placement of the Multi Mount Kit and
touch panel.
The Back Box should not be placed anywhere where it may interfere with foot traffic or
with the operation of doors or other items in the immediate environment.
The surface where the Multi Mount Kit needs to be installed should be cleaned with
alcohol or another solvent that will not damage the surface, and then allowed to dry
fully before the Multi Mount Kit is installed.
Note: Do not touch the installation area or the tape strips with bare hands, as skin oil
from your f ingers may interfere with adhesion of the tape used for installation.
Multi Mount Kits for Wall Mount
MSA-MMK-43:
• Back Box (60-2265-13)
• Modero S Multi Mount Cable Cover (2) (60-2265-32)
• Ethernet Cable, Clear, with 8-pin Flat Connector (ECA2265-02)
• UTP CAT.5E Black Snap-In Coupler (64-5968-01)
• Ferrite (04-0052)
• Tape, Double-Sided (66-2265-25)
• HPG-10 HydraPort .75-Inch Grommet (FG570-10)
MSA-MMK/2-10: DIMENSIONS
MSA-MMK/2-07: DIMENSIONS
MSA-MMK-43: DIMENSIONS
