AMX MST-431 Quick Start Manual

Overview

®
The Modero S Series is a touch panel family sophisticated enough for room
control yet priced right for the most cost sensitive installations, including small
huddle spaces and dedicated room scheduling. The smallest of our Modero S
tabletop touch panels, the MST-431 4.3" Modero S Series Landscape Table Top
Panel (FG2265-07), still features the advanced technology empowering users to
conduct seamless meetings including VoIP, brilliant 24-bit color depth, PoE
connectivity, Bluetooth, USB and streaming video.
Sleep/Settings Button
(Front)
Microphone
USB Port
(Rear)
RJ-45 Port

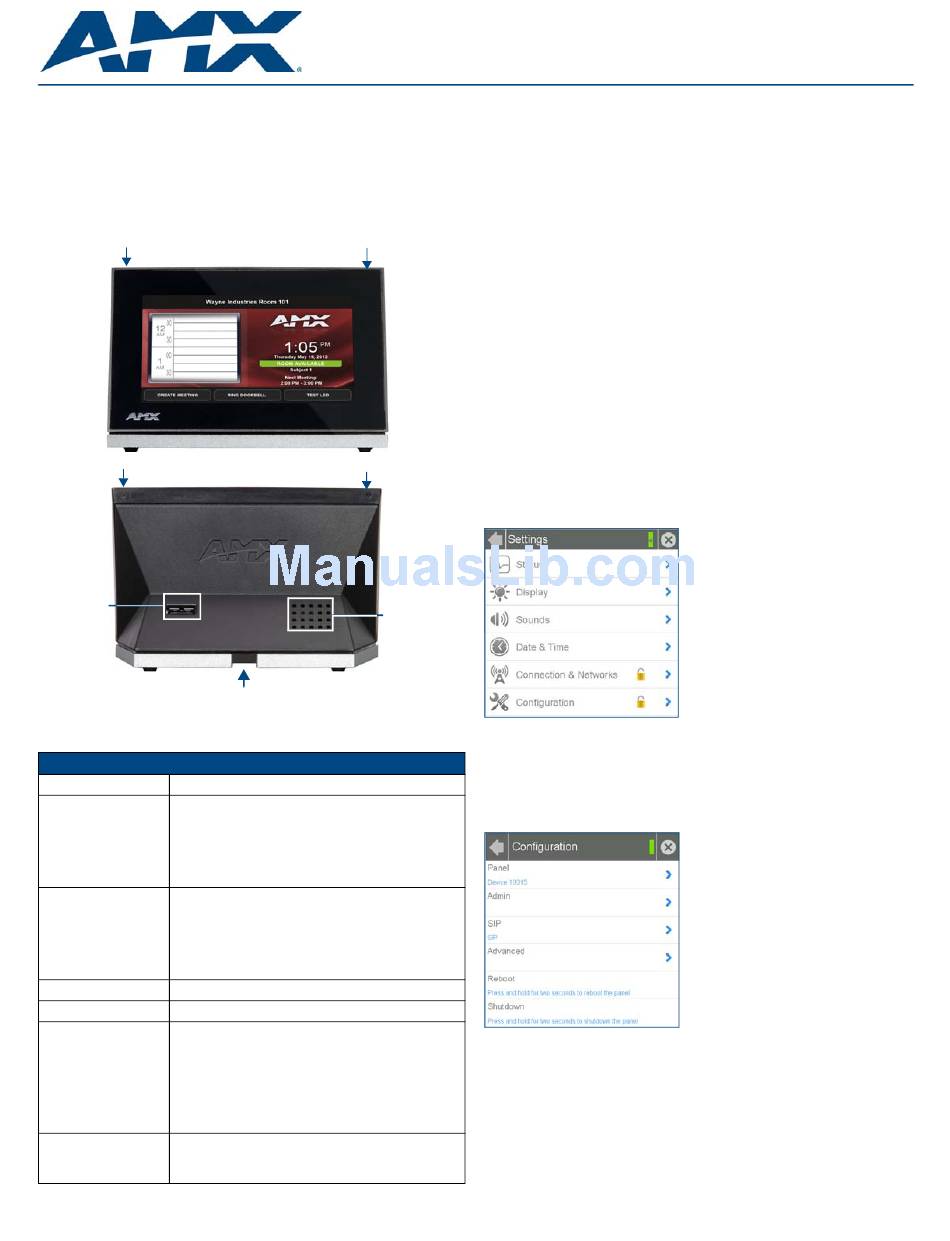

FIG. 1 MST-431

Product Specifications

MST-431 Specifications
Power: PoE (Power over Ethernet), 802.3af, class 2
Power Consumption: • Full-On: 4W
• Typical: 3W
• Standby: 2W
• Shutdown: 0.6W
• Startup Inrush Current: Not Applicable due to PoE
standard
Operating Environment: • Operating Temperature: 32° F to 104° F (0° C to 40° C)
• Storage Temperature: 4° F to 140° F (-20° C to 60° C)
• Humidity Operating: 20% to 85% RH
• Humidity Storage: 5% to 85% RH
• Power ("Heat") Dissipation: On: 13.6 BTU/hr, Standby:
6.8 BTU/hr
Dimensions (HWD): 3.22" x 5.04" x 3.10" (82 mm x 128 mm x 79 mm)
Weight: 0.90 lbs (0.41 Kg)
Certifications: • UL
• FCC Part 15 Class B
• C-Tick CISPR 22 Class B
• CE EN 55022 Class B and EN 55024
• CE EN 60950-1
• IC CISPR 22 Class B
• VCCI CISPR 22 Class B
• RoHS/WEEE compliant
Included Accessories: • USB port cover kit (FG5968-18)
• CATE5 Ethernet Cable, Flat Black (ECA2265-10)
• UTP CAT.5E Snap In Coupler, Black (64-5968-01)
MST-431
Note: For more information on installation and configuration, as well as
complete specifications on this device, please refer to the MST-431/MSD-431-L
Operation/Reference Guide, available at www.amx.com.
Note: Optimal performance requires use of one of the following AMX PoE power
supplies (not included):
•
•
Note: AMX does not support the use of non-AMX power supplies.
Microphone

Panel Connectors and Wiring

FIG. 1 shows the connectors located on the back of the MST-431.

Power for the MST-431 via Power Over Ethernet

Power for the MST-431 is supplied via Power Over Ethernet (PoE), utilizing an
AMX-certified PoE injector such as the PS-POE-AF-TC PoE Injector (FG423-
83) or other approved AMX PoE power source. The incoming Ethernet cable
should be connected to the RJ45 port on the MST-431

Configuring the MST-431

The MST-431 is equipped with Settings Pages that allow you to set and
configure various features on the panel. For more information on connecting and
configuring the MST-431 to a network, please refer to the Modero S Series
Programming Guide, available at www.amx.com.

Accessing the Settings Pages

Sleep Button
To access the Settings Pages on the MST-431, press and hold the Sleep/
Settings Button (FIG. 1) on the top of the panel for 3 seconds. The user will be
prompted to release the button to enter the Settings page (FIG. 2).
Speaker
FIG. 2 Settings

Accessing the Configuration Page

1.
2.
FIG. 3 Configuration
3.
Quick Start Guide
4.3" Modero S Series
PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)
NXA-ENET8-2POE, Gigabit PoE Ethernet Switch (FG2178-63)
page
From the Settings Page, select Configuration. If the Configuration page is
password protected, this opens a password keypad.
Enter the panel password into the keypad (the default is 1988) and select
OK to access the page (FIG. 3).
page
To reboot the panel, press and hold the text under the Reboot section for
two seconds. To shut down the panel, press and hold the text under the
Shutdown section for two seconds.
®
Tabletop Touch Panel
.
