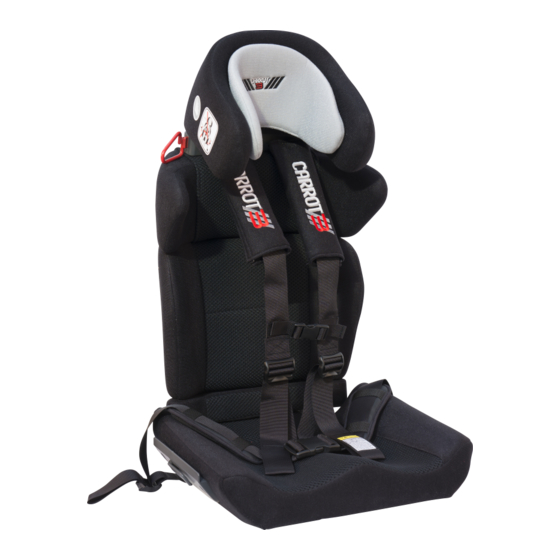

Medifab Carrot XL Instruction Manual
Therapist and carer manual
Hide thumbs
Also See for Carrot XL:
- Assembly manual (9 pages) ,
- Installation and user manual (18 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Medifab Carrot XL
Summary of Contents for Medifab Carrot XL
- Page 1 Carrot XL Car Seat Therapist and Carer manual Medifab Ltd Australia: 26 Pardoe Street, Devonport, TAS 7310 New Zealand: 32 Detroit Drive, Rolleston 7675 Call: 1300 543 343 (AU) 0800 543 343 (NZ) www.medifab.com info@medifab.com Please Read Before Use...
- Page 2 CARROT-lll XL SEAT - CHILD RESTRAINT SYSTEM For Children with Special Needs XL SEAT Instruction Manual Read carefully all the instructions before use. When not in use, store in the pocket on the back for future use.
-
Page 3: Table Of Contents
Carrot-Ⅲ XL seat is an extended version of the standard Carrot-lll child restraint system. The Carrot-lll XL seat offers a larger configuration to meet the needs of children that require additional seat growth that is not available on the standard Carrot-lll. Always consult your doctor to make sure that this restraint system is suitable for your child. - Page 4 Table of Contents ----------------------------------- Shoulder Section ----------------------------------- Adjusting Shoulder Width ----------------------------------- Comfort Pads ----------------------------------- Backrest Section ----------------------------------- Adjusting Backrest Height ----------------------------------- 4-Point (H-shape) Harness ----------------------------------- Fastening / Releasing Harness Buckle ----------------------------------- Seat Section Adjusting Seat Depth ----------------------------------- Securing Your Child ----------------------------------- WARNING -----------------------------------...
-
Page 5: Warning
WARNING ! DEATH or SERIOUS INJURY can occur: ・ Recommended for use with children who have outgrown the Carrot-lll standard car seat. Suggested guidelines are children who weigh more than 40kg and less than 75kg with height between 140cm and 175cm. has been successfully crash tested with a 75kg dummy. - Page 6 WARNING ! DEATH or SERIOUS INJURY can occur: ・ The child restraint system cover should only be replaced with the one recommended by the manufacturer. ・ This instruction manual should be stored in the pocket on the back of the child restraint system.
-
Page 7: Safety Information
Safety Information Important Notes Correctly set up and install the child restraint system before using. Before each use, verify it is securely installed to the vehicle's seat and the harness is properly adjusted around child. ・ Adjust harness to fit securely around the clothes the child is wearing. Remove bulky coats and/or jackets before putting child in child restraint system. -
Page 8: Certification
Safety Information Certification The Carrot-lll XL seat is designed for children who weigh more than 40kg and less than 75kg. It has been successfully crash tested with a 75kg dummy, outside the ECE R44/04. WARNING！ This child restraint system must be used forward-facing position only. WARNING！... -
Page 9: Features
Features Head-Support Head Pillow Vehicle's Belt Path Shoulder Protector Wing Comfort Pads 4-Point Harness Strap Backrest XL Seat Base Table Feet Receiver Head-Support Fixing Strap Metal Yoke Backrest Release (D-shape) Ring Instruction Manual (in pocket) Seat Depth Adjuster Knob Lower Fixing Strap... -
Page 10: Installation
Installation Standard Installation Fixing Strap Installation 1. Installation using fixing straps provided at the upper and lower parts of the child restraint system. 2. Secure Head-Support to the vehicle’s headrest using the Head-Support fixing strap, and the child restraint main body to the vehicle’s seat using the lower fixing strap. -
Page 11: Functions
Functions Head Section Head-Support Depth Adjustment Head-Support can be adjusted forward or backward by 15 mm increments to provide a better fit and added protection for the occupant. To Adjust; Pull out the Head-Support from Backrest, and remove screws on each side at the bottom (Fig. A). Move the Head-Support to selected position (Fig. -
Page 12: Shoulder Section
Functions Shoulder Section Adjusting Shoulder Width The Shoulder Protector Wing can be extended by 100mm, by extending the right and left sides by 50mm each (five positions / 10 mm each). To extend the Shoulder Protector Wing, press and hold the yellow button on the back, while simultaneously pulling the wing outward to desirable position, where the body of child is secure and comfortable. -
Page 13: Backrest Section
Functions Backrest Section IMPORTANT: ・ Height of the Shoulder Harness Strap moves with the height of the Backrest. ・ Level of the Shoulder Harness Strap must be at or above the Child’s shoulders, parallel to level ground. Adjusting Backrest Height Release locking by pulling the Backrest Release (D- shape) Ring on the back of the child seat, and while pulling the Strap, adjust height of the Backrest. -
Page 14: Seat Section
Functions Seat Section IMPORTANT: You must set the seat depth a little shorter than user's Buttock-popliteal length, which is the distance from the rearmost part of the buttocks to the back of the lower leg. Adjusting Seat Depth The factory setting seat depth is 420mm. When a shallower seat is in need, the seat depth can be reduced by 40mm into 380mm, with altering the screw hole to attach Seat Depth Adjuster Knob to... -
Page 15: Securing Your Child
Securing Your Child Once Carrot-Ⅲ XL seat has been installed in the vehicle's seat and adjustments have been made, follow these instructions to secure the child. ・ Loosen the harness and unfasten the harness buckles (upper and lower). Move the harness straps to the side of the seat, and place the child in the seat (Fig. -
Page 16: Important
Securing Your Child ・ Verify that vehicle’s lap shoulder (3-point) safety belt is not twisted or sagging, properly routed the RED belt guide (Fig. G and ・ Make sure that the vehicle's lap shoulder (3-point) safety belt is positioned not to harm the face and/or the neck of the child. -
Page 17: Warning
Securing Your Child WARNING ! It is your RESPONSIBILITY to use Vehicle’s Safety Belts. I t is NOT sufficient to secure a child only with the 4-point harness straps of the child restraint system, and is required by law to always use the vehicle’s lap shoulder 3-point safety belt concurrently to secure a child seat and child. -
Page 18: Important And Warning
Securing Your Child IMPORTANT: ・ Always pull on the harness after securing the occupant to ensure the buckle tongues are secure in the harness buckle. ・ Always park your car in a safe place when you make any adjustments to the child restraint system, including reclining the car seat. Adjusting and/or handling the child restraint system during driving could cause SERIOUS INJURY t you and your child. -
Page 19: Accessories
Accessories Supporting Table (XL) The X-Large supporting table is designed specifically for the XL seat and can be expected as an extra support to secure the child's upper limbs. Seat Angle Adjuster Mat (Triangle Wedge) Use to increase and adjust the height and angle of the front sear of the seat for better secure and stability of seating. -
Page 20: Care And Maintenance
Care and Maintenance Cover Removal Do not try to remove or replace the cover by yourself as it is complicated and needs equipments. Ask the distributor for removal or replacement of the cover. Cleaning the Cover, Pillow and Pads For the Cover, SPONGE CLEAN using cold water and mild soap. TOWEL DRY. -
Page 21: Product Dimensions
Product Dimensions 510mm - 560mm 10.5kg Overall Width Product Weight Target User Seat Depth 420mm(380mm) 36kg - 75kg Weight Target User 510mm 145cm - 180cm Seat Width Height Extendable 745mm - 870mm Backrest Height 460 - 560 420(380) -
Page 22: Warranty
Warranty LIMITED ONE-YEAR WARRANTY This product is warranted against defective materials and workmanship for one year from the date of original purchase. Proof of purchase is required. To make a claim under this warranty, contact the authorized distributor or the retailer whom you purchased this product from. -
Page 23: Limited One-Year Warranty
Warranty LIMITED ONE-YEAR WARRANTY Product Model Number : CARROT-lll XL Seat Your Name: Your Street Address: City: State: Zip Code: Country: Telephone Number: E-mail Address: Date of Purchase: Distributor: General Agency:... - Page 24 Memo...
