Medifab Carrot XL Assembly Manual

Hide thumbs Also See for Carrot XL:

Advertisement

Table of Contents

See also: Instruction Manual

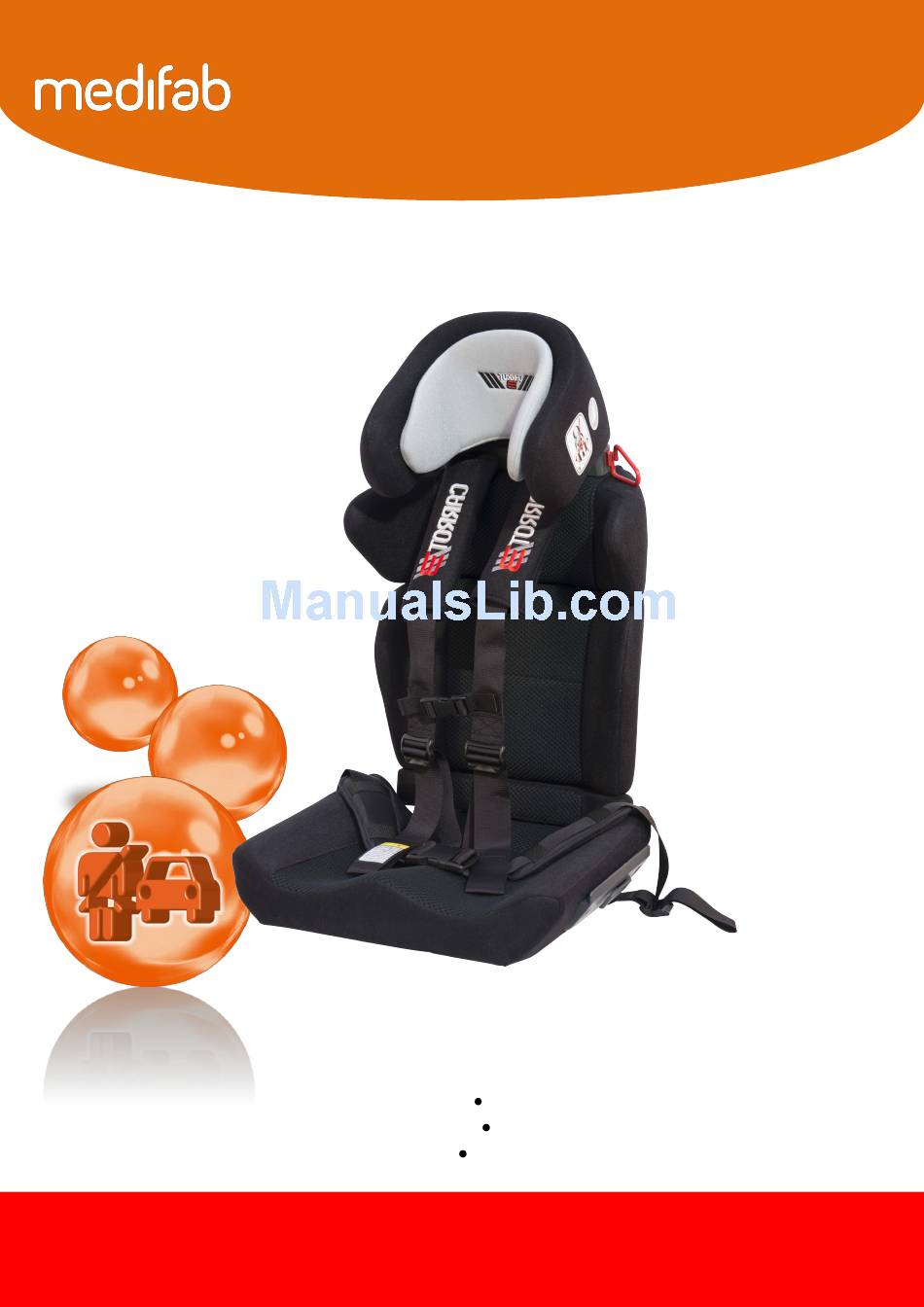

Carrot XL Car Seat
Medifab Ltd
Australia: 26 Pardoe Street, Devonport, TAS 7310 New Zealand: 32 Detroit Drive, Rolleston 7675
Call: 1300 543 343 (AU)
0800 543 343 (NZ)
www.medifab.com
info@medifab.com
Please Read Before Use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Carrot XL and is the answer not in the manual?

Questions and answers

Related Manuals for Medifab Carrot XL

Summary of Contents for Medifab Carrot XL

  • Page 1 Carrot XL Car Seat Kit Assembly manual Medifab Ltd Australia: 26 Pardoe Street, Devonport, TAS 7310 New Zealand: 32 Detroit Drive, Rolleston 7675 Call: 1300 543 343 (AU) 0800 543 343 (NZ) www.medifab.com info@medifab.com Please Read Before Use...
  • Page 2 CARROT-lll XL KIT - CHILD RESTRAINT SYSTEM For Children with Special Needs Kit Assembly Manual WARNING Read all instructions before using this restraint system.
  • Page 3 Carrot-lll XL Seat KIT What is XL seat KIT ? Carrot-lll XL seat offers a larger seat to meet the needs of children who have outgrown the standard Carrot-lll restraint system. Always consult your doctor to make sure that this restraint system is suitable for your child.
  • Page 4 Remove the standard seat from the backrest Replace the standard seat with the XL seat using the same backrest assembly. 1. Remove the Velcro tapes from the back of the headrest, and detach straps from the harness bracket (Fig. A & B). 2.
  • Page 5 Metal Rods and Lower Fixing Strap Front 3. Using the seat depth adjustment knobs (black screw knobs) attach the XL seat metal rods to the either of holes (seat depth: 380mm in the front hole or 420mm in the rear) on each side of The XL seat base.

  • Page 6: Harness Strap

    Harness Strap 6. Remove the end loops from the metal yoke (Fig. K & L). 7. Fold the loop end of the harness into a triangle to easily thread through the front open slots located underneath the headrest and pull out the back (Fig. M, N & O). Repeat on the opposite side. NOTE: Make sure that the webbing is not twisted.
  • Page 7 Harness Strap 9. Re-attach the loop ends back to the metal yoke and securely lock it on the eight (8) hooks located on the yoke (Fig. Q & R). 10. Remove slack of the harness from the backrest by firmly pulling the front of the harness by the buckle towards you (Fig.
  • Page 8 Backrest Extension 11. The metal rods of the XL seat is longer by 50mm than one in the standard Carrot-lll. Take the 50mm backrest extension from the standard Carrot-lll and attach it to cover the back gap (Fig. T). NOTE: With this longer metal rods, you can use 50mm and 100mm backrest extensions together at the same time in the XL seat.
