Quick Installation Guide
WDAP-1750AC
1750Mbps 802.11ac Dual Band Wall-mount
Wireless Access Point

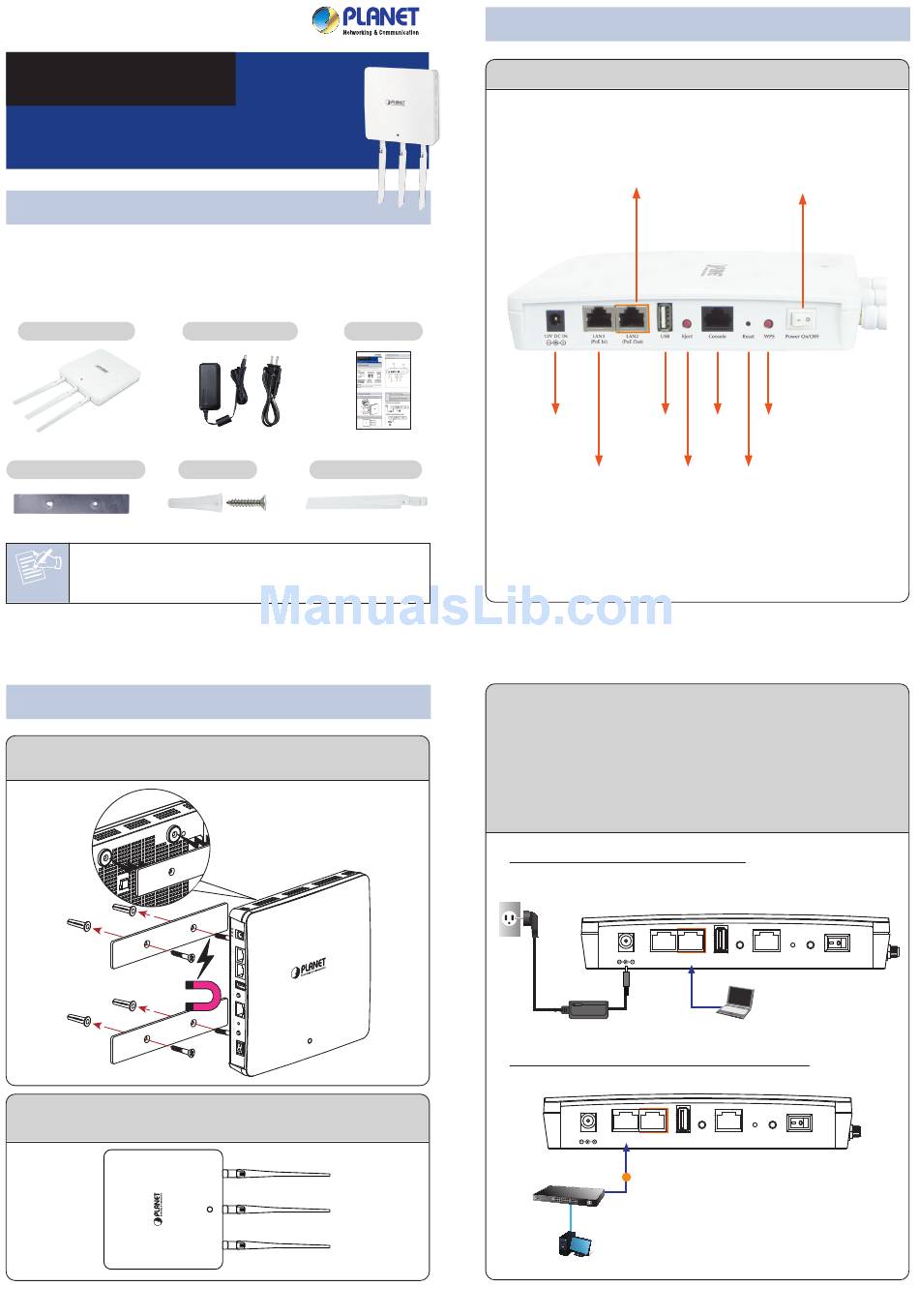

1. Package Contents

Thank you for choosing PLANET WDAP-1750AC. Before installing
the AP, please verify the contents inside the package box.
The WDAP-1750AC should contain the following items in the
package:
WDAP-1750AC
Wall-mount Strip x 2
If there is any item missing or damaged, please
contact the seller immediately.
Note

3. Hardware Installation

STEP 1: Attach the two magnetic wall-mount strips to your
wall using the included screws, as shown below.
STEP 2: Fasten the antennas to the antenna connectors. And
you can bend the antennas to fit your actual needs.
Power Adapter Quick Guide
Antenna x 3
Screws
– 1 –
– 3 –
2. Physical Introduction
Panel Description - Port
LAN2
(PoE Out)
12V DC USB
LAN1
(PoE In)
STEP 3: Method A - Power socket nearby
Connect the power adapter to the access point's 12V
DC port and plug the power adapter into a power
supply.
Method B - Hard to find the power socket
Plug the RJ45 Ethernet cable into the PoE port of the
WDAP-1750AC and the other end of the Ethernet
cable into the PoE switch.
• Method A - Power socket nearby
Power
12V DC IN LAN1
(PoE In)
• Method B - Hard to find the power socket
12V DC IN LAN1 LAN2
(PoE In) (PoE Out)
PoE Switch PoE
PC
Power On/Off
Console WPS
Eject Reset
– 2 –
LAN2 USB Eject Console Reset WPS Power On/OFF
(PoE Out)
USB Eject Console Reset WPS Power On/OFF
– 4 –
