Sonel CMP-600 Operating Manual

Ac/dc clamp meter with wireless data transmission
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

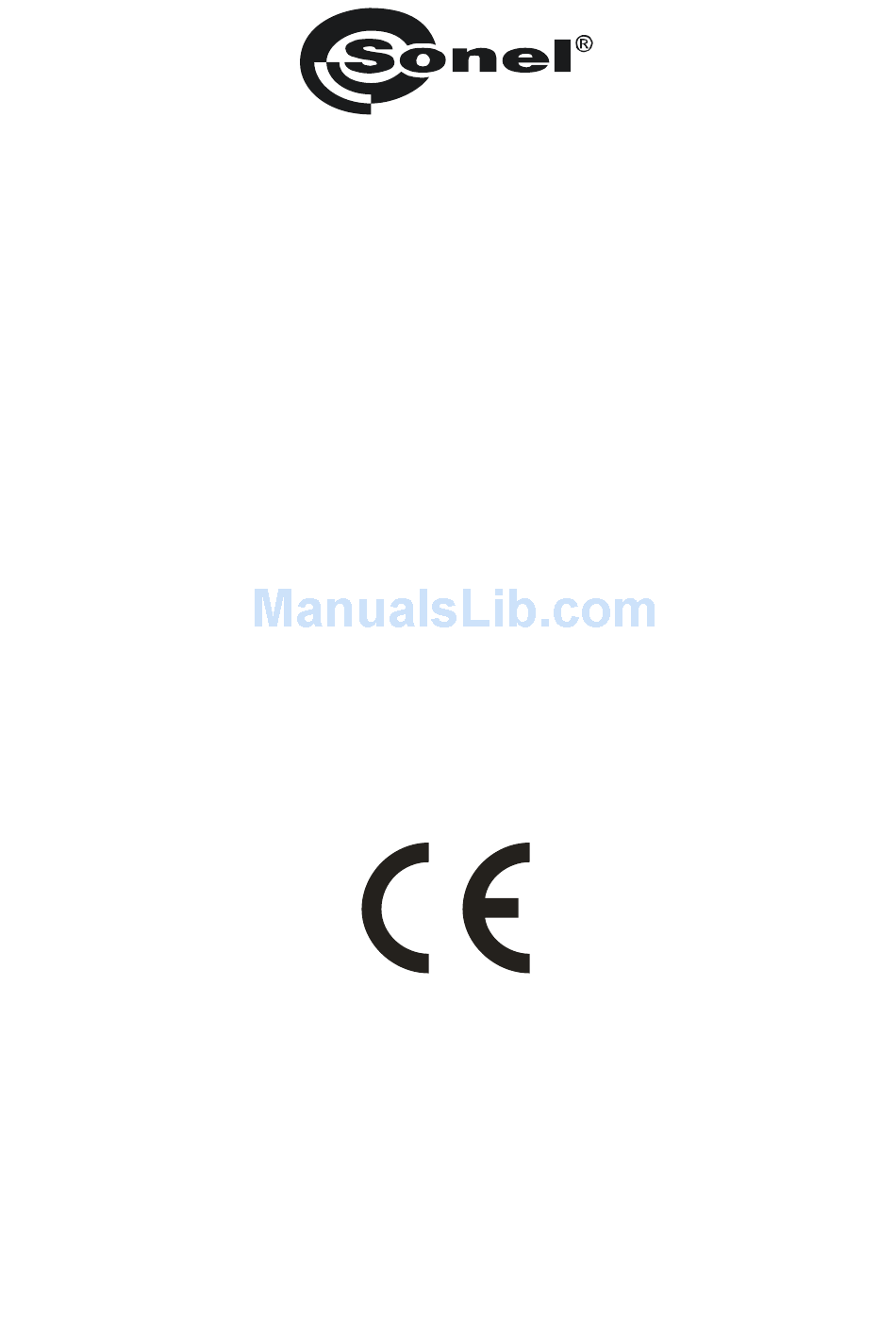

OPERATING MANUAL
AC/DC CLAMP METER
WITH WIRELESS DATA TRANSMISSION
CMP-600
Version 1.01
25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMP-600 and is the answer not in the manual?

Questions and answers

Related Manuals for Sonel CMP-600

Summary of Contents for Sonel CMP-600

  • Page 1 OPERATING MANUAL AC/DC CLAMP METER WITH WIRELESS DATA TRANSMISSION CMP-600 Version 1.01...
  • Page 2 PC via USB (receiver • only), • safe, covered clamps. CMP-600 meter is a modern, easy and safe measuring device. Please acquaint yourself with this ma- nual in order to avoid measuring errors and prevent possible problems in operation of the meter.

  • Page 3: Table Of Contents

    CONTENTS SAFETY ........................29 PREPARING THE METER FOR OPERATION..........30 FUNCTIONAL DESCRIPTION OF CMP-600T ..........31 EASURING TERMINALS AND COMPONENTS OF THE MEASURING FUNCTION ........................31 SELECTION (LCD) ..............32 IQUID RYSTAL ISPLAY .........................32 EADS FUNCTIONAL DESCRIPTION OF CMP-600R..........33 ........33 OMPONENTS OF THE MEASURING FUNCTION SELECTION (LCD) ..............34 IQUID RYSTAL...
  • Page 4 REPLACING THE BATTERY ................45 CLEANING AND MAINTENANCE ..............45 STORAGE ......................45 DISMANTLING AND DISPOSAL ..............45 ANNEXES.......................45 13.1 ................45 ECHNICAL SPECIFICATIONS 13.2 ..................47 TANDARD EQUIPMENT 13.3 ..................47 PTIONAL ACCESSORIES 13.4 ......................48 ERVICE 13.5 ..................48 ABORATORY SERVICES...

  • Page 5: Safety

    1 Safety In order to provide conditions for correct operation and the correctness of the obtained results, the following recommendations must be observed: • before using the meter read carefully this manual, • the meter should be operated only by qualified persons that have passed health and safety train- ing, •...

  • Page 6: Preparing The Meter For Operation

    WARNING: Do not conduct measurements in explosive atmosphere (e.g. in the presence of flammable gases, vapours, dusts, etc.). Using the meter in such conditions may result in sparking and cause an explosion. WARNING: Do not conduct measurements on a circuit where the voltage exceeds 600V AC with regard to the ground.

  • Page 7: Functional Description Of Cmp-600T

    Functional description of CMP-600T Measuring terminals and components of the measuring func- tion selection ① ① ① ① Clamps ② ② ② ② Clamp contact point ③ ③ ③ ③ Protective ring (protection barrier) ④ ④ ④ ④ Lever for clamp opening ⑤...

  • Page 8: Liquid Crystal Display (Lcd)

    ⑬ ⑬ ⑬ ⑬ COM input port Measurement input for all measurement functions except current measurement (connected to the ground of the meter). ⑭ ⑭ ⑭ ⑭ Input port Measurement input for AC/DC DC voltages, frequency, resistance and diodes. ⑮ ⑮ ⑮ ⑮ Liquid Crystal Display (LCD) Liquid Crystal Display (LCD) Symbols and units Description...

  • Page 9: Functional Description Of Cmp-600R

    Functional description of CMP-600R Components of the measuring function selection ① ① ① ① Nameplate ② ② ② ② Liquid Crystal Display (LCD) ③ ③ ③ ③ POWER button Switching power ON/OFF (after 3 s). ④ ④ ④ ④ READ button Readout of saved maximum and minimum values.

  • Page 10: Liquid Crystal Display (Lcd)

    Liquid Crystal Display (LCD) Symbols and units Description Setting ID code for transmission (channel no. from 1 to 6). The symbol flashes when receiving a signal from the transmitter. Saved maximum and minimum values. Readout of saved maximum and minimum values. In alarm mode when the result is <...

  • Page 11: Measurements

    Measurements The content of this chapter should be thoroughly read and understood since it describes methods of measurements and basic principles of interpreting measurement results. Current measurement WARNING: Do not conduct measurements on a circuit where the voltage exceeds 600V AC/DC. Do not conduct measurements on circuits with unknown potential.

  • Page 12: Dc Voltage Measurement

    Notes: - If the minor readouts before the measurement are not taken into account, it is not necessary to press REL button in order to set the "zero" point - then the measurement will be conducted in auto-ranging mode. - When symbol appears, it means that the measured current direction is opposite to the polariza- tion indicated on the clamp.

  • Page 13: Diode Test

    To perform the resistance measurement: Set the rotary switch at • • connect red test lead to terminal , and black test lead to COM terminal , • contact the blades of test probes to the points of measurement, • read the measurement result on the display, after completing the measurements remove test leads from the terminals and turn off the meter.

  • Page 14: Special Features Of The Transmitter

    Special features of the transmitter HOLD function By pressing HOLD button, you will freeze currently displayed measurement values and the dis- play shows . By pressing button again you will return to normal display of currently measured values. This function is available only for current and voltage measurements. Differential (relative) mode of measurement In order to activate the differential mode of measurement press REL./SEL.

  • Page 15: Saving And Displaying The Maximum And Minimum Value

    Saving and displaying the maximum and minimum value Press MAX/MIN button to enter the mode of saving maximum and minimum values. The meter returns to MEMO MAX/MIN mode when for 10 Press READ button to s. READ button is not pres- read the saved maximum sed.

  • Page 16: Reception Settings

    Press ▲ button to select the symbol "+" or "-" Press ► button. Press ▲ to set the value of the first digit. Using ▲ and ► but- tons set the values of remain- ing digits. Press ► button. Press ▲ button to move the position of the decimal point.

  • Page 17: Operation With Multiple Transmitters

    Operation with multiple transmitters When using multiple transmitters which transmit data to one receiver, power consumption is higher due to the continuous data transmission. When using one transmitter, set the remaining 5 ID codes to "OFF", in order to reduce power consumption. When using multiple transmitters which transmit data to one receiver, transmission time may be selected and set for each channel.
  • Page 18 Edition Clears the current data records and charts View 1 - Monitor: current data 2 - Table: data presented in a table 3 - Graph: data presented on a graph 4 - Estimated electricity costs Screen Transmission time Alarm limits File Name Average value until present Transmitted unit...
  • Page 19 Setup tab and select "Estimate Electric- ity Charge" in the View tab to begin calculations of electricity costs. Records 1 - Connect: CMP-600 to starts data 2 - Start: collection...

  • Page 20: Warnings And Information Displayed By The Meter

    Table Selecting the background colour and type of grid in the table. Window Arranging windows Help Operating manual for the meter Operating manual About the software Warnings and information displayed by the meter Displayed Cause Action symbol Disconnect the test le- Measuring range is ads from the measured exceeded.
  • Page 21 Replacing the battery Both the transmitter and the receiver of CMP-600 are powered by two 1.5V AA batteries. We re- commend using LR6 alkaline batteries . WARNING: If the test leads are left in the terminals during replacement of the batteries, there is a risk of electric shock with a dan- gerous voltage.
  • Page 22 DC measurement Measurement uncertainty (ba- Display range Resolution sic) 400A 0.1A ± (1.8% d.v. + 10 digits) 600A ± (1% d.v. + 5 digits) True RMS voltage measurement for AC (50...500Hz) Display range Measurement uncertainty (ba- Resolution Input Impedance sic) 0.001V 11MΩ...
  • Page 23 ..... EN 61010-1:2004, EN 61010-2-032 quality standard ......................ISO 9001 13.2 Standard equipment Standard set of equipment supplied by the manufacturer includes: CMP-600 meter – WMPLCMP600 • test leads (2 pcs) – WAPRZCMP1 •...
  • Page 24 Note: Service repairs must be performed solely by SONEL S.A. 13.5 Laboratory services Measurement Laboratory of SONEL SA offers tests and certification of the following instruments in the scope of their electrical/non-electrical features: infrared cameras, pyrometers, meters for conducting the following electrical protective measurements: insulation resistance, earth resis-...
