Pressure Safety

The Easidew PRO XP requires pressurized gas to be connected to it. Observe pressurized
gas handling regulations and only suitable trained personnel should carry out task that
include the use of pressurized gas mediums.
DO NOT permit pressures greater than the safe working pressure to be applied to the
instrument. The specifi ed safe working pressure for this instrument is 450 barg (6525
psig) max.
2.7

Electrical Schematic

2.7.1

Easidew PRO XP EX1 (Non-Display)

NOTE: To ensure compliance with EMC standards, ensure that the screen of the
power supply/signal cable or the power supply/signal conduit is connected
to ground.
With the cable entry option, a conductive cable entry gland is recommended,
allowing the transmitter housing to be earthed via the cable screen connection.
Figure 11
Michell Instruments
This product is used in conjunction with pressurized gases.
Observe pressurized gas handling precautions.
Pressurized gas is dangerous.
Pressurized gas should only handled by suitably trained
Always connect the 4-20 mA return signal to a suitable load
(see Figure 15) before the power is applied. Without this
connection, the transmitter may be damaged if allowed to
operate for prolonged periods.
Screen or Conduit

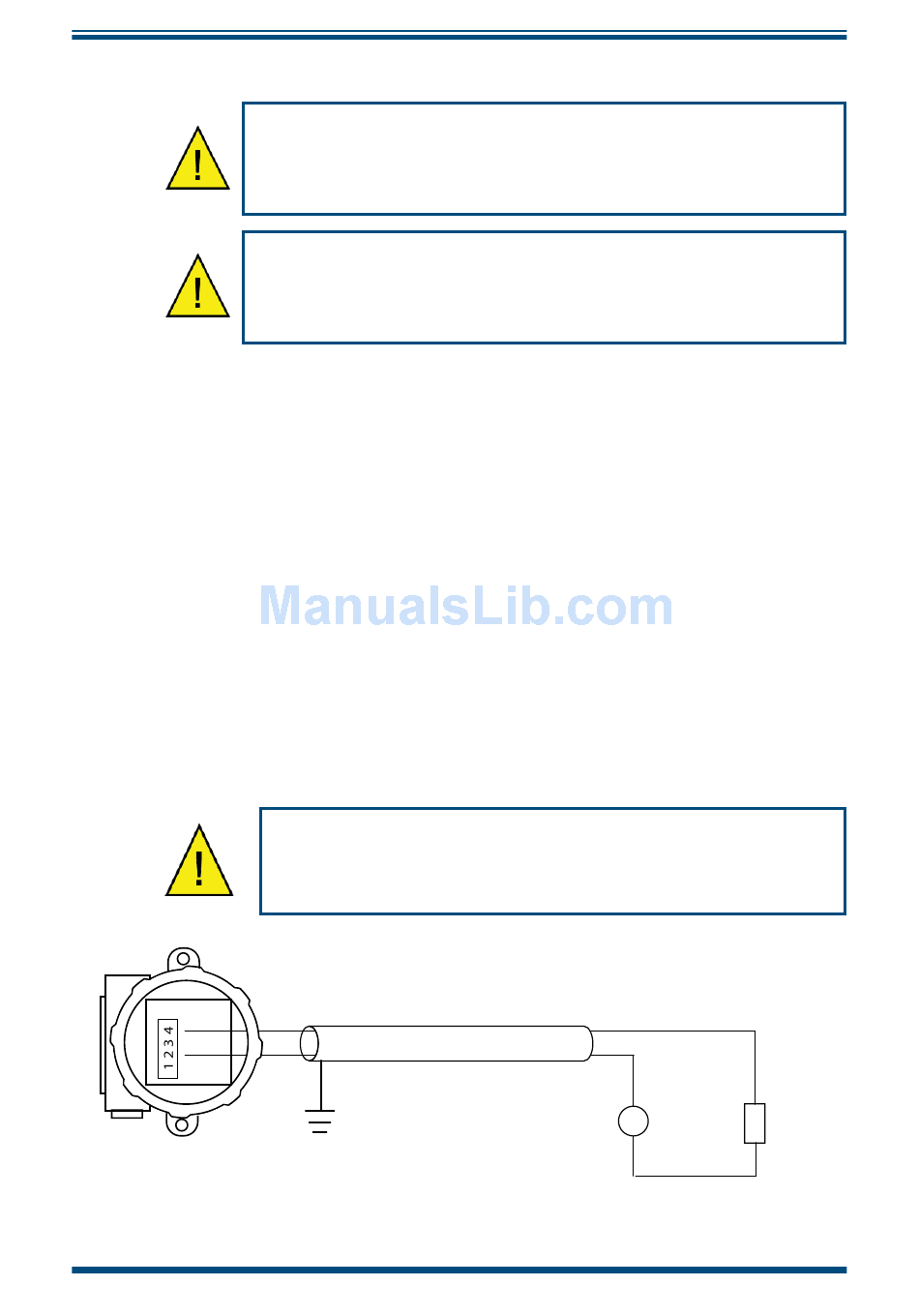

Electrical Schematic - Easidew PRO XP EX1 (Non-Display)
WARNING:
WARNING:
personnel.
+
SUPPLY
-
INSTALLATION
LOAD
13
