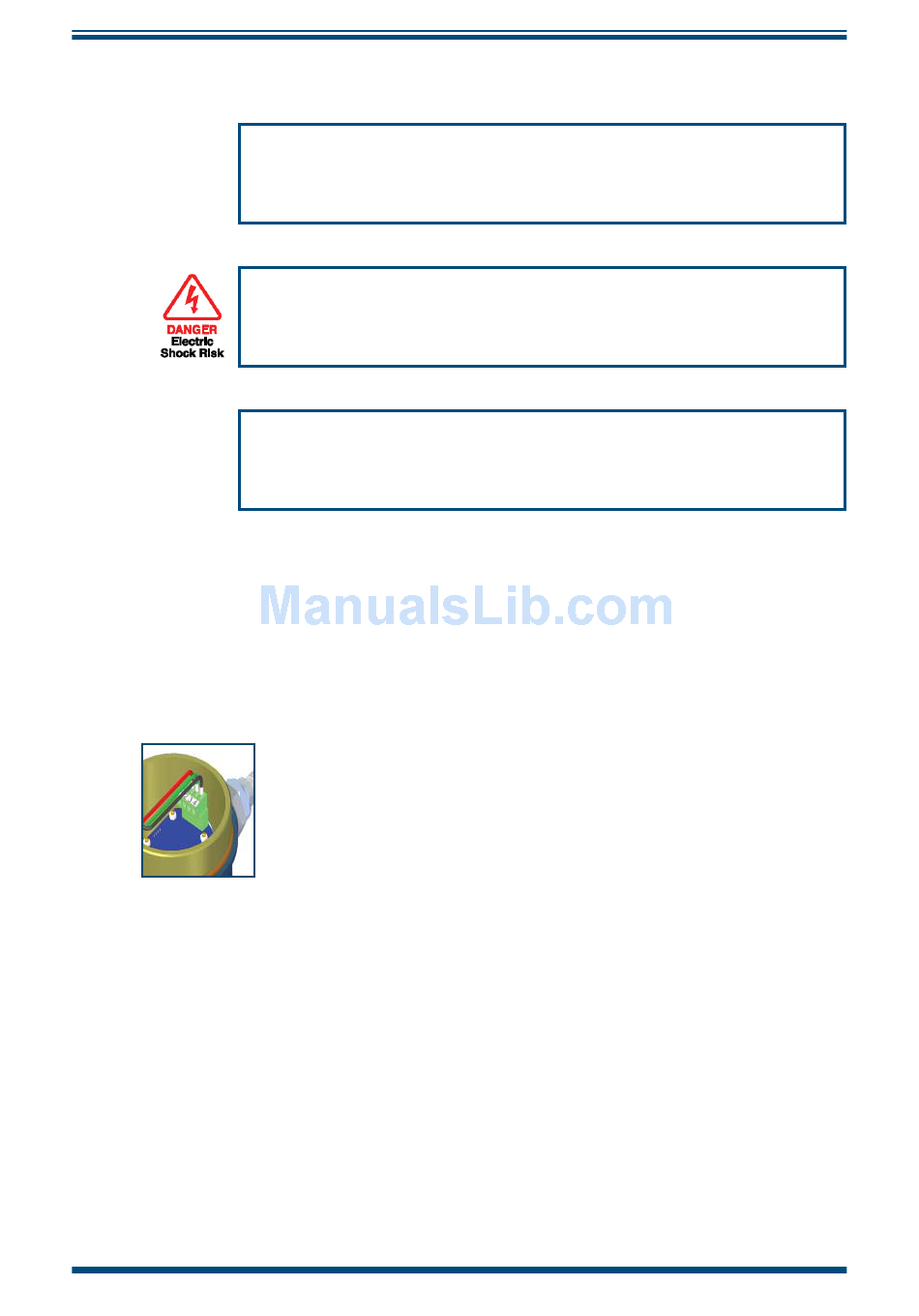

Electrical Safety

In compliance with IEC 61010 Electrical Safety Standard the following applies to this
product:
2.5.1

Equipment Ratings and Installation Details

This equipment must be supplied with a voltage between the range of 14 to 28 V DC.
Maximum power rating is 1 W.
The input and output connector is a 2-part pcb mounted type, rated at 300 V, 10 A.
The detachable, screw terminal half of each connector is designed to accept 0.5-2.5mm
[24 -12 AWG] (0.02-0.09
Any power connection cable should have a minimum 0.5mm (0.02") insulation and be rated
at 300 V. Ensure the power supply can deliver suffi cient power consumption requirement.
Ensure any power supply terminals and voltages are suitably separated from the other
I/O requirements of this product.
Before applying power, perform a continuity test to ensure that the power supply screen
and product are effectively connected to the protective Earth.
Michell Instruments
During the installation of this product ensure that all applicable
national and local electrical safety regulations are observed.
Isolate the power prior to installation.
Always ensure that power is switched off prior to accessing the
product for any purpose other than normal operation or prior to
disconnecting any cables.
The power is connected via PL2 on the pcb.
" ) stranded or solid conductors (non-display version only).
