Lindy 25003 User Manual

24 + 2 GIGA Port
User Manual
LINDY No. 25003
www.lindy.com
Specifications
Standards: IEEE 802.3 (10Base-T), 802.3u (100Base-TX), 802.3ab
(1000Base-TX), 802.3x (Flow control support)
Switching Architecture: Store & Forward
Filter/Forward Rate: 14880pps (10Mbps), 148800pps (100Mbps),
1488100pps (Mbps)
MAC Address Table: 8K entries, self learning
Buffer Memory: 2.5Mbit
MDI / MDI-X function: all ports
N-Way Auto-negotiation: all ports
Full-Duplex/Half-Duplex: all ports
Chipset: Realtek 8326
Power supply: internal 3.3V 4A (100-240V / 50-60Hz, ~20Watts)
Dimensions (WxDxH): 440 x 135 x 44mm
Weight (approx.): 1.5kg (2.2kg incl. packaging)
Operating Temperature: 0°~50°C (32°~122°F)
Operating Humidity: 10%-90%, non-condensing
Package Contents
24+2 GIGA N-Way Switch
Power cable
19" rack mounting brackets and screws
Rubber feet
This manual
N-Way Switch
English
Introduction
Thank you for purchasing the LINDY 24+2 GIGA N-Way Switch. This
switch is a high performance Gigabit Ethernet switch which is ideal for
use in small and medium networks or as a workgroup switch.
The switch utilizes store & forward architecture that filters and forwards
data after each packet is received and examined to be free of errors. All
of the Fast Ethernet ports support full and half duplex operation. An auto-
negotiation function provides smooth migration from Ethernet over Fast
Ethernet to Gigabit Ethernet. The switch also supports back pressure
and IEEE 802.3x advanced flow control to reduce congestion and
prevent packet loss.
It features extensive LED's allowing the operating status to be easily
monitored and can be mounted into a 19" rack using the supplied
brackets and screws.
Features
24 x 10/100Base-TX, RJ-45 Fast Ethernet ports
2 x 10/100/1000Base-T, RJ-45 Gigabit Ethernet ports
All ports support Auto-MDI/MDI-X function
Supports Full/Half-Duplex operation on all 10/100 ports
Extensive front panel diagnostic LED's
Supports Store & Forward switching architecture
Wire-speed packet filtering and forwarding rate
Realtek 8326 chipset
19" rackmount design, brackets and screws included

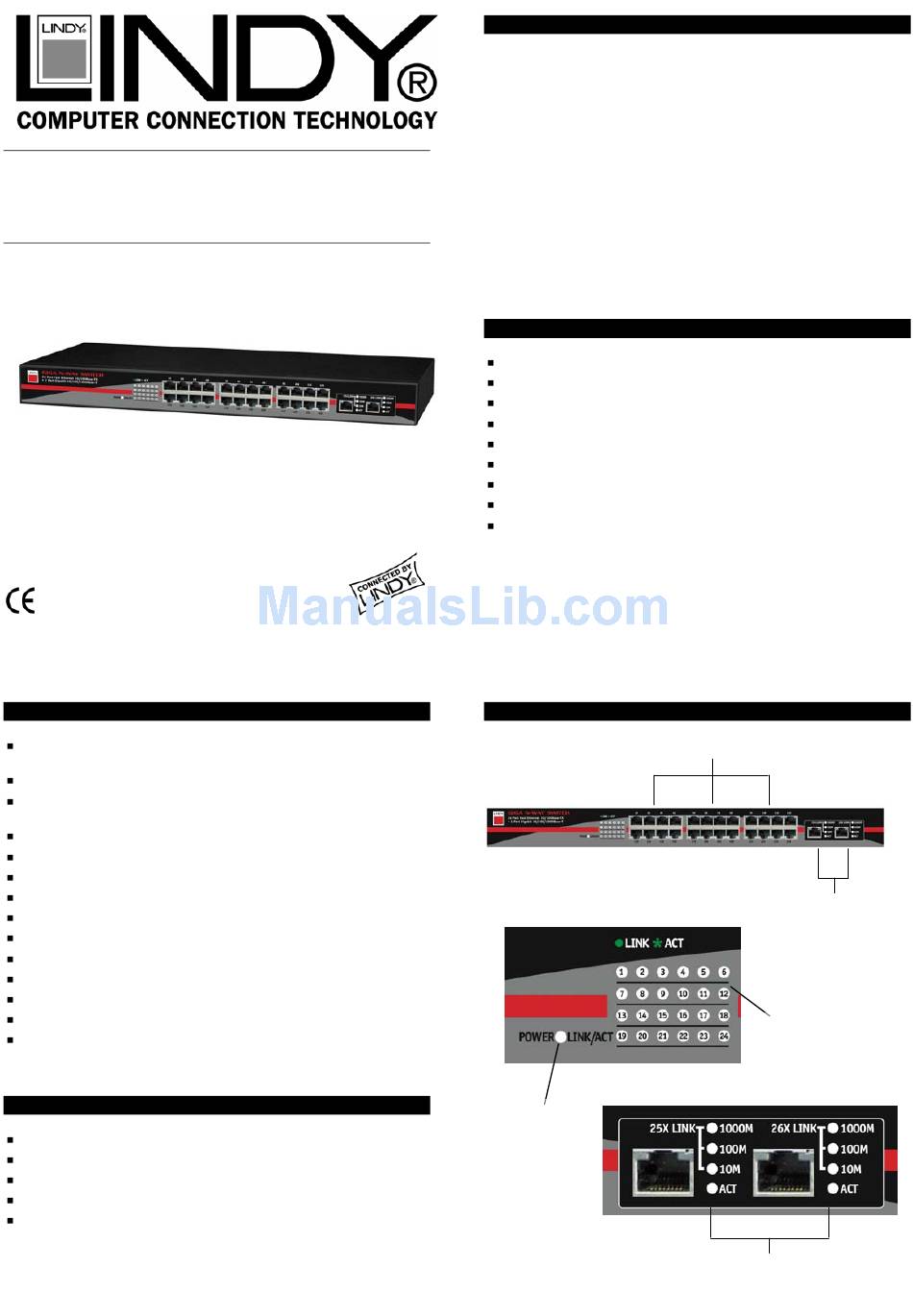

Front Panel
Power LED
24 x 10/100 Ports
2 x 10/100/1000 Ports
24 x 10/100 Port
Link/Activity LED's
2 x 10/100/1000 Port
Link/Activity LED's
