Summary of Contents for MadgeTech RFC1000-CE

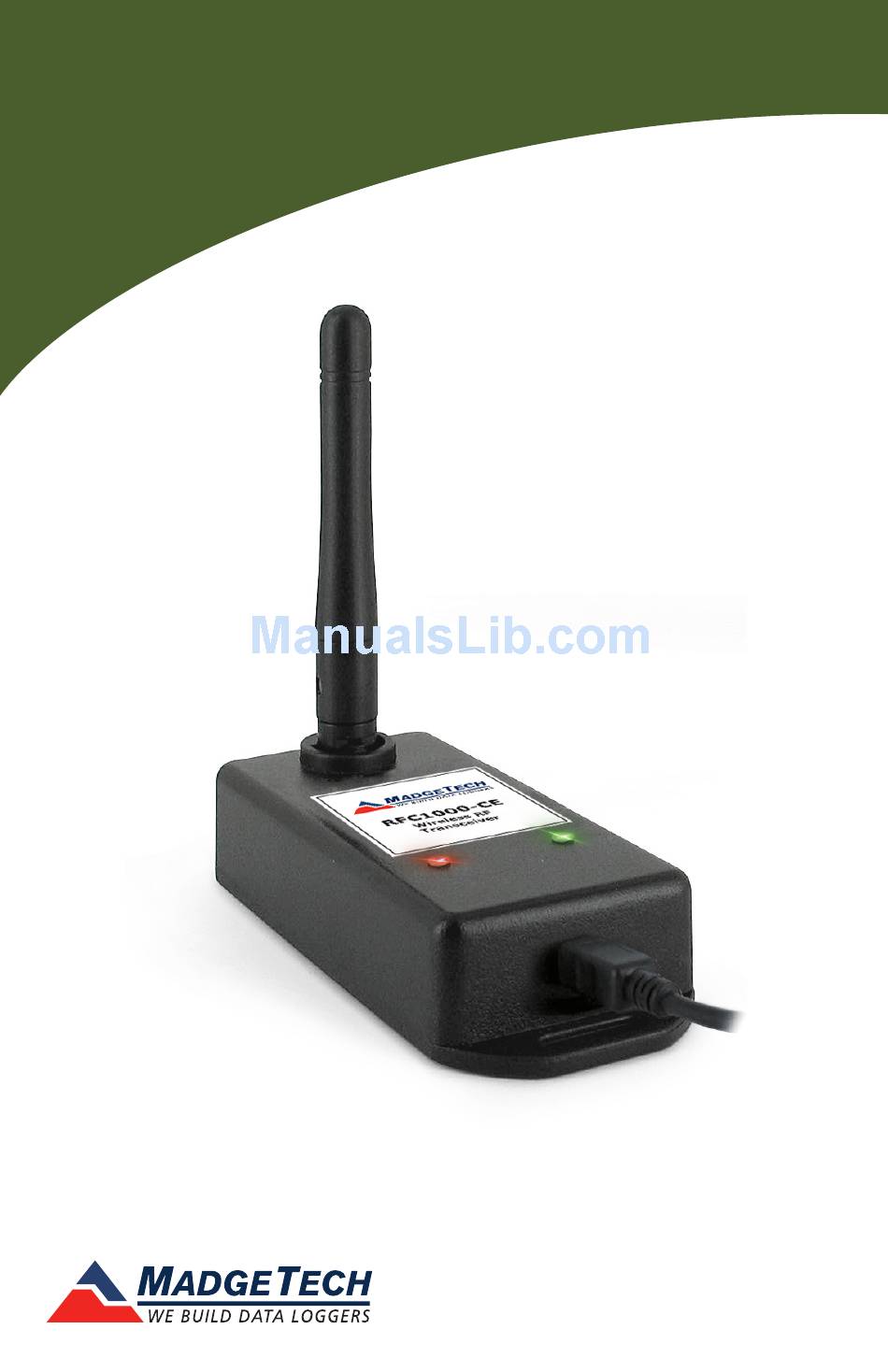

- Page 1 Product User Guide RFC1000-CE RFC1000-CE Wireless Transceiver To view the full MadgeTech product line, visit our website at www.madgetech.com.
- Page 2 Product User Guide...
-
Page 3: Installation Guide
-20 °C to 85 °C and a humidity range of 0 %RH to 95 %RH non-condensing. The RFC1000-CE is rated IP40 and is protected against solids that are greater than 1 mm in size. This device is not water resistant. -
Page 4: Channel Programming
4. Select Install on the dialog box. Deploying and Activating Devices Step 1: Plug the RFC1000-CE into the USB port on the base station computer. (Additional RFC1000-CEs can be used as repeaters to transmit over greater distances) Step 2: If using multiple RFC1000-CEs plug each one into a wall outlet in the desired locations. - Page 5 • Screw the enclosure back together and reconnect the RFC1000-CE. The default wireless channel for MadgeTech wireless devices is channel 25. Different wireless channels may be used to create multiple networks in one area, or to avoid wireless interference from other devices. The images below show the orientations avaliable of the switches for each channel.
- Page 6 Product User Guide Mounting Instructions For best wireless performance, both the RFC1000-CE and the MadgeTech Data Loggers should be mounted in the same orientation. This usually means that the external antenna should be pointing straight up. The antenna can pivot to...
- Page 7 RFC1000-CE Compliance Information • “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”...
- Page 8 Specifications subject to change. See MadgeTech’s terms and conditions at www.madgetech.com Countries approved for use, purchase and distribution of the RFC1000-CE: Australia, Austria, Belgium, Bulgaria, Canada, Chile, China, Columbia, Croatia, Cyprus, Czech Republic, Denmark, Ecuador, Estonia, Finland, France, Germany, Greece, Honduras, Hungary, Iceland, Ireland,...
