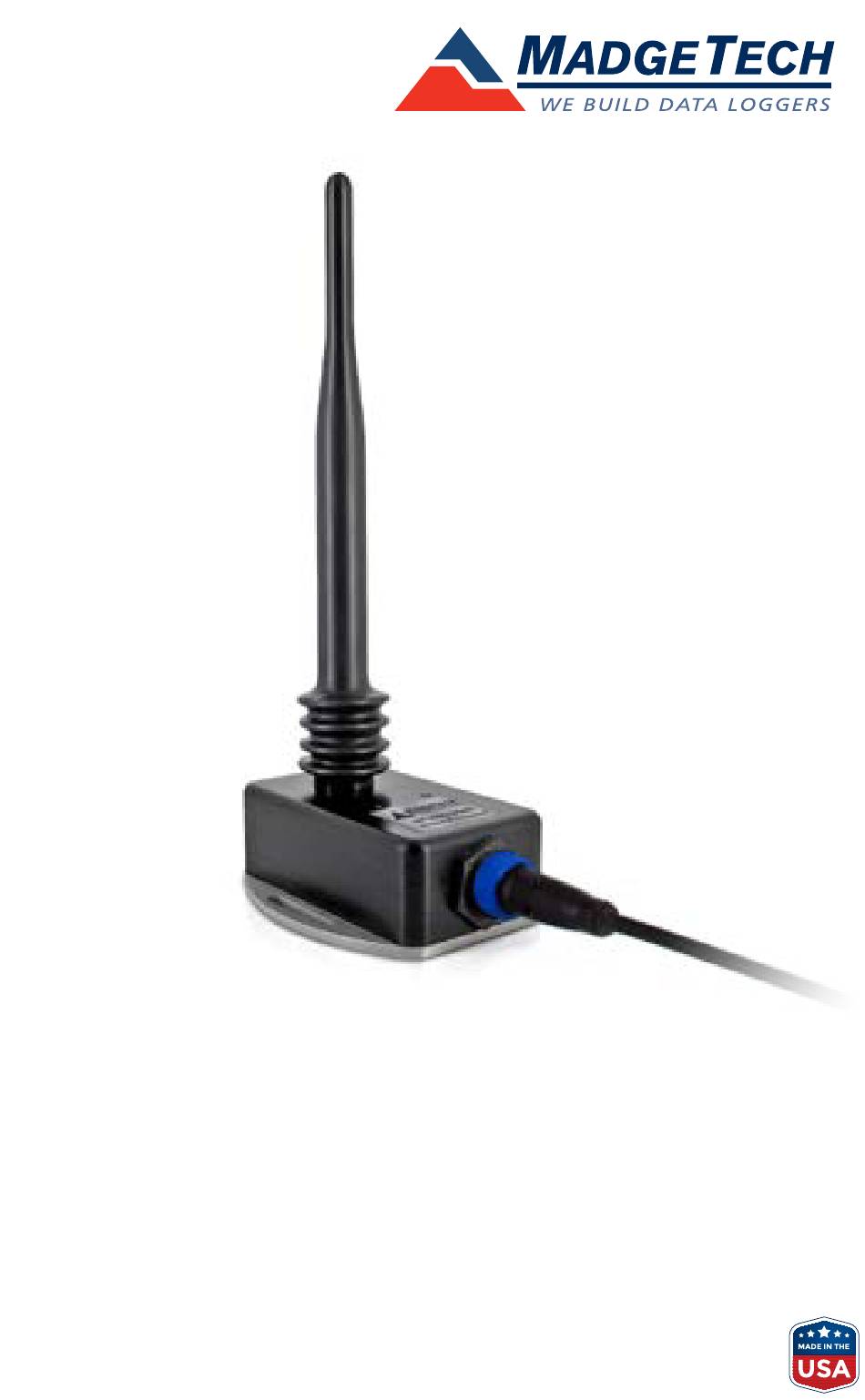

- Page 1 RFC1000-IP69K Splash-Proof Wireless Transceiver for the RFOT, Therm•A•lert and RF2000A data loggers Product User Guide...
-
Page 2: Table Of Contents
Software Installation ..........4 Activating & Deploying the Data Logger ....4 Mounting Instructions ..........5 Channel Programming ......... 6-7 Troubleshooting ............8 Compliance Information .......... 9 General Specifications ........... 10 To view the full MadgeTech product line, visit our website at www.madgetech.com. -
Page 3: Product Overview
Operating Environment The RFC1000-IP69K is rated for use in an environment with temperatures from -20 °C to 85 °C (-4 °F to 185 °F) and a humidity range of 0 %RH to 100 %RH. The device has been specifically tested to ensure its ability to resist water ingress as well as dust. -
Page 4: Software Installation
Select Install on the dialog box. Activating & Deploying the Data Logger Connect an RFC1000-IP69K wireless transceiver to the Windows PC with the provided USB cable. Additional RFC1000’s can be used as repeaters to transmit over greater distances. Plug each one into an electrical outlet in the desired locations. -
Page 5: Mounting Instructions
For best wireless performance, RFC1000-IP69K wireless transceivers and the MadgeTech data loggers should be mounted in the same orientation. This usually means that the external antenna will be pointing straight up. The antenna of the RFC1000-IP69K should also be at least 1.5 inches away from any metal. -
Page 6: Channel Programming
Any RFC1000-IP69K wireless transceiver or MadgeTech data logger on the same network is required to use the same channel. If all of the devices are not on the same channel, the devices will not communicate with one another. - Page 7 RFC1000-IP69K Channel DIP Switch Orientation The images below show the orientations available of the switches for each channel. CH 11 CH 12 CH 13 CH 14 CH 15 CH 16 CH 17 CH 18 CH 19 CH 20 CH 21...
-
Page 8: Troubleshooting
IP69K is listed here, then the software has correctly recognized and is ready to use it. Check that Windows recognizes the connected RFC1000-IP69K wireless transceiver. If the software does not recognize the RFC1000-IP69K, there may be a problem with Windows or the USB drivers. -
Page 9: Compliance Information
RFC1000-IP69K Compliance Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 10: General Specifications
General Specifications Interface Type USB (to PC), Wireless (to Data Logger) RFC1000-IP69K: -20 °C to +85 °C (-4 °F to +185 °F), 0 %RH to 100 %RH non-condensing Operating Environment Power Supply: 0 °C to +40 °C (+32 °F to +104 °F), 20 %RH to 85 %RH... - Page 12 Refer to the Troubleshooting section of this document. » Visit our Knowledge Base online at www.madgetech.com/kbase. » Contact our friendly Customer Support Team at (603) 456-2011 or support@madgetech.com. MadgeTech 4 Software Support: Refer to the built-in help section of the MadgeTech 4 Software. »...
