Global Contract Bridges II Installation Manual

Hide thumbs Also See for Bridges II:

Advertisement

Quick Links

Download this manual See also: Installation Manual

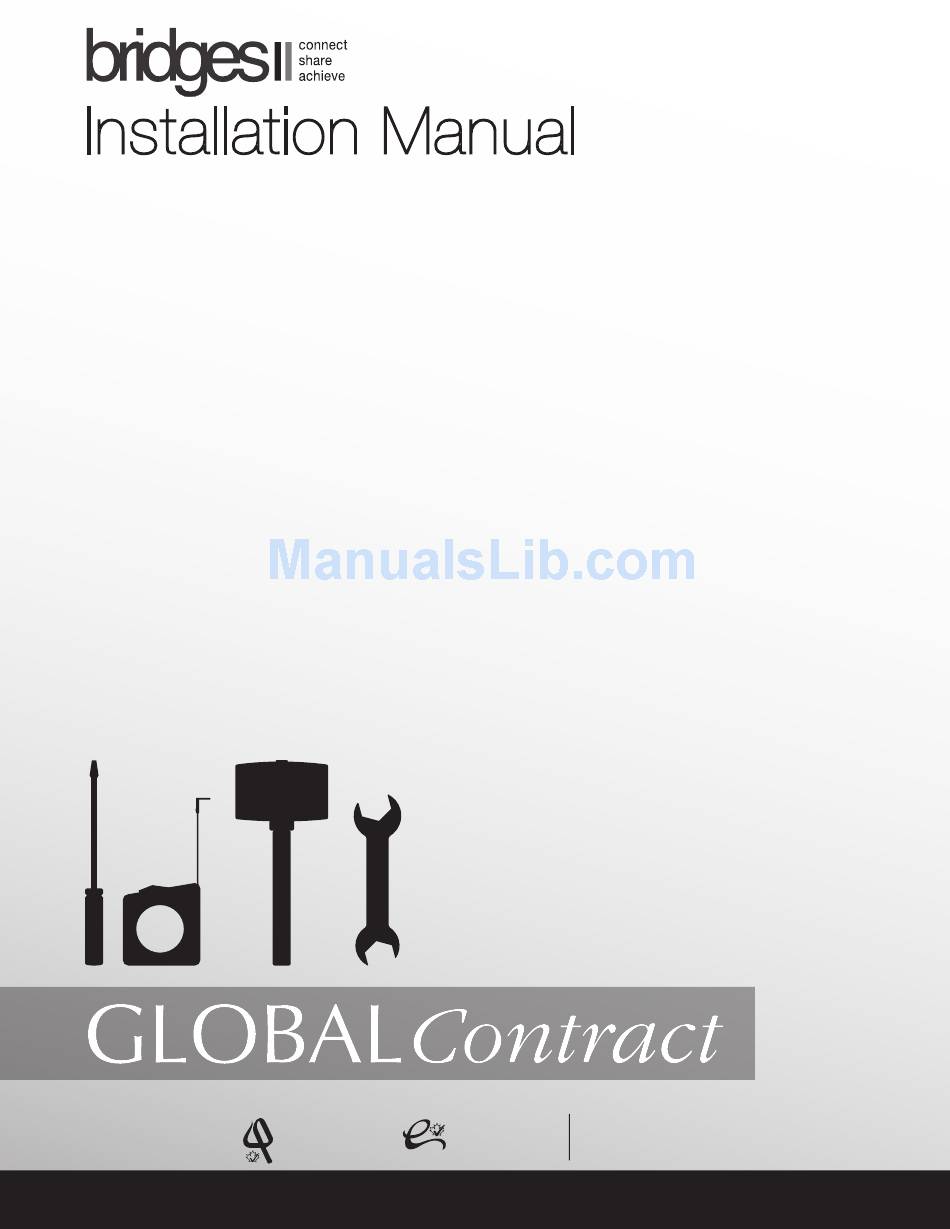

Installation Manual
OHSAS 18001:2007
CGSB #0HS-009
Visit us on the Internet at globalcontract.com • (416) 739-5000
ISO 9001:2008
ISO 14001:2004
CGSB #94613-5
CGSB #EMS-040
2012
Global Contract Inc. 565 Petrolia Road
North York, Ontario, M3J 2X8

Advertisement

loading
Need help?

Need help?

Do you have a question about the Bridges II and is the answer not in the manual?

Questions and answers

Related Manuals for Global Contract Bridges II

Summary of Contents for Global Contract Bridges II

  • Page 1 2012 Installation Manual Global Contract Inc. 565 Petrolia Road OHSAS 18001:2007 ISO 9001:2008 ISO 14001:2004 CGSB #0HS-009 CGSB #94613-5 CGSB #EMS-040 North York, Ontario, M3J 2X8 Visit us on the Internet at globalcontract.com • (416) 739-5000...
  • Page 2 Adaptor Note: Chair can be disassembled in 5 minutes or less VERSION 2 03/18/10 Please contact your Global Contract Service Representative at 416-739-5000 for any questions or concerns. NOTE: Any alterations to listed components will void the manufacturer’s warranty. turer’s specifications. In accordance with the manufacturer’s policy of continual...
  • Page 3 Contract GLOBAL • Fall 2012 INSTALLATION GUIDELINES Supporting Structure Round Leg Height Adjustment Set the legs to desired height. STEP 3: If the desired top surface height is 29” from the floor, for instance, and the table structure is to be on levelers, align top threaded hole in the inner leg (1) with the The inner leg has two threaded holes.
  • Page 4 GLOBAL Contract • Fall 2012 INSTALLATION GUIDELINES Beam Applications Table supporting structures - BEAMS Legs are connected with supporting beams. There is one beam for a single line of tables while two beams connect back 2 back table structures. There are three types of beams whose application principles are common to building support for single-line and back 2 back table assemblies: Single table beam Designed to bridge two legs to form support for a single table, or for two back 2 back work surfaces.
  • Page 5 Contract GLOBAL • Fall 2012 INSTALLATION GUIDELINES Telescopic Beam Designed to provide support for worksurfaces perpendicularly connected to a primary table run. The telescopic beam is connected to the leg’s horizontal, rectangular tube on one side, while the opposite side is secured off module to the perpendicular, central beam and can be adjusted to accommodate 24”...
  • Page 6 GLOBAL Contract • Fall 2012 INSTALLATION GUIDELINES 120° Leg The integrated 120º beam bracket allows for the beam to be mounted in two positions: A) end of run leg placement B) shared leg placement Identify the desired leg position (A or B) STEP 1: Align two mounting holes in beam with two holes in the integrated 120º...
  • Page 7 Contract GLOBAL • Fall 2012 INSTALLATION GUIDELINES Storage Table Beam Storage table beam’s flexibility allows for a single table application (with the table leg tucked in under the work surface) as well as for a double table installation (two adjacent tables supported by a shared leg in the middle (A) and two storage cabinets at the opposite ends).
  • Page 8 GLOBAL Contract • Fall 2012 INSTALLATION GUIDELINES Sliding Return NOTE: Round legs: Sliding Return can be installed anywhere along the front edge of work sur- face supported by round legs. Rectangular legs: Sliding Return can be installed along the front edge of work surface between Rectangular legs.
  • Page 9 Contract GLOBAL • Fall 2012 INSTALLATION GUIDELINES Round Table Supports Round table structure consists of one main leg and two individual legs. STEP 1: Position each individual leg’s end bracket over the main leg’s horizontal, rectangular tube. STEP 2: Secure top and bottom bracket ends with the supplied screws. Level the whole assembly.
  • Page 10 GLOBAL Contract • Fall 2012 INSTALLATION GUIDELINES Power, Data and Cable Management Overview Wire basket Above worksurface back 2 back Power trough with base feed and ceiling feed Below work surface back 2 back Power trough with base feed Ceiling feed Below work surface Single sided Power trough with base feed Storage Power box Power delivery / cable management...
  • Page 11 Contract GLOBAL • Fall 2012 INSTALLATION GUIDELINES Wire Basket Wire Basket 8” wide basket manages cable excess under single and back 2 back work surfaces, as well as under storage cabinets. It is suspended on four spring steel brackets so it can be easily unclipped to rearrange cable connections from below the work surface or below storage units.
  • Page 12 GLOBAL Contract • Fall 2012 INSTALLATION GUIDELINES Below Worksurface Power Trough Installation STEP 2: Engage Trough’s brackets with the leg’s horizontal beam. Ensure that tab “A” fits over the leg beam. Use tab “B” to locate the bracket against the leg work surface bracket as illustrated.
  • Page 13 Contract GLOBAL • Fall 2012 INSTALLATION GUIDELINES Power Trough Electric Components - Below Work Surface Trough Base Feed Identify type and location of required electric components and position STEP 4: Secure all Power Troughs with supplied knurled thumb nuts. them in accordance with lay-out plans. STEP 5: Connect Power Distribution Housings and Jumper Harnesses on STEP 1: Secure Power Feed to the Power Trough brackets (ensure that the the ground, just below their future location.
  • Page 14 GLOBAL Contract • Fall 2012 INSTALLATION GUIDELINES Power Trough Electric Components : Continued STEP 7: Secure interconnected Electrical Components to Power Troughs: Pro- STEP 11: Repeat steps 9 and 10 under the opposite Duplex Receptacle. Proceed ceed from the Power Feed by connecting its harness to the Power Distribution to the opposite end of Power Distribution Housing.
  • Page 15 Contract GLOBAL • Fall 2012 INSTALLATION GUIDELINES Single Sided Power Trough STEP 1: Identify correct length of Single- sided Power Trough and position it up against the bottom of work surface so that its shorter lip rests against the table supporting beam.
  • Page 16 GLOBAL Contract • Fall 2012 INSTALLATION GUIDELINES Above Work Surface Power Trough Identify correct length of Above Work Surface Power Troughs and place them on work surface in their respective locations. Identify type and location of required electric components and position them in accordance with lay-out plans.
  • Page 17 Contract GLOBAL • Fall 2012 INSTALLATION GUIDELINES Ceiling Feed Ceiling feed pole kit consists of a two-part vertical channel and two handed bottom brackets. Ceiling feed pole installation on Above and Below Power troughs is identical. Above trough is illustrated. Ceiling feed harness has already been connected to the Power Distribution Module and data / communication cables, hanging from the ceiling, enter designated Power trough through its grommet.
  • Page 18 GLOBAL Contract • Fall 2012 INSTALLATION GUIDELINES Power Distribution Storage Power Box In order to secure Storage power box to Storage cabinets it is necessary to reposition one of the storage supporting legs so that it will support the Storage power box as well. Every storage leg is provided with two hole patterns: 3+3 holes positioned closer to the edges of the leg extrusion and 2+2 hole pattern closer to the centre of the extrusion.
  • Page 19 Contract GLOBAL • Fall 2012 INSTALLATION GUIDELINES Accessories Dividers Back 2 Back Divider Glass Side 2 Side Divider Parallel divider with integrated modesty panel Perpendicular end of run divider with integrated Modesty Panel Modesty Panel Recessed Flip Down Gable Parallel Dividers, Back 2 Back Tables, Glass And Laminate 36”, 42”, 48”, 54, 60”...
  • Page 20 GLOBAL Contract • Fall 2012 INSTALLATION GUIDELINES Side 2 Side Laminate Divider Note: Side-2-side laminate divider can be installed in the middle of a work surface and over two adjacent work surfaces supported by round legs. Because rectangular legs occupy bottom corners of work surfaces it cannot be installed over two adjacent work surfaces unless they are supported by 34”...
  • Page 21 Contract GLOBAL • Fall 2012 INSTALLATION GUIDELINES Perpendicular, End of Run Note: the Perpendicular end-of-a-run divider can only be installed on rectangular legs. Remove vertical cable manager cover from both legs. STEP 1: Align top brackets with pilot holes and secure with supplied screws.! STEP 2: Slide the end-of-a-run divider top brackets between top of leg’s horizontal beam and the bottom of the work surface and secure with supplied screws.
  • Page 22 GLOBAL Contract • Fall 2012 INSTALLATION GUIDELINES Modesty Panel, Recessed Flip Down Cont. STEP 3: Suspend the modesty panel off the brackets by inserting both shoulder screws through the bracket’s keyholes F. STEP 4: Install joint connector screw as illustrated - the threaded stem screw G com- ing in from the leg side.
  • Page 23 Contract GLOBAL • Fall 2012 INSTALLATION GUIDELINES Storage Shelves Elevated Shelves Parallel Perpendicular Table Mounted End Shelf Storage divider (placement) Shared 24” credenza (placement) Storage tower (see Support beam install page) Storage spine interconnected storage units Support beam adapter wire basket storage spplication Storage and Boulevard, Evolve systems integration Elevated Shelves: Parallel / Perpendicular Parallel elevated shelf A fits over gap between two back-2-back tables.
  • Page 24 GLOBAL Contract • Fall 2012 INSTALLATION GUIDELINES Storage Tower To install storage towers in a worksurface - supporting configuration please see support beam install. WIre basket Please see wire basket install under storage spine. Storage Spine Storage units of equal depth can be configured to form longer, interconnected units supported by shared legs.
  • Page 25 Contract GLOBAL • Fall 2012 INSTALLATION GUIDELINES Storage and Boulevard Systems Integration Several storage units have been designed to connect to Boulevard panel vertical slots. STEP 3: Secure the bottom bracket, but Do NOT tighten. The bottom brackets These specialized units are supported by a leg at the front and by a set of included must be free to slide up in the slots.
  • Page 26 GLOBAL Contract • Fall 2012 INSTALLATION GUIDELINES Storage and Evolve Systems Integration Several storage units have been designed to connect to Evolve panel vertical slots. STEP 3: Secure the bottom bracket, but Do NOT tighten. The bottom brackets These specialized units are supported by a leg at the front and by a set of included must be free to slide up in the slots.
  • Page 27 Contract GLOBAL • Fall 2012 INSTALLATION GUIDELINES globalcontract.com •Page...
