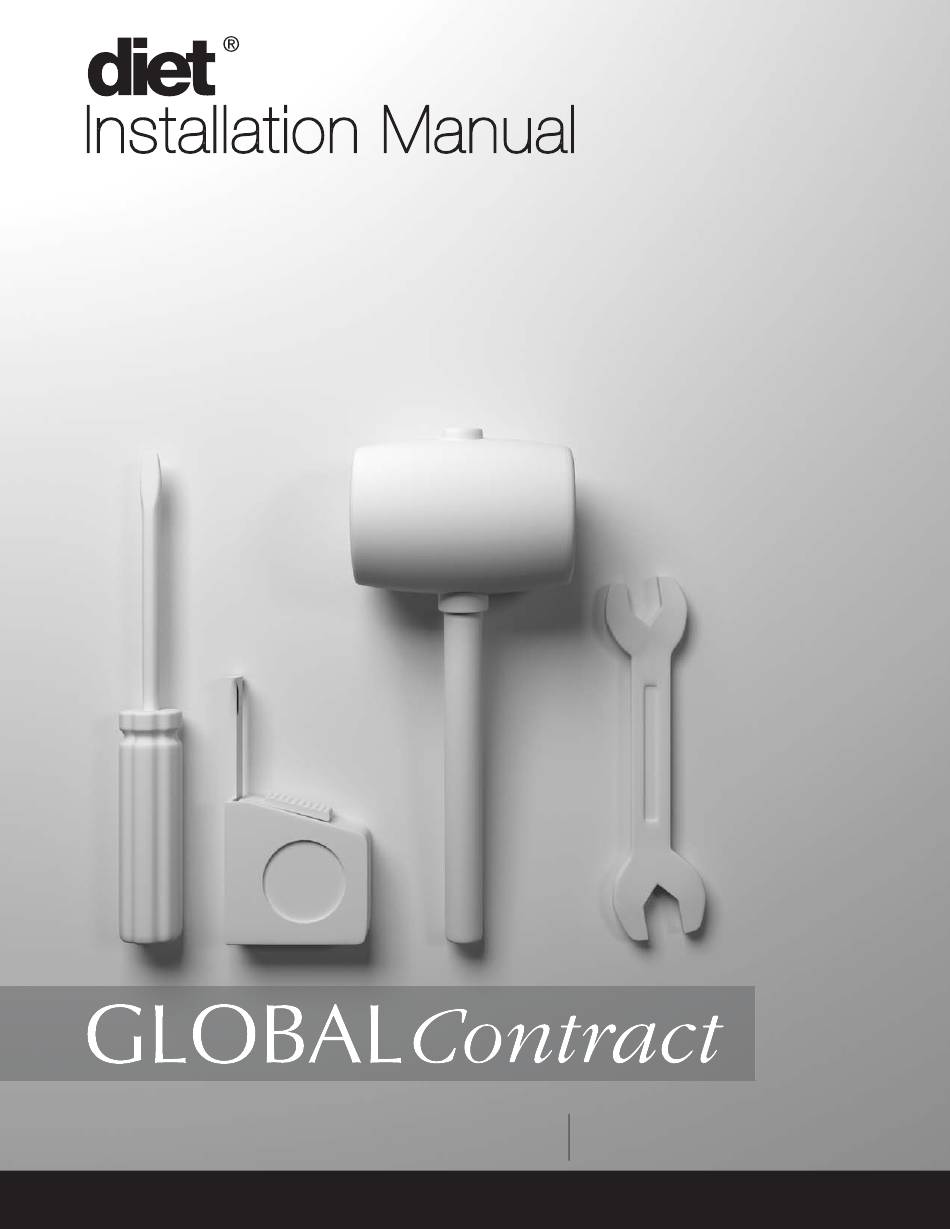

Installation Manual
OHSAS 18001:2007
REVISED: FALL 2017
Visit us on the Internet at globalcontract.com • (416) 739-5000
ISO 9001:2015
ISO 14001:2015
2017
Global Contract Inc. 565 Petrolia Road
North York, Ontario, M3J 2X8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Diet and is the answer not in the manual?

Questions and answers

Summary of Contents for Global Contract Diet

  • Page 1 2017 Installation Manual Global Contract Inc. 565 Petrolia Road OHSAS 18001:2007 ISO 9001:2015 ISO 14001:2015 North York, Ontario, M3J 2X8 REVISED: FALL 2017 Visit us on the Internet at globalcontract.com • (416) 739-5000...
  • Page 2: Table Of Contents

    Open Shelf Off - Module Shelf DSADA Easy-Up Diet Overhead Please contact your Global Contract Service Representative at 416-739-5000 for any questions or concerns. NOTE: Any alterations to listed components will void the manufacturer’s warranty. turer’s specifi cations. In accordance with the manufacturer’s policy of continual...
  • Page 3: Panel Connector

    GLOBAL Contract • Summer 2017 INSTALLATION GUIDELINES Panel Connector Every panel ships with a connecting kit comprising hinges, spacers, screws and hinge pins. Not all pieces included in the connecting kit might get used with every panel (con- necting two stand alone panels at 90°, for example, will only require installation of two hinge / spacer sets at the top and bottom of each panel).
  • Page 4: Off Module Panel Connector

    GLOBAL Contract • Summer 2017 INSTALLATION GUIDELINES Off-Module Panel Connector To connect two panels in an off-module, “T” confi guration remove panel vertical edge trim and remove all connectors and spacers. STEP 1: Secure top off-module bracket to panel vertical with supplied screws. STEP 2: Drive levelers on the second panel all the way in and hold the panel in a tilted position.
  • Page 5: Wall Adapter

    GLOBAL Contract • Summer 2017 INSTALLATION GUIDELINES Wall Adapter Remove panel vertical edge trim on the side facing the wall. STEP 1: Secure temporarily top bracket to panel vertical member by driving supplied screw into top hole. STEP 2: Remove leveler, add supplied nut and lock the bottom bracket between the nut and the bottom of panels vertical member.
  • Page 6: Diet To Boulevard Slot Connector

    STEP 4: Slide one screw with screw anchor up into panel’s vertical groove, into bracket’s slot and secure by tightening the screw. STEP 5: Lift the Diet panel and hook it with the secured bottom bracket into slots on perpendicular Boulevard panel.
  • Page 7 Contract • Summer 2017 INSTALLATION GUIDELINES Diet to Boulevard Slot Connector STEP 1: Remove panel’s top corner cap by carefully tapping the underside of the cap through side vertical grooves. STEP 2: Slide over panel connecting brackets halfway into over panel’s vertical groove as illustrated.
  • Page 8: Diet To Boulevard Connecting Kit

    There are three basic confi gurations (please note the position and the use of ‘Connec- tor and Filler profi les): STEP 1: Begin the actual installation by securing Connector profi le to Diet panel’s ver- tical with supplied screws. Note the asymmetrical shape of connector extrusion and ensure that the larger side of the connector detail must be on the left side when facing panel’s vertical extrusion or it would not engage with Boulevard panel interface.
  • Page 9: Diet Freestanding Panel Mobile Kit

    Contract • Summer 2017 INSTALLATION GUIDELINES Diet Freestanding Panel Mobile Kit STEP 1: Remove levelers from the bottom of the panel vertical extrusion. STEP 2: Align the bracket so the legs with the casters run perpendicular to the length of the panel.
  • Page 10: Diet Panel Gap Filler Installation

    PVC end trim. It is the same gap through which panel hinge connectors protrude. The gap fi ller fi lls the gap between Diet panels, from the bottom edge of the top hinge connector to the top edge of the bottom connector. If there are more then two hinges connecting the two adjacent panels then trim the length of the fi...
  • Page 11: Degree Confi Gurations

    GLOBAL Contract • Summer 2017 INSTALLATION GUIDELINES 90 Degree Confi gurations approved by UL The following 90º confi gurations must be locked with either shelves (fi gure 1), over- head (fi gure 2) or worksurfaces (fi gure 3 and 4) to be UL listed. Figure 1 and Figure 2 must use return wing panels of 36”...
  • Page 12: Diet Electrical

    Contract • Summer 2017 INSTALLATION GUIDELINES Diet Electrical STEP 1: Make sure that all panel structures and work surfaces are leveled and securely connected before proceeding with installation of power components. STEP 2: Identify type and length of specifi ed components and position them in ac- cordance with layout plans.
  • Page 13: Diet Electrical Components

    STEP 9: Ceiling Bezel provides trim for Power Pole. STEP 10: Diet Panel Raceway Cover with partial receptacle and data knockouts. STEP 11: Raceway Junction Cover provides an external cover for cables between panels globalcontract.com...
  • Page 14: Diet Electrical Installation

    (Electrical Feed Block, Duplex Receptacle Blocks, Harnesses) on the fl oor, next to the panel run. STEP 4: Snap Receptacle Spacer to the bottom groove of Diet panel frame. Use one Receptacle Spacer on each end of the panel. Ensure that the Receptacle Spacer rests snugly next to panel’s vertical extrusion.
  • Page 15 STEP 5: Insert the Duplex Receptacle Block mounting bracket into the bottom groove of the Diet panel frame as illustrated. STEP 6: Insert the Duplex Receptacle Block retainer into the bottom groove of the Diet panel frame. Align it with the Mounting Bracket.
  • Page 16: Diet Communication Installation

    Contract • Summer 2017 INSTALLATION GUIDELINES Diet Electrical installation STEP 14: Align the two desk height keyholes with the groove in the panel’s horizontal, desk height frame extrusion. STEP 15: Insert two rectangular anchor nuts with supplied screws through the keyholes in the Power Pole.
  • Page 17 Diet Data/Communication installation Data and communication cables distributed above ceiling grid typically descend through a Power Pole and enter the Diet raceway cavity either through a gap between Diet Raceway Cover at any panel junction, or between the Raceway Cover and the Raceway Junction Cover.
  • Page 18: Cable Management

    Viceversa tables, or optional cable manager for Diet panels. The diet panel cable manager attaches to the bottom of full height Diet panel, or to the bottom of mid rail on Diet panels without bottom fabric area.
  • Page 19 5) Position cable in the gap between worksurface and panel as required. 6) Use Viceversa optional Cable snake to organize cables between worksurface level and fl oor standing CPU or Diet panel cable manager. Surge protected power bars (DABAR) are provided with mounting keyholes at the back.
  • Page 20: Worksurfaces

    GLOBAL Contract • Summer 2017 INSTALLATION GUIDELINES Worksurface Support Ensure that all panels are leveled and securely connected before proceeding with installation of worksurfaces. Determine type, size and location of worksurfaces. Determine type and location of worksurface supports and stage them accordingly, in the proximity of their future location.
  • Page 21: Worksurface Universal Flat Bracket

    GLOBAL Contract • Summer 2017 INSTALLATION GUIDELINES Worksurface Universal/Flat Bracket Place worksurface up side down on a clean fl oor, free of any objects that could cause damage to the top. STEP 1: Position two brackets along the rear edge, at least 1.5” from sides and secure them to the top with supplied screws.
  • Page 22: Gable Leg

    GLOBAL Contract • Summer 2017 INSTALLATION GUIDELINES Gable Leg / Shared Gable Leg Gable leg can be assembled on site in a left or right confi guration. If the top plate / leg assembly does not fi t your needs as shipped, follow these steps: STEP 1: Loosen the large head screw fi...
  • Page 23: Pedestal Bracket / Corner Plate

    GLOBAL Contract • Summer 2017 INSTALLATION GUIDELINES Pedestal Bracket / Corner Plate Ensure that all panels are leveled and securely connected before proceeding with installation of worksurfaces supports. STEP 1: Align the fi rst bracket’s edge with pedestal’s top corner and rear vertical edge as illustrated.
  • Page 24: Transaction Bracket

    GLOBAL Contract • Summer 2017 INSTALLATION GUIDELINES Transaction Brackets STEP 1: Remove panel’s top corner cap by carefully tapping the underside of the cap through side vertical groves. Pre-assemble both brackets, screws and screw anchors by threading the screws through the brackets holes and turning screw anchors.
  • Page 25: Combining Diet And Boulevard Worksurfaces

    Repeat the procedure on opposite side. (See page 8 for details) STEP 4: If you are installing a perpendicular Diet worksurface / return, use Flat plates at the bottom as illustrated. Follow procedures described in “Worksurface support” chapter to install Gable leg or pedestal at the end of the Diet panel.
  • Page 26: Off-Module Cantilever

    GLOBAL Contract • Summer 2017 INSTALLATION GUIDELINES Off-Module Cantilever STEP 1: Remove three top screws to separate horizontal arm. STEP 2: Engage bottom cantilever bracket into panels’ bottom horizontal rail. STEP 3: Bring cantilever’s upright into vertical position. STEP 4: Engage horizontal cantilever arm into panel’s mid horizontal rail. STEP 5: Align holes and replace three top screws.
  • Page 27: Storage

    GLOBAL Contract • Summer 2017 INSTALLATION GUIDELINES Storage Ensure that all panels are leveled and securely connected before proceeding with installation of storage units. Determine type and location of individual storage units and stage them accord- ingly, as specifi ed on your plan, in the proximity of their future location. STEP 1: Open shelf STEP 2: Off-module shelf STEP 3: Panel / table shelf...
  • Page 28: Open Shelf

    GLOBAL Contract • Summer 2017 INSTALLATION GUIDELINES Open Shelf Open shelf must always be supported by three panels set in a “U” confi guration. The Open shelf can be installed into any horizontal, panel integrated rail, but it must never be installed on top of glazed, or semi-glazed panels. The shelf is provided with two, permanently attached brackets at the back.
  • Page 29: Off - Module Shelf

    GLOBAL Contract • Summer 2017 INSTALLATION GUIDELINES Off - Module Shelf STEP 1: Secure a side hanging arm to either side of the shelf by driving supplied machine screws through the shelf, into the arms. STEP 2: Insert top of the hanging arms into panel’s top or mid horizontal rail. STEP 3: Adjust side-to-side location and release.
  • Page 30: Dsada Easy-Up Diet Overhead

    • Summer 2017 INSTALLATION GUIDELINES DSADA Easy-Up Diet Overhead When you order easy-Up Overhead for Diet System application, it arrives with assembled back panel and two handed, extended cantilevers. The actual installation is very straightforward but there are a few important preparation steps...
  • Page 31 GLOBAL Contract • Summer 2017 INSTALLATION GUIDELINES Fine Tuning The Overhead Storage Units are factory assembled and inspected. Tension of the door mechanism is adjusted in accordance with the size and the weight of the door. 1) Properly adjusted door mechanism will take over the weight of the door and lift it as soon as the door bottom is moved about 3 1/2”...
  • Page 32 GLOBAL Contract • July 2012 GLOBAL Contract • June 2016 THE GLOBAL GROUP SHOWROOM 1350 Flint Road, Toronto, Ontario, M3J 2J7 Sales & Marketing • TEL: 1-877-446-2251 • FAX: 416-667-0338 Customer Service • TEL: 416-739-5000 • FAX: 800-361-3182 VANCOUVER SHOWROOM 3823 Still Creek Avenue Burnaby, BC, V5C 4E2 •...
