BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES
Write Serial Number here:
______________________
_

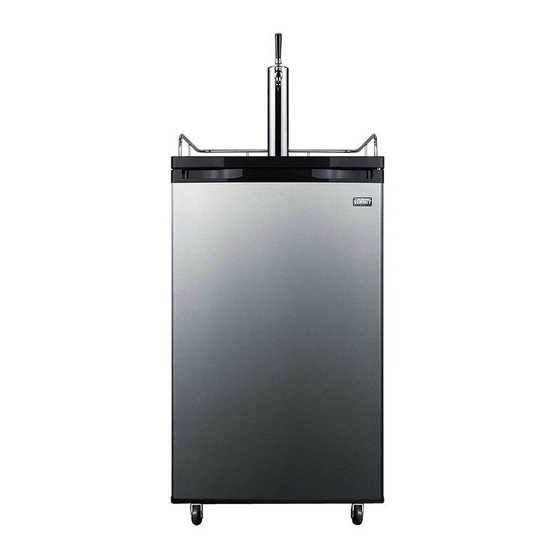

BEER DISPENSER
Models SBC582B
USER'S MANUAL
AND OPERATING INSTRUCTIONS.
SBC583SS
FELIX STORCH, INC.
Summit Appliance Division
An ISO 9001:2015 registered company
770 Garrison Avenue
Bronx, New York 10474
www.summitappliance.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBC583SS and is the answer not in the manual?

Questions and answers

Related Manuals for Summit SBC583SS

Summary of Contents for Summit SBC583SS

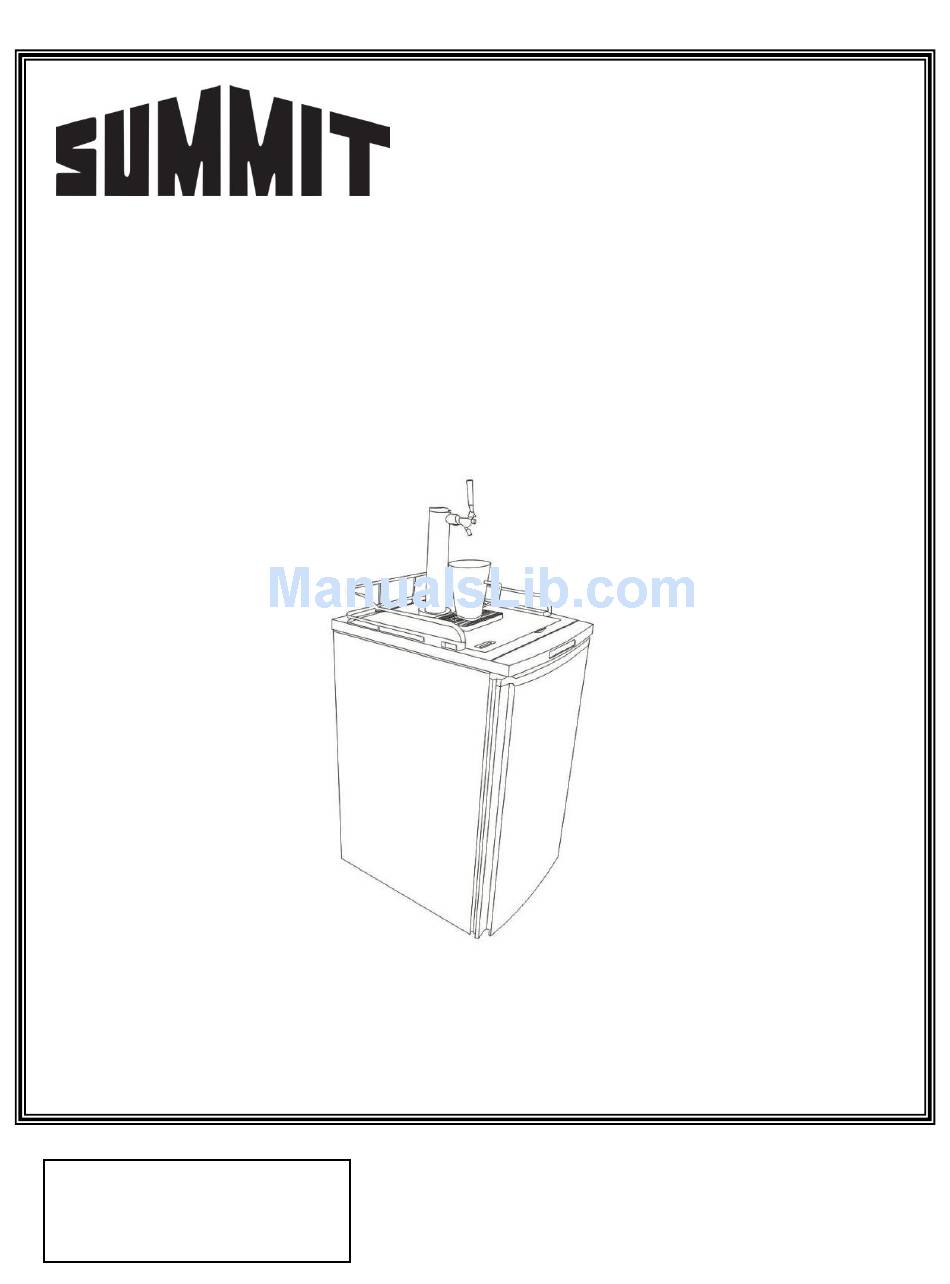

  • Page 1 Models SBC582B SBC583SS USER’S MANUAL BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. FELIX STORCH, INC. Summit Appliance Division Write Serial Number here: An ISO 9001:2015 registered company 770 Garrison Avenue ______________________ Bronx, New York 10474...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safeguides __________________________________________________ 3 - 5 Parts and Features ________________________________________________________ 6 Installation Instructions ________________________________________________ 7 - 15 Before Using Your Beer Dispenser _________________________________________ 7 Installation of Your Beer Dispenser _________________________________________ 7 Electrical Connection ____________________________________________________ 8 Extension Cord ________________________________________________________ 8 Reversing The Door Swing of Your Appliance _________________________________ 8 Using CO Gas _________________________________________________________ 9...

  • Page 3: Important Safeguides

    IMPORTANT SAFEGUARDS Your safety and the safety of others are very important. We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others.
  • Page 4  Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.  Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this manual.
  • Page 5  Never allow children to operate, play with or crawl inside the appliance.  If you use the drainage container, you must set the drain select switch to OFF or the water can overflow from the drainage container.  Although the unit has been tested at the factory, due to long-term transit and storage, the first batch of ice cubes must be discarded.

  • Page 6: Parts And Features

    PARTS AND FEATURES Beer Tower Mylar Washer Safety Guard Rail Drip Tray Adjustable Thermostat Regulator Gas Cylinder Gas Cylinder Holder Evaporator Reversible Door Beer Keg (Not Included) Metal Plate Metal Bracket (2) Casters with Lock (4)

  • Page 7: Installation Instructions

    INSTALLATION INSTRUCTIONS  Before Using Your Beer Dispenser  Remove the exterior and interior packing.  Check to be sure you have all of the following parts:  1 Instruction manual  1 Safety Guard Rail  1 Drip Tray (2 Pieces) ...

  • Page 8: Electrical Connection

     Electrical Connection   Warning Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Products service center. This unit should be properly grounded for your safety. The power cord of this unit is equipped with a three-prong plug which mates with standard three-prong wall outlets to minimize the possibility of electrical shock.

  • Page 9: Using Co 2 Gas

     Using CO WARNING: GAS CAN BE DANGEROUS! cylinders contain high-pressure compressed gas which can be hazardous if not handled properly. Make sure you READ and UNDERSTAND the following procedures for CO cylinders BEFORE INSTALLATION. 1. ALWAYS connect the CO cylinder to a regulator.

  • Page 10: Beer Keg Installation Sketch

    Beer Keg Installation Sketch Installation of Casters with Lock  Remove the 4 casters from one of the boxes inside the unit. Install the two casters with metal bracket at the front designated positions of the cabinet base and the remaining two casters at the rear designated positions.

  • Page 11: Installation Of Co 2 Cylinder Holder, Cylinder And Regulator

    Installation of CO Cylinder Holder  Install the metal holder provided onto the 4 studs located on the exterior back wall. Align the holes in the holder with the studs and push down firmly. (See Figure 1) Installation of CO Cylinder ...

  • Page 12: Installation Of Beer Keg, Etc

    Installation of the Beer Keg  Position the beer keg directly in front of the open door. Using keg handles only, carefully lift the beer keg. (See Figure 4)  To place the beer keg inside the cabinet, brace your knees behind the beer keg. Lift the front of the keg just enough so the front edge of the keg is resting on the front edge of the Beer Dispenser bottom cabinet.

  • Page 13: Installation Of Beer Tower, Etc

    Installation of the Beer Tower  Remove the top plug by twisting and pulling out, saving it for later use if you decide to convert unit to an all-refrigerator.  Unravel the beer line (clear hose) from the tower and insert the beer line and wing nut through the uncovered hole on top.

  • Page 14: Faucet Wrench And Plastic Lever

     Faucet Wrench  Faucet wrench provided for either removing or tightening connection. (See Figure 10) Figure 10  Plastic Faucet Lever  Attach the black plastic lever (pull handle) provided on the top of the faucet, tightening it by hand clockwise until the end, holding in the silver snug underneath so it does not move.

  • Page 15: Operating Your Beer Dispenser

    6. Disconnect the beer line and CO air line from the keg coupler. 7. Remove the beer keg and bottom metal plate. 8. Remove the keg coupler. 9. Disconnect the air line from the CO cylinder. 10. Remove the CO air line from cabinet plug.

  • Page 16: Care And Maintenance

    CARE AND MAINTENANCE  Cleaning Your Beer Dispenser  Turn the temperature control to "OFF", unplug the beer dispenser, and remove the contents.  Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.

  • Page 17: Draught Beer Troubleshooting Guide

    DRAUGHT BEER TROUBLESHOOTING GUIDE CLOUDY BEER When beer in glass appears hazy and not clear: Causes Corrections   Over-chilling beverage cooler and/or Excessive low temperatures may cause hazy, beverage lines. cloudy beer, particularly when beer lies in cold coil for long periods of time. Make certain that lines are thoroughly cleaned, and then raise temperature slightly.
  • Page 18   Improper drawing of beer into glass. Open faucet quickly and completely.  Check and find the correct distance to hold glass from faucet when drawing. Proper foam should be a tight creamy head, and the collar on the average glass should be ¾”...
  • Page 19 LOOSE FOAM Causes Corrections  Large soap-like bubbles (sometimes called  This is generally a Flat Beer condition: the fish eyes). Foam settles quickly. Causes and corrections for Flat Beer should be followed. OFF-TASTE BEER Often bitter and bitey, sometimes completely lacking in flavor and zest, carrying an unpleasant taste.
  • Page 20 SOUR BEER May taste and smell extremely yeasty or moldy. Cause Corrections  Contaminated Air Line.  See Cloudy Beer, Correction #3  See Off-Taste Beer, Correction #2  See Flat Beer, Correction #7  Improper transportation of barrels of ...
  • Page 21  Beer too warm in Air Shaft  In sweet-water refrigerated, or ice-water system, System. faucet shank must always be submerged.  In Cold Air System, the coldest air from the blower must first be directed to the faucet, and then circulated back to pre-cooler.

  • Page 22: General Troubleshooting

    TAIL END BEER Beer draws well at the beginning of the barrel. Towards the end of the barrel the beer is flat. This is more likely to occur when beer turnover is slow. Causes Corrections  Where air is used as a pressure source, air ...

  • Page 23: Wiring Diagram

    WIRING DIAGRAM...

  • Page 24: Limited Warranty

    LIMITED WARRANTY ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship.
