Summary of Contents for Summit SBC490

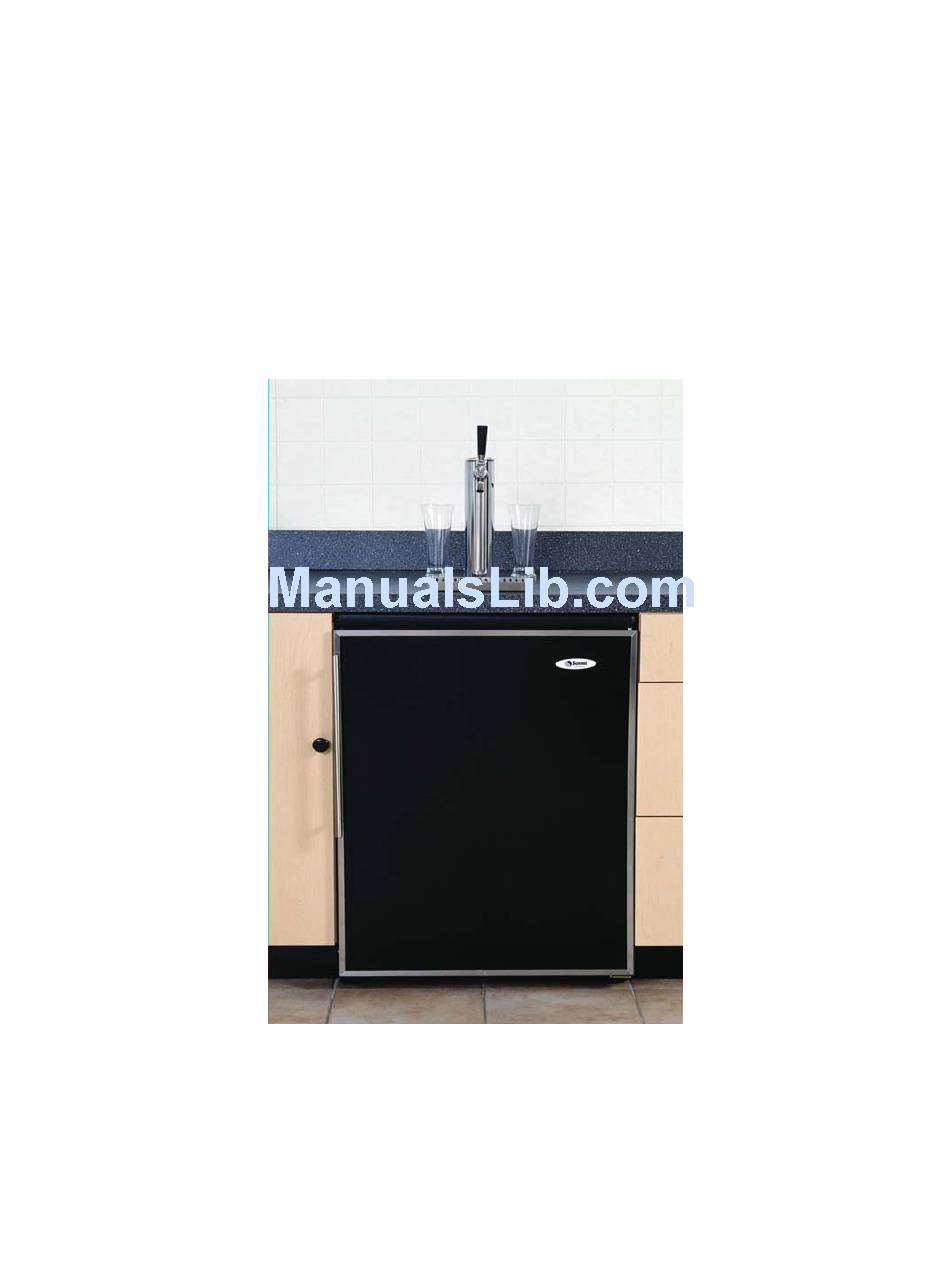

- Page 1 FELIX STORCH, INC. SUMMIT APPLIANCE DIVISION 770 GARRISON AVENUE BRONX, NY 10474 SBC490Bi (All Versions) UNDER-COUNTER FULLSIZE BEER DISPENSER...
-
Page 2: Table Of Contents
Understanding Beer Temperature………11 Beer Serving Tips……………………………………11 Converting the Beer Dispenser to an All-Refrigerator ...12 Converting the Beer Dispenser to a Built-In Unit……………...13 Maintenance and Cleaning Automatic Defrosting of the Refrigerator….14 Installing the Cleaning Kit………………...14 Cleaning the Appliance……………………………………….15 Troubleshooting…………………………………………………………………..16&17 Noise……………………………………………………………………………………………..17&18 numbers here:... -
Page 3: Before Putting Into Use
All models of the SBC- 490 can be converted into a beverage refrigerator. These units are designed for beer and beverages only, and are not recommended for perishable foods such as meats or dairy products. -
Page 4: Important Safety
To reduce the risk of fire, electric shock, or injury when using your appliance, follow these basic precautions: *Read all instructions before using the appliance. *The appliance must be correctly connected to the power supply. *Immediately replace worn power cords, loose plugs and power outlets. *Do not operate your appliance in the presence of explosive fumes. -
Page 5: Disposing Of Worn Out Appliance
WORN OUT Appliance -When your appliance finally wears out, dispose of it. -Before you dispose of your old refrigerator or freezer: Take the door or the drawers off so that children may not easily climb inside. -The refrigerating system of the appliance is filled with refrigerant and insulating substances which should be separately recycled. -
Page 6: Placing And Installation
PLACING AND INSTALLATION HOOSING THE IGHT LACE To ensure that your beer dispenser works at the maximum efficiency it was designed for, install it in a location where there is proper air circulation and electrical connections. Choose a location where the beer dispenser will be away from heat and will not be exposed to direct sunlight. -
Page 7: Operation Control
Use the higher thermostat setting only when required or recommended. The coolness of the refrigerator depends on how often you open and close the door or rawer. To turn the refrigerator off you must turn the thermostat to 0 (off). -
Page 8: Installation
KEG TAPPER AND BEER KEG The Sankey type keg tapper supplied with the beer disperser is the most widely used in the United States. However, other types of keg tappers can be used. Before installing a keg taper check with your beer distributor to make sure that the Sankey type keg tapper can be used. -
Page 9: Draft Arm Assembly
Note: allow the beer dispenser to stand in an upright position for 8-10 hours before turning on. Once all four casters have been tightened evenly, stand the cabinet in an upright position. DRAFT ARM ASSEMBLY *Slide gasket over wing nut on bottom of draft arm assembly beer tubes. Slide gasket beer tube to draft arm base. -
Page 10: Use
1 Guard rail 1 Drip tray 4 Casters ( for conversion to portable beer cooler) 2 Hose clamps 2 Removable shelves (installed) for conversion to a beverage refrigerator 8 Small Phillips head screws 4 Large Phillips head screws 2 Retainer fixing screws... -
Page 11: Understanding Beer Temperature
The best temperature for storing a keg is approximately 38º F; excessively cold or warm temperatures inside the refrigerator cabinet may cause a loss of flavor. -
Page 12: Converting The Beer Dispenser To A Built-In Unit
Note: When using as a refrigerator, we do not recommend the use of casters, as stored items may fall off the shelves when the unit is in motion. 1. Close the main valve on the CO 2. Close the connection between the beer keg and the keg tap by pulling and lifting the handle of the keg into an upright position 3. -
Page 13: Maintenance And Cleaning
12.5 inches from front to midpoint Drill a Round Hole 2. Place the drill bit on the midpoint and make a round hole with a diameter of 17/8 inches. Installation: See Installation Instructions. MAINTENANCE AND CLEANING AUTOMATIC DEFROSTING OF THE REFRIGERATOR... -
Page 14: Installing The Cleaning Kit
There is usually no need to defrost the refrigerator, because the ice deposited on the inner back wall is automatically defrosted. Ice deposits on the inner back wall during compressor operation; later on, when the compressor is not operating, the ice defrosts and water drains through the outlet in the inner back wall into the drain pan situated above the compressor where it evaporates. -
Page 15: Troubleshooting
Use a wax polish that is suitable for appliances Apply the wax or polish when the refrigerator is new and then at least twice a year Door Gasket Cleaning Clean the door gasket with a damp cloth every three months. The gasket must be kept... - Page 16 BEER CONDITION: CLOUDY BEER: The beer in the glass appears hazy and not clear. Cause #1 Excessively low temperatures may cause hazy or cloudy beer, particularly when the beer lies in the cold coil for long periods of time. Correction *Do not wash beer glasses together with glasses that have contained milk or any other fatty substance.
-
Page 17: Noise
It is normal to see condensation forming in the faucet. It is caused by a difference in temperature between the cold beer and the inner surfaces of the faucet when beer is flowing through the line. Beer that is left in the faucet is not cooled by the refrigerator. Correction... - Page 18 Check the bottles, tins and other vessels that might touch each other and rattle. Summit Outdoor refrigerators contains a rear fan which runs only when the compressor is on, and some models have an internal air circulation fan which runs continuously. A...
