CP-114UL

Quick Installation Guide

Second Edition, June 2008
1. Overview

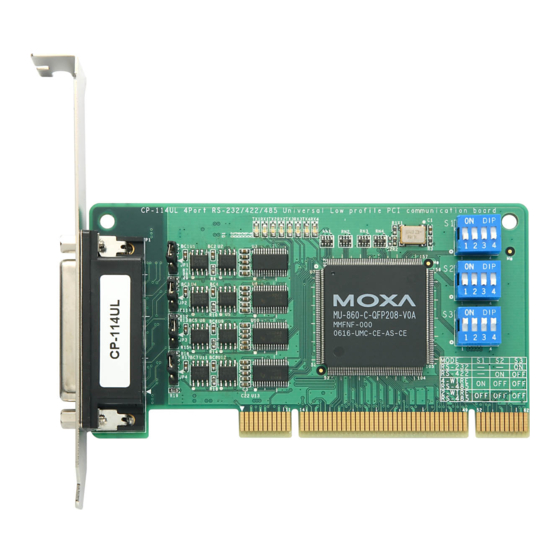

The CP-114UL is a 4-port RS-232/422/485 Universal PCI serial board
that can be installed in a PC to connect a wide range of serial devices—
including terminals, modems, printers, scanners, cash registers, bar code
readers, keypads, numeric displays, electronic scales, and data acquisition
equipment. It is designed for POS and ATM applications as well as
industrial automation systems. With on-chip hardware and software flow
control, plus a built-in 128-byte Tx/Rx FIFO, the CP-114UL supports
data transmission speeds of up to 921.6 Kbps.
2. Package Checklist
Before installing the CP-114UL, verify that the package contains the
following items:
CP-114UL Universal PCI board
Standard & low profile bracket
Documentation and Software CD-ROM
Quick Installation Guide
5-year Product Warranty Statement
Please notify your sales representative if any of the above items are
missing or damaged.
3. Hardware Installation Procedure
The CP-114UL board MUST be installed in the PC before installing the
driver. The following directions explain how to install the board in the
PC.
STEP 1: Power off the PC.
STEP 2: On the CP-114UL, select the serial interface using the DIP
switches as shown below:
Mode S1 S2
RS-232 --- ---
RS-422 --- ON OFF
4-wire RS-485 ON OFF OFF
2-wire RS-485 OFF OFF OFF
STEP 3: Plug the board firmly into an open PCI or PCI-X slot on the PC.
STEP 4: Use the screw to secure the control board into place.
STEP 5: Attach the connection cables.
STEP 6: Power on the PC. The BIOS will automatically set the IRQ and
I/O address.
— 1 —
4. Software Installation
Do NOT install the driver until you have physically installed the board.
Please refer to the previous section for instructions on installing the board.
Refer to the Universal PCI User's Manual for detailed instructions on
installing the drivers.
Windows Vista (32-bit/64-bit)
1. After powering on your PC, Windows Vista will automatically detect
the serial board.
2. Insert the Document and Software CD in your CD-ROM drive.
3. Select Locate and install driver software(recommended).
4. When you receive a message stating "Windows needs your permission
to continue", click Next to continue.
5. Select "I don't have the disc, show me other options".
6. Select "Browse my computer for driver software(advanced)".
7. For 32-bit (x86) systems, select the
\CP-114UL\Software\Windows Vista\x86 folder on the CD.
For 64-bit (x64) systems, select the
\CP-114UL\Software\Windows Vista\x64 folder on the CD.
Click Next to continue.
8. If you see a warning that the software has not passed Windows Logo
testing, select Install this driver software anyway.
9. After the driver software has been installed, the installation wizard will
guide you through the port installation, starting with port 0.
10. To verify successful installation, use Windows Device Manager and
check under Multi-port serial adapters and Ports (COM & LPT)
for any special marks, such as a question mark or exclamation point.
Windows 2003 and XP (32-bit/64-bit)
1. After powering on your PC, Windows 2003/XP will automatically
detect the serial board.
2. Insert the Document and Software CD in your CD-ROM drive.
3. Select Install from a list or specific location (Advanced).
4. Select Search for the best driver in these locations, Include this
location in the search, and click Browse.
5. For 32-bit (x86) systems, select the
\CP-114UL\Software\Windows XP_2003\x86 folder on the CD.
For 64-bit (x64) systems, select the
\CP-114UL\Software\Windows XP_2003\x64 folder on the CD.
Click Next to continue.
S3
6. If you see a warning that the software has not passed Windows Logo
ON
testing, select Continue Anyway.
7. After the driver software has been installed, the installation wizard will
guide you through the port installation, starting with port 0.
8. To verify successful installation, use Windows Device Manager and
check under Multi-port serial adapters and Ports (COM & LPT)
for any special marks, such as a question mark or exclamation point.
P/N: 1802001142320
— 2 —
Windows 2000
1. After powering on your PC, Windows 2000 will automatically detect
the serial board.
2. Insert the Document and Software CD in your CD-ROM drive.
3. Select Search for a suitable driver for my device (recommended).
4. In Optional search location, select specify a location. Select the
\CP-114UL\Software\Windows 2K folder on the CD and click OK to
continue.
5. If you see a warning that the software has not passed Windows Logo
testing, select Continue Anyway.
6. After the driver software has been installed, the installation wizard will
guide you through the port installation, starting with port 0. Be sure to
install the software from the \CP-114UL\Software\Windows 2K
folder on the CD.
7. To verify successful installation, use Windows Device Manager and
check under Multi-port serial adapters and Ports (COM & LPT)
for any special marks, such as a question mark or exclamation point.
Linux (32-bit/64-bit)
1. Execute the following commands from the Linux prompt:
#mount /dev/cdrom /mnt/cdrom
#cd /
#mkdir moxa
#cd moxa
#cp /mnt/cdrom/<driver directory>/mxser.tgz .
#tar xvfz mxser.tgz
#cd mxser
#make clean; make install
#cd /moxa/mxser/driver
#./msmknod
#modprobe mxser
2. Use the Moxa diagnostic utility to verify the driver status:
#cd /moxa/mxser/utility/diag
#./msdiag
3. Use the Moxa terminal utility to test the TTY ports:
#cd /moxa/mxser/utility/term
#./msterm #./msterm
