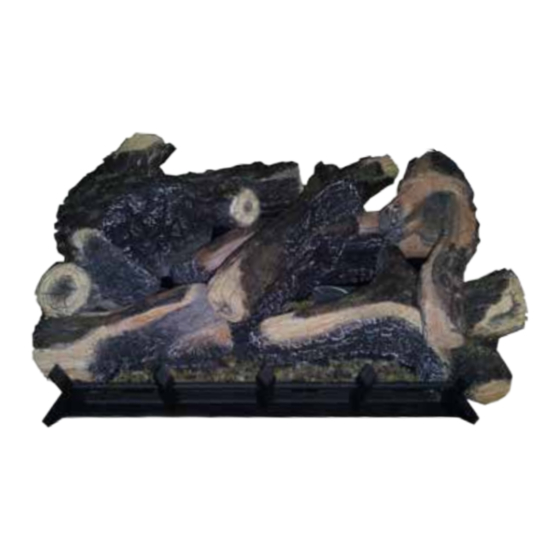

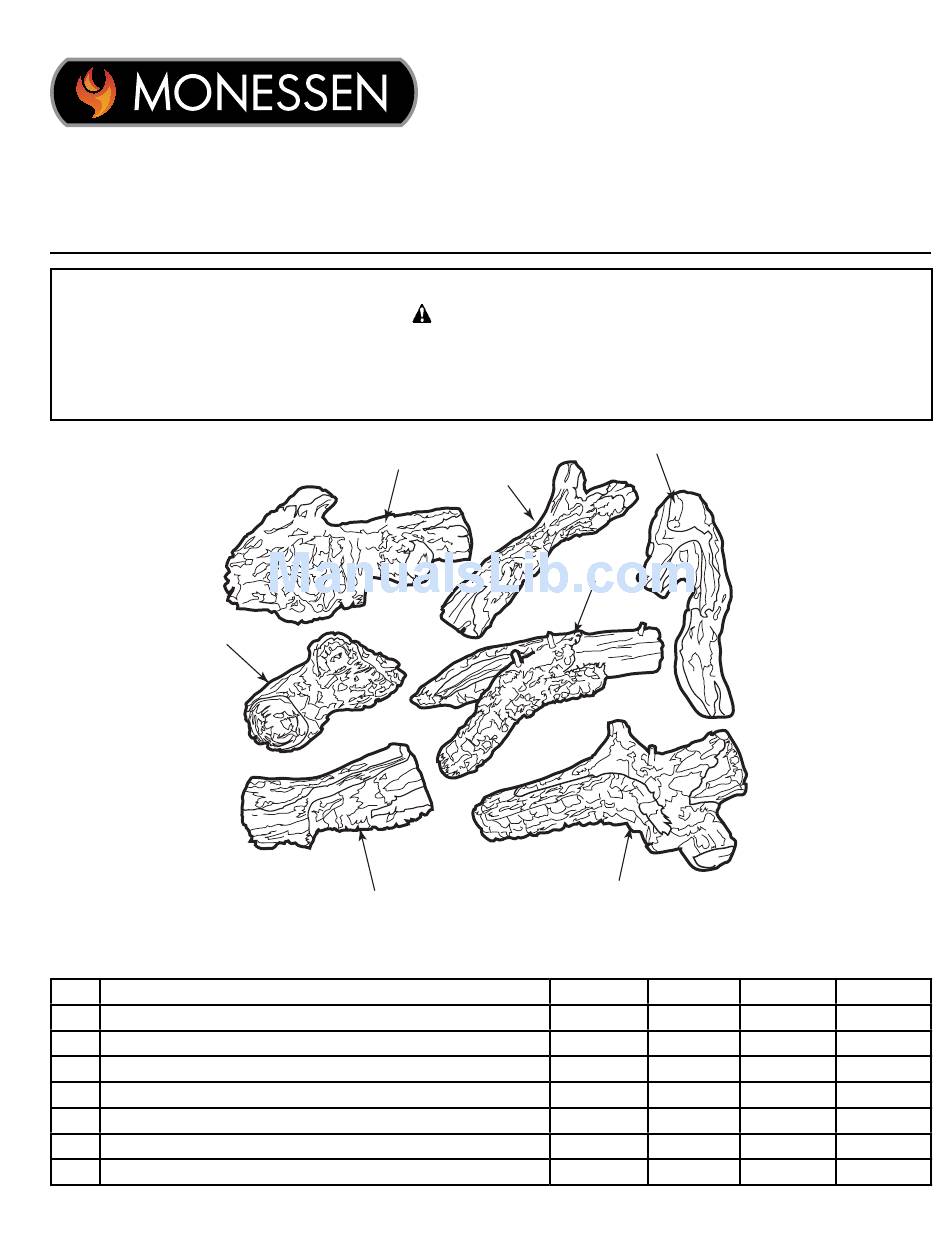

Log Placement Instructions
Models: KW18-R, KW24-R, KW30-R
The positioning of the logs is critical to the safe, clean operation of this gas log set. Sooting and other problems may
result if the logs are not properly positioned per these instructions. Failure to position in accordance with the diagrams
below, or failure to use only parts specifically approved for this log set may result in property damage or personal injury.
5
REF DESCRIPTION
1.
Bottom front right log, #1
2.
Bottom rear right log, #2
3.
Bottom rear left log, #3
4.
Bottom front left log, #4
5.
Center left log, #5
6.
Center top log, #6
7.
Top right log, #7
Monessen • Kentucky Wildwood Installation Instructions • 4604-907 Rev. A • 05/18
WARNING!
3
6
4
810107
KW24 logs
7
2
1
QUANTITY
KW18-R
1
20305902
1
20305903
1
20305904
1
20305905
1
20305906
1
20305907
1
20305908
KW24-R
KW30-R
20305813
20305909
20305814
20305910
20305815
20305911
20305816
20305912
20305817
20305913
20305818
20305914
20305819
20305915
Advertisement
Related Manuals for Monessen Hearth KW24-R
Summary of Contents for Monessen Hearth KW24-R
-
Page 1: Log Placement Instructions
Log Placement Instructions Models: KW18-R, KW24-R, KW30-R WARNING! The positioning of the logs is critical to the safe, clean operation of this gas log set. Sooting and other problems may result if the logs are not properly positioned per these instructions. Failure to position in accordance with the diagrams below, or failure to use only parts specifically approved for this log set may result in property damage or personal injury. - Page 2 KENTUCKY WILDWOOD KW18-R, KW24-R 4. Place bottom front left log #4 on left pin located on burner and left grate bar. Figure 4 AND KW30-R LOG PLACEMENT NOTE: Installation instructions are the same for 18”, 24”, and 30” log sets. Pictures used in this manual illustrate the 24”...
- Page 3 7. Place top right log #7 on the two (2) pins located on log #2 and log #1. Figure 7 Log #7 Figure 7 Monessen, a brand of Hearth & Home Technologies 7571 215th Street West, Lakeville, MN 50044 www.monessenhearth.com Monessen •...
