68 | Interior components diagram

Interior components diagram

12.1 Interior components

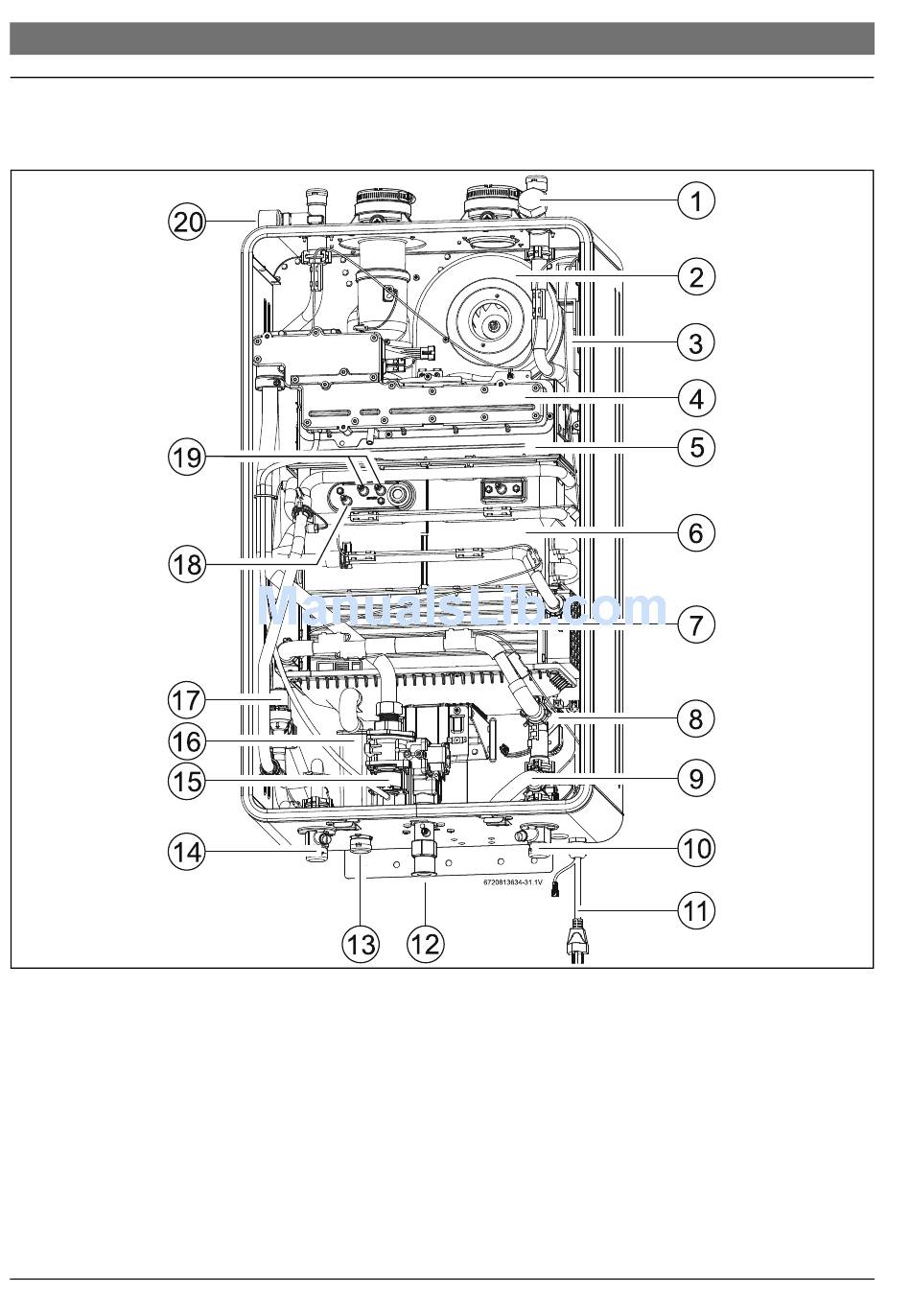

Fig. 64

Interior components

[1] Inlet water filter

[2] Air fan

[3] Control unit

[4] Gas manifold

[5] Burner

[6] Heat exchanger

[7] Condensing unit

[8] Main water valve

[9] By-pass pipe

[10] HE drain

6 720 816 815 (2018/08)

[11] Power cord

[12] Gas connection

[13] Condensate drain

[14] HE drain

[15] Gas valve

[16] Condensate trap

[17] By-pass water valve

[18] Ionization sensor

[19] Ignition electrodes

[20] PRV connection
