Symptom
Continuous slow leak from
downstream regulator
Continuous slow leak from
downstream regulator
Inhalation effort is lower than
specification

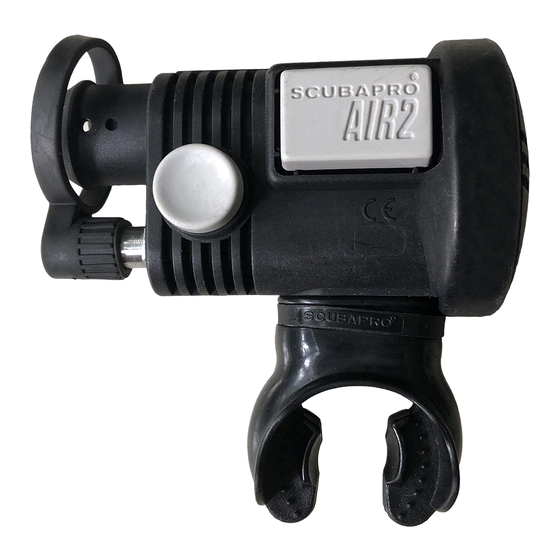

SCUBAPRO AIR 2
Trouble Shooting Guide
Correction
Readjust orifice or nyloc nut
High IP – See first stage trouble shooting
Readjust orifice or nyloc nut
Replace seat, orifice, or spring
Tools Needed
Air 2 Spider Tool
Pneumatic adjustment tool
or IP gauge
Various
13
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Uwatec AIR 2
Summary of Contents for Uwatec AIR 2
- Page 1 Correction Tools Needed Continuous slow leak from Readjust orifice or nyloc nut Replace seat, orifice, or spring Air 2 Spider Tool downstream regulator Continuous slow leak from High IP – See first stage trouble shooting Pneumatic adjustment tool downstream regulator...
- Page 2 SCUBAPRO AIR 2 Trouble Shooting Guide Symptom Correction Tools Needed Inhalation effort is higher Readjust orifice or nyloc nut Use a supply pressure of at least 1500 Various than specification psi/100 bar Violent free flow from Readjust orifice or nyloc nut High IP –...
- Page 3 SCUBAPRO AIR 2 Trouble Shooting Guide Symptom Correction Tools Needed Continuous leak from inflator Replace inflator seat High IP – See first stage trouble shooting Various (continuous BC inflation) guide External leaks from exhaust Replace and/or lubricate inflator o’ring Replace and/or lubricate exhaust stem...
