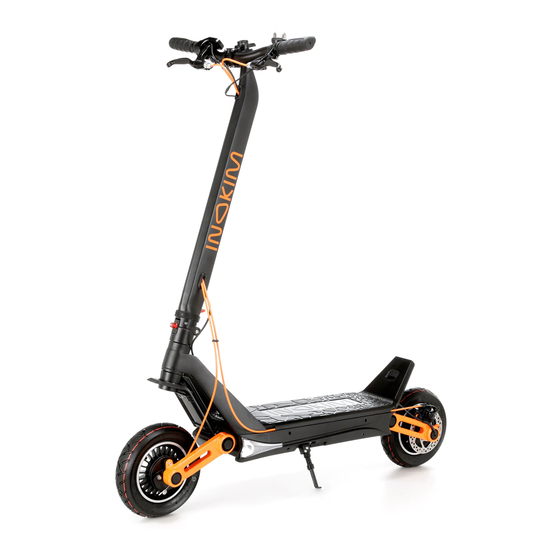

  Summary of Contents for INOKIM OX Super

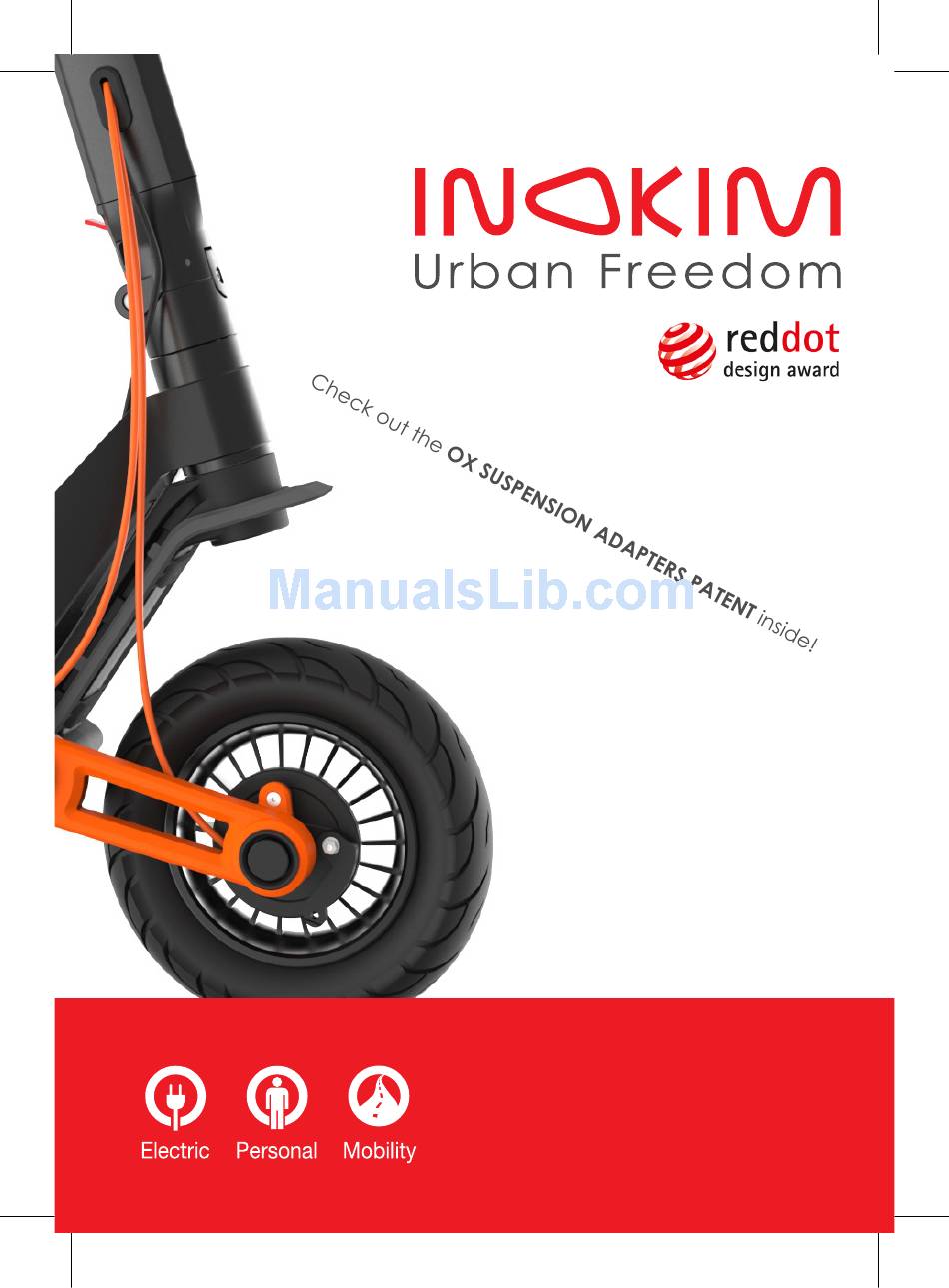

  • Page 1 RIDER GUIDE...
  • Page 3 Congratulations On Your New INOKIM OX! We are happy you chose to ride INOKIM. We hope you find it to be a great riding experience, adding efficiency and fun to your daily commuting. A note from the designer: When I started designing my first electric scooter, I envisioned...
  • Page 4 DISCLAIMER MYWAY NINGBO INTELLIGENT TECHNOLOGY WILL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES CAUSED BY THE USE OR MISUSE OF OUR PRODUCTS. THE USER AGREES TO ACCEPT FULL RESPONSIBILITY FOR ALL SUCH RISKS AND TO NOT HOLD MYWAY NINGBO. IT’S DISTRIBUTORS OR RETAILERS RESPONSIBLE FOR ANY INCIDENT, INJURY TO PERSONS, OR DAMAGE TO PROPERTY CAUSED BY MISUSE OF THE PRODUCT...
  • Page 5: Table Of Contents

    Table of Contents: WHY READ THIS MANUAL? ............2 SAFETY REGULATIONS ..............3 SPECIFICATIONS ................4 UN-BOX YOUR OX! ................. 6 BATTERY ..................8 THROTTLE OPERATION ..............10 DISPLAY MODE SETTINGS ............... 12 THE OX SUSPENSION ADAPTERS PATENT ........14 CAREFUL RIDING ................
  • Page 6: Why Read This Manual

    WHY READ THIS MANUAL? Understanding your new INOKIM’s features, performance, proper use & maintenance, will help you: ENJOY the most from your first and every ride. RIDE SMART For the safety of yourself and your surroundings. MAINTAIN YOUR INOKIM For many years of safe and fun riding.
  • Page 7: Safety Regulations

    Firmly lock the folding lever and check your brakes before every ride. Do not do stunts, wheelies or jumps. They increase your chances of injury and might damage your OX. Do not carry passengers. Make your first ride with INOKIM OX in a remote location, without any obstacles.
  • Page 8: Specifications

    SPECIFICATIONS MODEL OX ( Hero | Super ) Lithium Battery 60V 13AH (Hero) | 60V 21AH (Super) Net Weight (+-0.5 kg) 26 kg (Hero) | 28 kg (Super) Rang (Eco mode) 60 km (Hero) | 110 km (Super) Range (Full speed mode) 50 km (Hero) | 90 km (Super) Eco mode is with constant speed of 15 km/H,Full speed mode is with constant speed of 25 km/H, 75 kg load, in temperature of 25°C, on a...
  • Page 9 WEIGHT RANGE TOP SPEED MAX LOAD CHARGE TIME 26-28 kg 60-110 km 25 km/h 120 kg 8-12.5 hrs. for 57-62 lb 37-68 mi 15.5 mph 267 lb full charge LCD DISPLAY WITH FUNCTIONS AND ILLUMINATION SPEED CONTROL THROTTLE BELL FRONT & REAR BRAKS LEVERS EVA GRIPS LITHIUM ION BATTERY FOLDING MECHANISM...
  • Page 10: Un-Box Your Ox

    UN-BOX YOUR OX! Are you ready to set your OX free? Please follow these instructions: While folded, stand the OX on kickstand. Push down rear end of OX to release the SNAP LOCK. Fasten the RED lever. Set the handle bar in place. Use the hex key (4mm)
  • Page 11 UN-BOX YOUR OX! Adjust the brakes angle according to your height. A good indication for your suited angle is that your wrists are straight when you ride. Connect the rear mudgaurd. Use hex key (5mm) When folding simply snap the steering rod into place. If the SNAP LOCK of your OX is too loose / tight, you can fine-tune it by adjusting the...
  • Page 12: Battery

    BATTERY Your OX has a Lithium Battery with an external charger. When charging, connect the charging cable in this order: FIRST to INOKIM’s charging socket THEN to the electrical outlet. Charging Indication: RED light - Battery charging... GREEN light- Charging complete MAXIMIZE YOUR BATTERY’S PERFORMANCE:...
  • Page 13 Exposure to the battery voltage can cause death or serious injury. Unplug the battery from the outlet before performing any maintenance. It is dangerous to work on an INOKIM Scooter when plugged into an electrical outlet. Electrical shock can cause serious injury and damage the scooter.
  • Page 14: Throttle Operation

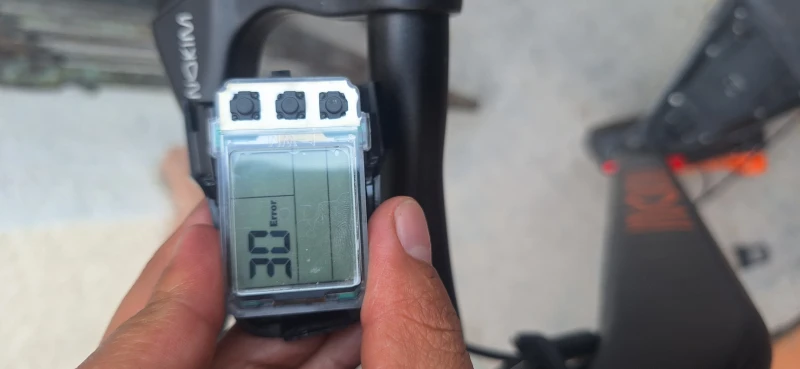

    THROTTLE OPERATION LCD DISPLAY THROTTLE BUTTONS INTRODUCTION Button ON/OFF button Button ACCELERATE thumb button WAITE UNTIL LCD DISPLAY STOPS FLASHING BEFORE YOU START RIDING.
  • Page 15 THROTTLE OPERATION POWER ON To power the scooter on: press Waite until LCD display stops flashing before you start riding. POWER OFF To shut down the system: press for three seconds AUTO OFF After 10 minutes of not using any function, the scooter will automatically shut down.
  • Page 16: Display Mode Settings

    DISPLAY MODE SETTINGS Navigate easily through the settings: Enter settings (mode1): Press together for 2 seconds. Switch between modes: Press Return to main function menu: Long press LCD BACK-LIGHT There are 3 levels for LCD brightness: low/middle/high. Mode 1 To change level from 1 to 3: Press Long press to save setting.
  • Page 17 DISPLAY MODE SETTINGS WARNING Please be aware that when using Cruise Control, RELEASING YOUR THUMB FROM THE THROTTLE WILL NOT SLOW YOU DOWN!!! You may find yourself in danger or dangering others. Your 2 ways to exit Cruise Control: • Brake with the LEFT or RIGHT brake lever (both work). •...
  • Page 18: The Ox Suspension Adapters Patent

    THE OX SUSPENSION ADAPTERS PATENT The OX has a unique patent on the adjustable suspension system. The OX Suspension Adapter Patent : OSAP The OSAP allows you to alternate the suspension position: LOW POSITION is the default, for better stability mainly at higher speeds. HIGH POSITION, is for larger suspension travel, mainly in rough terrain WHEN REPLACING THE OSAP PAY ATTENTION: Don’t remove the wheel from it’s hinge.
  • Page 19 REPLACING OSAP FROM LOW TO HIGH In order to turn your OX into HIGH POSITION use the HIGH POSITION kit: It is recommended that you place the OX on an uplifted surface such as a chair or a box, so that the main body is firmly set on the surface and the two wheels are in the air.
  • Page 20: Careful Riding

    CAREFUL RIDING Get to know your OX before driving it. Test your control over it. Make your turns slowly and cautiously, and give yourself stopping distance. To gain control over your scooter, practice your first ride on OX in an open space with no obstacles to disturb you.
  • Page 21 70-90°, like on skate/ surfboard). It will help you gain more stability. Turns - The turns on INOKIM are done as on surf/ski/snowboard. The han- dlebar should be in parallel to the body. Before turning look at the ap- proaching direction and make sure turning is safe.
  • Page 22: Folding Mechanism Adjustment

    FOLDING MECHANISM ADJUSTMENT If the folding mechanism is too loose or too tight, you can adjust it. The Tools you’ll need: Hex key 4mm Wrenches 8mm 10mm The adjustments needed are VERY small. Work sensitively, be patient and you’ll get it right! To Tighten: 1.
  • Page 23: Serial Number

    SERIAL NUMBER Each INOKIM has a unique serial number. These numbers can provide information that may be useful later on for insurance claims and in case of loss or theft. Write down the serial number of your OX scooter. Keep this information separately and in a safe place!
  • Page 24 Join / create INOKIM RIDERS in your city! OPERATION & MANAGEMENT NINGBO MYWAY INTELLIGENT TECHNOLOGY CO.,LTD. 17# PUTUOSHAN ROAD, BEILUN, NINGBO, ZHEJIANG PROVINCE, CHINA 315806 WWW.INOKIM.COM | GLOBAL@INOKIM.COM...
  • Page 26 LIKE A STAR Send us a pic of YOU & YOUR INOKIM We’ll make it into a SHINING poster. By the end of the year the one who has the most likes wins a S * U * P * R * I * Z * E...

This manual is also suitable for:

Ox hero
