USER GUIDE MANUAL
MODEL : LIGHT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIGHT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for INOKIM LIGHT

Summary of Contents for INOKIM LIGHT

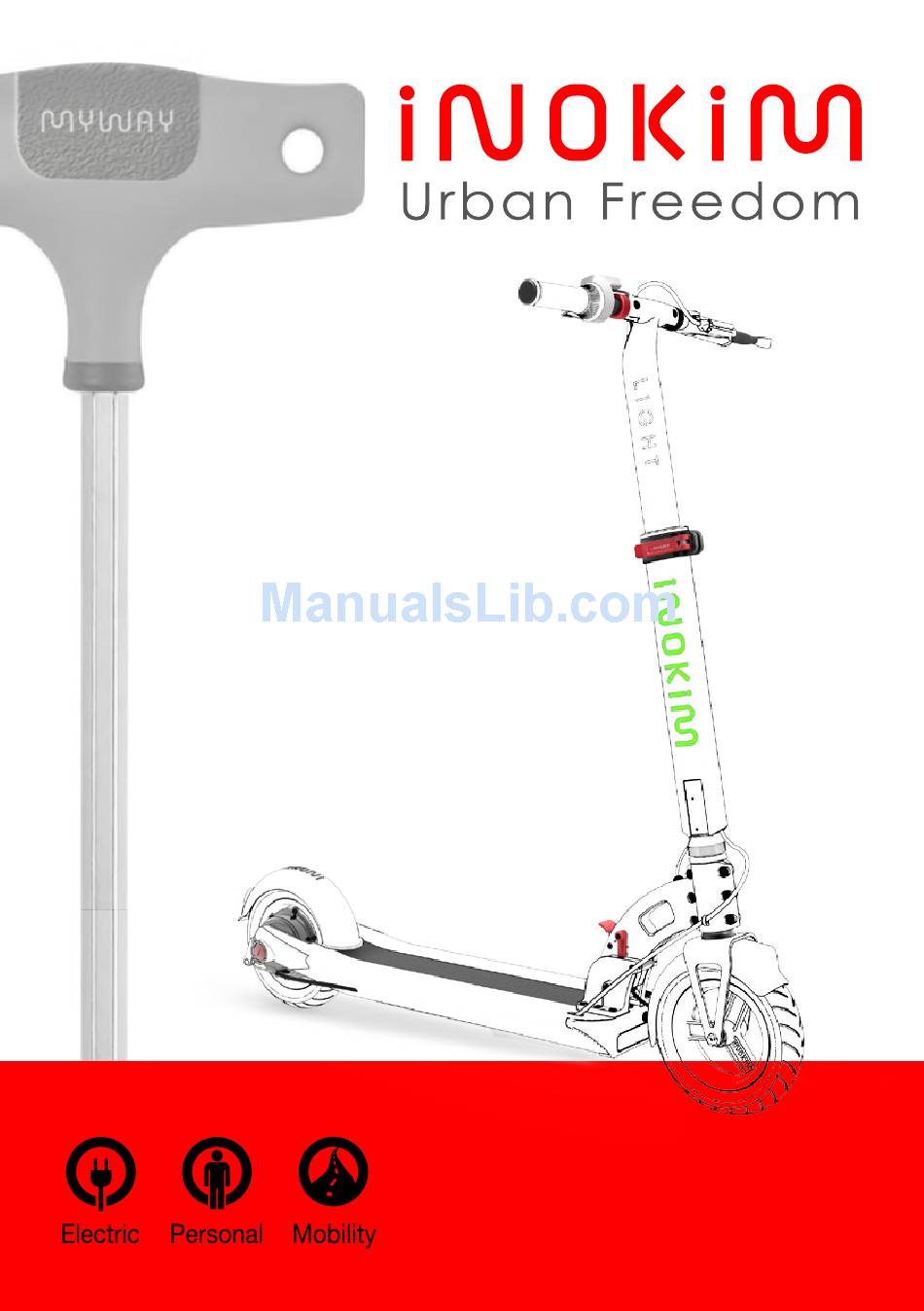

  • Page 1 USER GUIDE MANUAL MODEL : LIGHT...

  • Page 2: Table Of Contents

    Table of Contents: LIGHT LIGHT Features ..………..….……………………………….….……3 LIGHT Main Parts ...................4-5 Warnings & General information ..………..…....………...…6-7 Serial Number ……………………….……..……………….………………...8 Opening & Folding LIGHT ...…..…………..……...…..…...….…….9-15 Operation ..……………………………………………………………..…16 Charging & Battery ...……………………………………….….…..………17 THROTTLE ....................18-21 Safety / Tires air pressure ………...….………………….………..…..22 Driving Technique .....…….…..…………...……..…....23-24 LIGHT Maintenance ................25...

  • Page 3: Light Features

    LIGHT APPEARANCE LIGHT FEATURES LCD SCREEN MULTYFUNCTIONAL THROTTLE BATTERY INDICATOR EVA GRIPS MAIN FOLDING FOLDING T-BAR MECHANISM REAR DISC BRAKE LEVER SAFETY LOCK QUICK RELEASE WITH SAFETY LOCK POSITION SELF LOCKING RELEASE PEDAL LITHIUM ION BATTERY 36V-9Ah ALUMINUM DECK ORIGINAL ALLOY...

  • Page 4: Light Main Parts

    LIGHT MAIN PARTS LIGHT MAIN PARTS QUICK FOLDING MECHANISM MAINTENANCE PLASTIC COVER SPEED CONTROL THROTTLE INOKIM WHEEL ELECTRIC MOTOR WITH LCD DISPLAY AND FUNCTIONS SELF LOCKING / RELEASE BUTTON ALUMINIUM DECK WITH ANTI SKID GRIP FOLDED POSITION BATTERY CHARGER CONNECTOR...

  • Page 5: Warnings & General Information

    BEFORE RIDING: Also, it is important that your first ride with INOKIM LIGHT will be in a remote location, without any obstacles. Ensure that the Floding Lever is of the folding mechanism is firmly locking the folding mechanism and that Safty Lock is on.

  • Page 6: Serial Number

    SERIAL NUMBER RECORD SERIAL NUMBERS: Write down the serial number of your LIGHT scooter. Keep this information separately and in a safe place. Each INOKIM has a unique serial number. These numbers can provide information that may be useful later on for insurance claims and in case of loss or theft.

  • Page 7: Opening & Folding Light

    OPENING LIGHT OPENING LIGHT STEP 1 STEP 3 Press down the Pedal using your hand Unfold handlebars and lock them with the side rings See tightening direction Self Locking Pedal Open the quick release and slide STEP 4 the steering rod up to its locking position...
  • Page 8 OPENING LIGHT OPENING LIGHT Last step is to ensure SAFETY LOCK STEP 5 Kickstand position is securing the FOLDING MECHANISM Folding mechanism at Kickstand possition SAFETY lock possitions...
  • Page 9 Push pedal down using your foot STEP 3 NOTICE: INOKIM LIGHT has a unique folding mechanism, which enables a quick and easy fold for carrying, transportation and storage.

  • Page 10: Operation

    INOKIM's charging socket on top of footboard, on the left • Do not store INOKIM for long terms (more than two months) with fully front side. charged battery, If Scooter is not in use for more then one month Than connect the chargers electric cable to an electrical outlet.

  • Page 11: Throttle

    Press for three seconds to shut down the system. • battery status • speed mode • Total trip • background light • automatic power-off • ODO THROTTLE BUTTONS INTRODUCTION AUTO POWER OFF After five minutes of non using any function, the scooter will automatically shut down.

  • Page 12: Throttle

    THROTTLE OPERATION THROTTLE OPERATION DISPLAY MODES SPEED MODE • When power is on CRUISE CONTROL (third mode) SPEED the default display is mode (appear at top right). The default setting is Cruise Control off (letter "n" for No Cruise Control to You may change it using the buttons.

  • Page 13: Safety / Tires Air Pressure

    This could have been prevented if a helmet had been worn. To start riding boost yourself forwards (as on non-motorized scooters) You must wear a helmet while riding your LIGHT - 2 . The helmet must be with your foot that is on the ground.

  • Page 14: Light Maintenance

    DRIVING TECHNIQUE DRIVING TECHNIQUE: Turns - The turns on INOKIM are done as on surf/ski/snowboard. The handlebar should be in parallel to the body. Before turning look at the approaching direction and make sure turning is safe. IN OK IM LIG HT MAINTE NANCE...
  • Page 15 REQUIRED TOOLS We want our users to be confident that they can unfold and use INOKIM LIGHT or fold and store it within seconds. We wish one will not hesitate on keeping INOKIM on here/his car trunk...
  • Page 16 INOKIM LIGHT MAINTENANCE INOKIM LIGHT MAINTENANCE Adjustment of folding mechanism For more rigid feel: Use Ellen Key number ___ to release tension on both sides of M4 screws as shown on Figure 1 Then use Ellen Key number ___ and gently tight both screws as shown on Figure...
  • Page 17 INOKIM LIGHT MAINTENANCE INOKIM LIGHT MAINTENANCE To get access to the rear wheel, motor and connectors, Use a coin and unscrew the special locker lid, then remove rear plastic covers...
  • Page 18 A word from the designer Congratulation on your new INOKIM LIGHT purchase. When I started the design of MYWAY / INOKIM I envisioned a world where leaving your car behind would be an easy decision. After six years of design and development, four years of sales of...
  • Page 19 OPERATION & MANAGEMENT NINGBO MYWAY MACHINERY CO.,LTD NO.22-1,INDUSTRIAL ZONE,XIAN FENG VILLAGE,BEILUN DIST 315806 P.R. CHINA WWW.INOKIM.COM | DAISY@INOKIM.CN...
