Summary of Contents for INOKIM QUICK 2

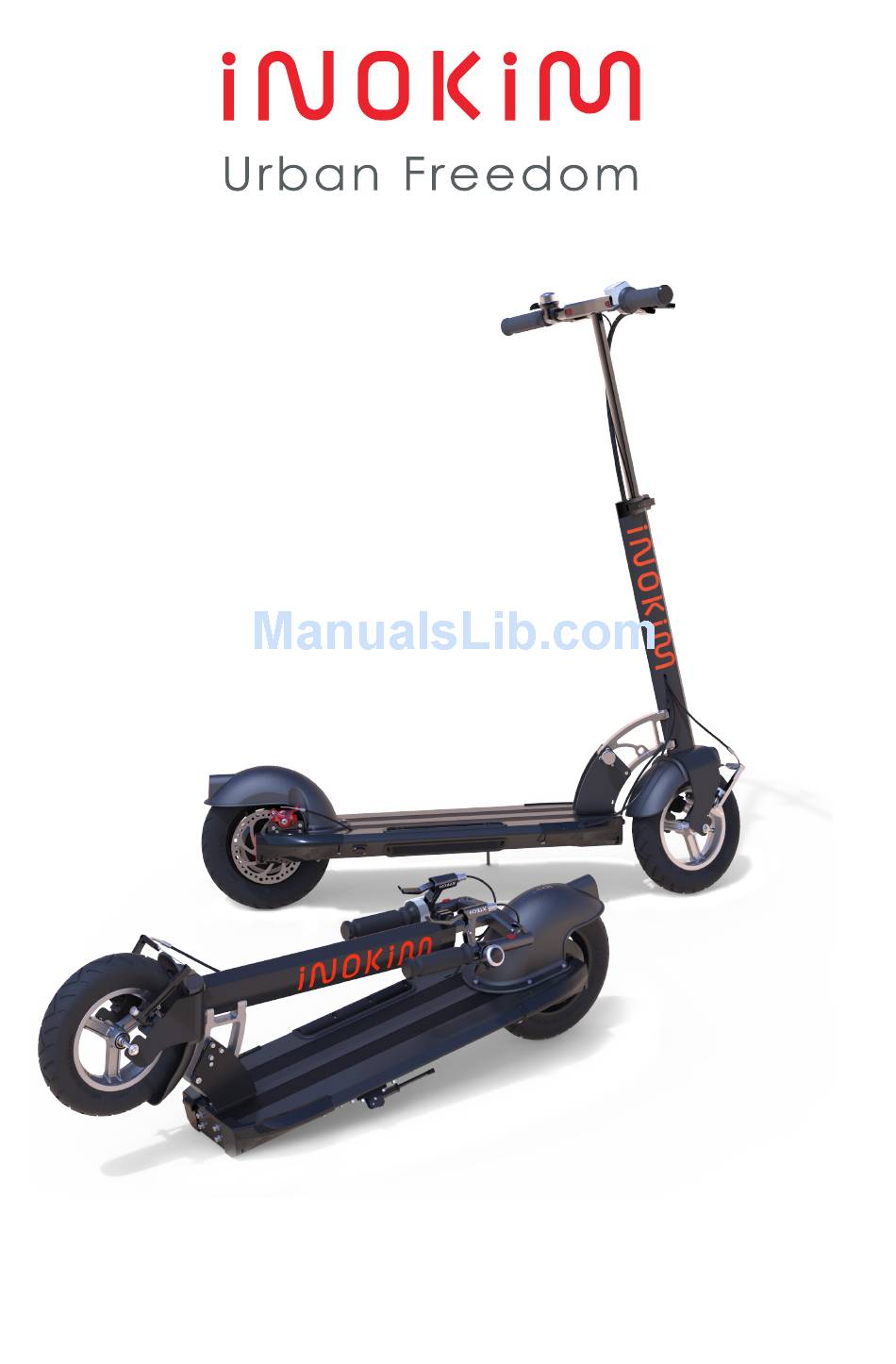

- Page 1 MODEL : QUICK 2 USER GUIDE MANUAL...
- Page 2 EN 6100-6-3:2007 + A1 EN 6100-6-1:2007...
-
Page 3: Table Of Contents
Table of Contents: QUICK - 2 Features ..…..…………..….……………………………….………3 QUICK - 2 Main Parts ..................4-5 Warnings & General information ..………..………..……..………...…6-7 Serial Number ……………………….……..…………………..…………………...8 Opening & Folding QUICK - 2 ...………………………..……...…..………….9-15 Operation ..………………………………………………………………………..…16 Charging & Battery ..……………………………………………….….…..………17 THROTTLE ......................18-21 Safety / Tires air pressure …..……………...….…………………………..…..22 Driving Technique ..……………………..…………...……..…....23-24 QUICK - 2 Quick Maintenance ................25 Flat Tire Repair Instruction ..……………………..…………..………..…27-35... - Page 4 QUICK 2 APPEARANCE...
-
Page 5: Quick 2 Features
QUICK 2 FEATURES * FOLDING TBAR * NEW THROTTLE with lcd display and functions BELL REAR DISC BRAKE LEVER QUICK FOLDING MECHANISM EVA GRIPS FRONT BRAKE LEVER SELF LOCKING / RELEASE BUTTON HEIGHT ADJUSTABLE HANDLEBARS LITHIUM ION BATTERY 36V-9Ah QUICK RELEASE... -
Page 6: Quick 2 Main Parts
QUICK 2 MAIN PARTS QUICK FOLDING MECHANISM INOKIM WHEEL MOTOR SELF LOCKING / RELEASE M BUTTON ALUMINIUM DECK WITH CARRY HANDLE + ANTI SKID GRIPS REAR DISC BRAKE BATTERY CHARGER CONNECTOR... -
Page 7: Quick - 2 Main Parts
QUICK 2 MAIN PARTS MAINTENANCE PLASTIC COVER SPEED CONTROL THROTTLE WITH LCD DISPLAY FRONT BRAKE LEVER / REAR DISC BRAKE LEVER QUICK RELEASE KICKSTAND... -
Page 8: Warnings & General Information
Also, it is important that your first ride with INOKIM will be in a remote location, without any obstacles. INOKIM needs a short period for all moving parts such as hinges and brakes to adjust themselves into their correct position. -
Page 9: Warnings & General Information
WARNINGS & GENERAL INFORMATION PLEASE NOTICE INOKIM is not liable for incidental damages or consequential damages due directly or indirectly to the use of this product. BEFORE RIDING: Ensure that the M button is inserted all the way in to the middle folding mechanism/bridge. -
Page 10: Serial Number
SERIAL NUMBER RECORD SERIAL NUMBERS: Write down the serial number of your INOKIM. Keep this information separately and in a safe place. Each INOKIM has a unique serial number. These numbers can provide information that may be useful later on for insurance claims and in case of loss or theft. -
Page 11: Opening & Folding Quick - 2
O P ENING A ND F OL D IN G IN O KI M... - Page 12 At the right point of no pressure the mechanism will be released and the M button will come out easily. That will enable the folding of the handlebar. INOKIM's patent for quick and steady locking is based on exact pressures.
- Page 13 OPENING INOKIM STEP 2 A. Unfold firmly for locking the folding mechanism B. Visually check that M BUTTON is inserted all the way in CLICK STEP 3 Unfold T-Bar NOTICE: Before driving you must ensure that the M button is inserted all the way in to the central folding mechanism.
- Page 14 OPENING INOKIM STEP 4 Use your thumbs to help red buttons to get in and out their place in the foldable T-bar...
- Page 15 OPENING INOKIM STEP 5 A. Open Quick Release B. Pull Handle bar up to adjust height C. Lock Quick Release...
- Page 16 FOLDING QUICK - 2 STEP 1 The telescopic steering rod: Start by opening the quick release, slide the top steering rod into the main steering rod (where the INOKIM logo is written) and lock the Quick Release. A. Open Quick Release B.
- Page 17 A. Push Steering pole Forward B. Pull Out M Button C. Fold back the Steering Part until it's locked in it's place You may fold INOKIM more compact by folding T-bar as well at any stage of the folding process.
-
Page 18: Operation
• knowledge (full /empty) and does not give a precise indication to the battery status. Do not store INOKIM for long terms (more than two months) with fully • charged battery. From time to time Discharge the battery by riding INOKIM in the red •... -
Page 19: Charging & Battery
OPERATION CHARGING AND BATTERY: Your INOKIM has an external charger. Connect the charging cable to INOKIM's charging socket under the footboard, on the right side at the rear. Than connect the chargers electric cable to an electrical outlet. Charging Light Red - Battery is charging. -
Page 20: Throttle
THROTTLE OPERATION LCD DISPLAY THROTTLE FUNCTIONS • travel speed • cruise control • distance • battery status • speed mode • Total trip • background light • automatic power-off • ODO THROTTLE BUTTONS INTRODUCTION button ON/OFF button button ACCELERATE thumb button... - Page 21 THROTTLE OPERATION THROTTLE POWER ON Pressing to power the scooter on. THROTTLE POWER OFF Press for three seconds to shut down the system. AUTO OFF After five minutes of non using any function, the scooter will automatically shut down. DRIVE / SPEED CONTROL Start twisting the thumb throttle with your thumb for accelerating.
- Page 22 THROTTLE OPERATION SPEED MODE When power on SPEED the default display is mode (appear at top right). You may change it using the buttons. Speed mode: this function is to limit the maximum speed of the scooter, either for a beginner user or for more accurate riding in a crowded surrounding: •...
-
Page 23: Throttle
THROTTLE OPERATION DISPLAY MODES • CRUISE CONTROL (third mode) The default setting is Cruise Control off (letter "n" to indicate). Press to choose enable Cruise Control (Letter "Y" to indicate). Long touch to save setting. Short touch to enter first mode. •... -
Page 24: Safety / Tires Air Pressure
SAFETY WARNING ! Certain countries or regions require safety devices or gear. It is your responsibility to know the state laws, and follow them. TIRES AIR PRESSURE Air pressure in tires: 40psi to 50psi. SAFETY GEAR Helmet: most serious injuries that occur while riding are head injuries. This could have been prevented if a helmet had been worn. -
Page 25: Driving Technique
It will help you gain more stability. NOTICE Riding, like most sports, involves risks of injury and damage. By choosing to ride INOKIM the responsibility and all inherent risk is on you. It is crucial that you know, understand and act according to safety rules. - Page 26 DRIVING TECHNIQUE DRIVING TECHNIQUE: Turns - The turns on INOKIM are done as on surf/ski/snowboard. The handlebar should be in parallel to the body. Before turning look at the approaching direction and make sure turning is safe. Braking - Tilt your weight backwards so that the brake action will come through the feet and not trough the handlebar and steering system.
-
Page 27: Quick - 2 Quick Maintenance
I NOK IM Q UICK M AI N TE N A NCE... - Page 28 INOKIM QUICK MAINTENANCE INOKIM was assembled by professional people. Any attempt to independently fix or change INOKIM or parts of it in any way, will cause damage to the INOKIM "Quick" E-Scooter, and will cancel the manufacturer warranty given upon delivery.
-
Page 29: Flat Tire Repair Instruction
INOKIM REAR FLAT TIRE REPAIR 1. Make sure the INOKIM is unplugged and powered off. 2. Place INOKIM on a high stable surface where it's placed only on its body, so that rear and front wheels will be in the air. -
Page 30: Removing Rear Plastic Covers
INOKIM REAR FLAT TIRE REPAIR OPEN BOTH REAR PLASTIC COVERS Use 3 mm Allen key Always slide plastic cover aligned with QUICK-2 body lines as shown with blue arrow. Do not pull the covers as shown with the red arrow. -
Page 31: Disconnecting Motor Connectors
INOKIM REAR FLAT TIRE REPAIR IMPORTANT NOTE When assembling the motor back, note the arrows on both plugs, make sure they are aligned or you may damage the connector Gently, unplug the motor connector... -
Page 32: Removing Rear Motorized Wheel
INOKIM REAR FLAT TIRE REPAIR DISASSEMBLE MOTOR WHEEL Use 19mm ring key to open nuts Remove the washer Disassemble nuts and washers from both sides... - Page 33 INOKIM REAR FLAT TIRE REPAIR DISASSEMBLE MOTOR WHEEL Carefully slide out the Motor wheel DON'T PLACE MOTOR ON THE FLOOR WITH ROTOR (DISC BRAKE) TOUCHING THE GROUND, TO PREVENT IT FROM BENDING!
-
Page 34: Replacing Flat Tyre Tube
INOKIM REAR FLAT TIRE REPAIR REPLACING A TUBE Start next to the air valve. Use professional levers to dismount flat tire from Wheel Motor Rim Be careful not to damage the motor! Slowly open about 1/4 of the Tire using... - Page 35 INOKIM REAR FLAT TIRE REPAIR REPLACING A TUBE Remove inner tube to fix or replace it if needed Place tire back on rim using your hands only (You can use lubricant such as soap to ease this operation) DO NOT USE ANY TOOLS FOR PLACING BACK...
-
Page 36: Reassembling Rear Wheel
INOKIM REAR FLAT TIRE REPAIR PLACING THE MOTOR WHEEL BACK Slide back Motor. Check right order of washers at both sides! Note inner washers are in place Note external washer with lug is in correct slot! Safety extension lock of the washer must... -
Page 37: Plastic Covers Assembly
INOKIM REAR FLAT TIRE REPAIR PLASTIC COVER ASSEMBLY Align plastic cover lines to INOKIM body lines Slide in plastic cover Both corners of Aluminium and plastic should be aligned The body construction rail is showing through the slot of the plastic... - Page 38 A WORD FROM THE DESIGNER Congratulation on your new purchase. When I started the design of MYWAY / INOKIM I envisioned a world where leaving your car behind would be an easy decision. After three years of design and development, focusing on every detail, the INOKIM Quick 2 offers no compromises;...
- Page 40 OPERATION & MANAGEMENT NINGBO MYWAY MACHINERY CO.,LTD NO.22-1,INDUSTRIAL ZONE,XIAN FENG VILLAGE,BEILUN DIST 315806 P.R. CHINA WWW.INOKIM.COM | DAISY@INOKIM.CN...
